Rear Side Impact Sensor

SRS CONTROL SYSTEM

REAR SIDE IMPACT SENSOR

REMOVAL
1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
2. Remove the rear seat.
3. Remove the Luggage side trim.
4. Disconnect the side impact sensor connector.

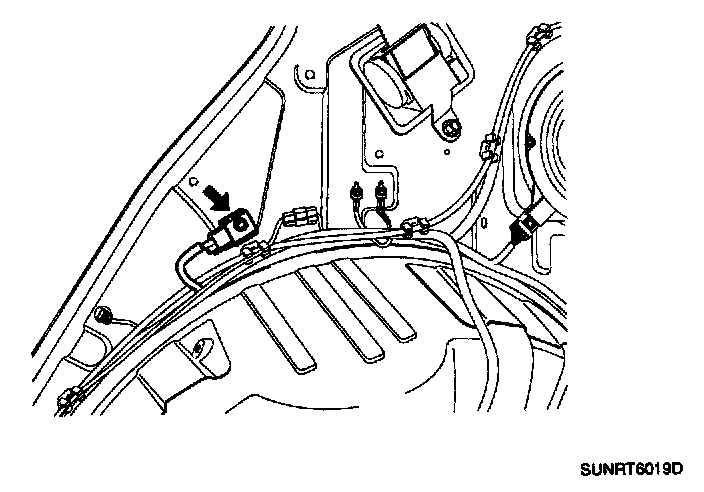

5. Loosen the side impact sensor mounting bolt and remove the side impact sensor.

INSTALLATION

CAUTION: Do not turn the ignition switch ON and do not connect the battery cable while replacing the side impact sensor.

1. Install the new Side Impact Sensor with the bolt then connect the SRS harness connector to the Side Impact Sensor.

Tightening torque: 0.7 - 0.9 kgf.m (6.8 - 9.2 Nm, 5.0 - 6.8 lb.ft)

2. Install the Luggage side trim.
3. Install the rear seat.
4. Reconnect the battery negative cable.
5. After installing the Side Impact Sensor, confirm proper system operation: Turn the ignition switch ON, the SRS indicator light should be turned on for about six seconds and then go off.
