Third Seat Belt Replacement

THIRD SEAT BELT REPLACEMENT

CAUTION: When Installing the belt, make sure not to damaged the pretensioner.

1. Remove the following items first.
- Third seat assembly.
- Rear door scuff trim.

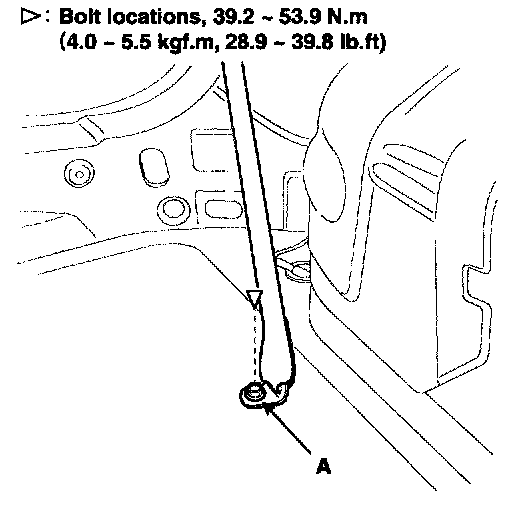

2. Remove the lower anchor (A).






3. Remove the luggage side trim.

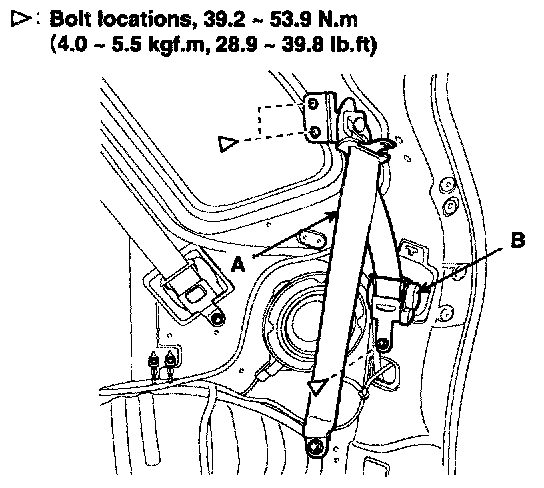

4. After loosening the retractor (B) mounting bolt, remove the rear seat belt.






5. Installation is the reverse of removal.
