Secondary Seat Belt Replacement

SECONDARY SEAT BELT REPLACEMENT

CAUTION: When Installing the belt, make sure not to damaged the pretensioner.

1. Remove the following items first.
- Rear seat assembly.
- Rear door scuff trim.

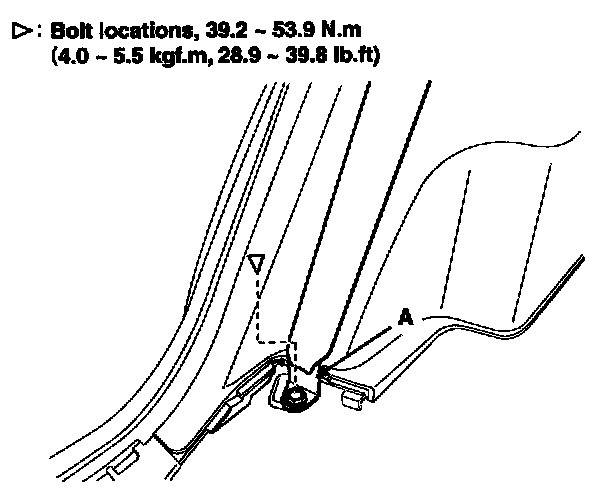

2. Remove the lower anchor (A).






3. Remove the luggage side trim.
4. Remove the gate pillar trim.

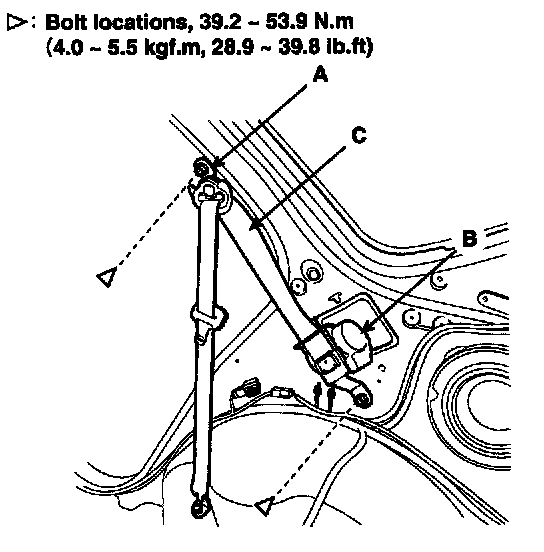

5. Remove the upper anchor (A).
6. After loosening the retractor (B) mounting bolt, then remove the rear seat belt (C).






7. Installation is the reverse of removal.
