Front Seat Belt Replacement

FRONT SEAT BELT REPLACEMENT

CAUTION: When installing the belt, make sure not to damage the pretensioner.

1. Remove the following items fist.
- Front seat assembly.
- Door scuff trim.

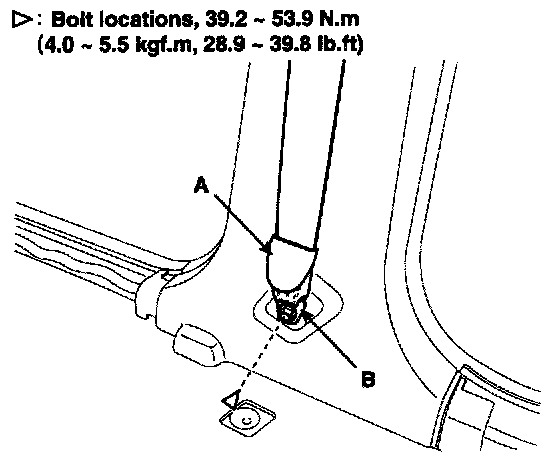

2. After raiseing the lower anchor cover (A), loosen the lower anchor mounting bolt (B).






3. Remove the center pillar lower trim.
4. Remove the center pillar upper trim.
5. Remove the upper anchor (A).
6. After disconnecting the pre-tensioner connector lock pin, remove the connector (B), Loosen the mounting bolt, then remove the pretensioner (C).






7. Installation is the reverse of removal.
