Seat Belt Height Adjuster: Service and Repair

HEIGHT ADJUSTER REPLACEMENT

1. Remove the following items first.
- Front seat assembly.
- Door scuff trim.
- Front seat belt.
- Center pillar trim.

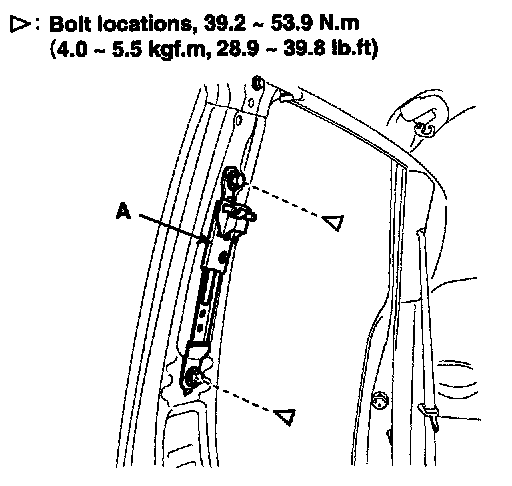

2. After loosening the mounting bolt, then remove the height adjuster (A).






3. Installation is the reverse of removal.
