Fuel Filler Neck: Service and Repair

FILLER-NECK ASSEMBLY

REMOVAL

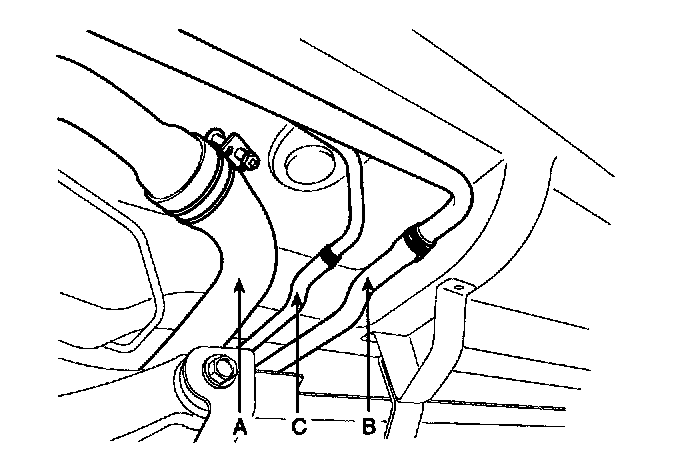

1. Disconnect the fuel filler hose (A), the leveling (B) and the vapor hose (C).




2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).
3. Remove the rear-LH wheel, tire, and the inner wheel house.

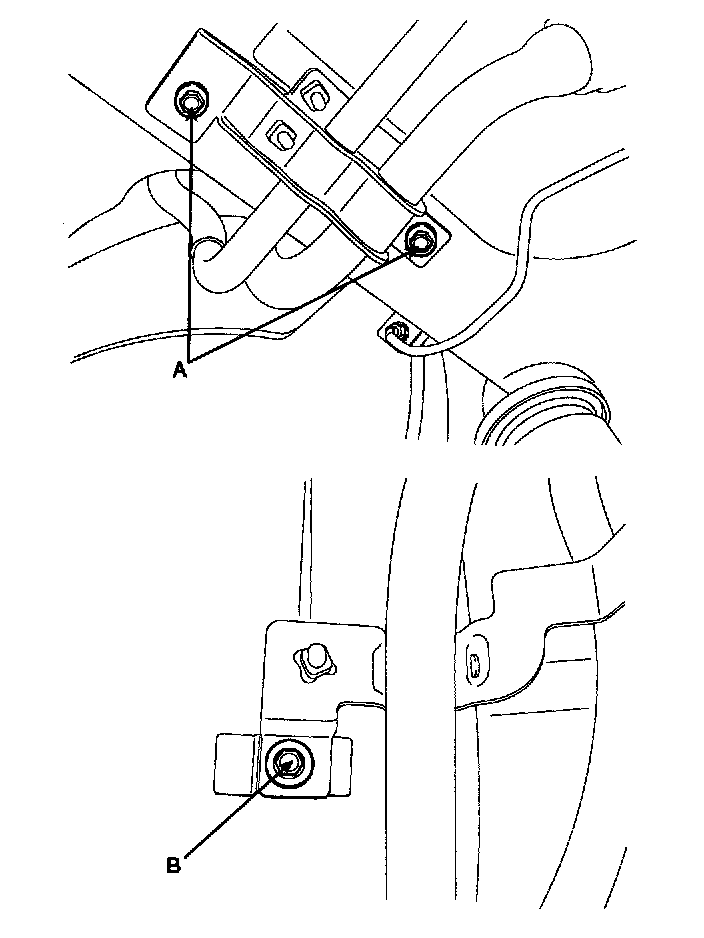

4. Remove the bracket mounting bolts (A,B) and remove the filler-neck assembly.

INSTALLATION
1. Installation is reverse of removal.
