Replacement Procedure 4
Replacement Procedure 4: Amanti (GH) Stop Lamp Switch 93810 3K400QQK1. Inspection Procedure - Amanti:

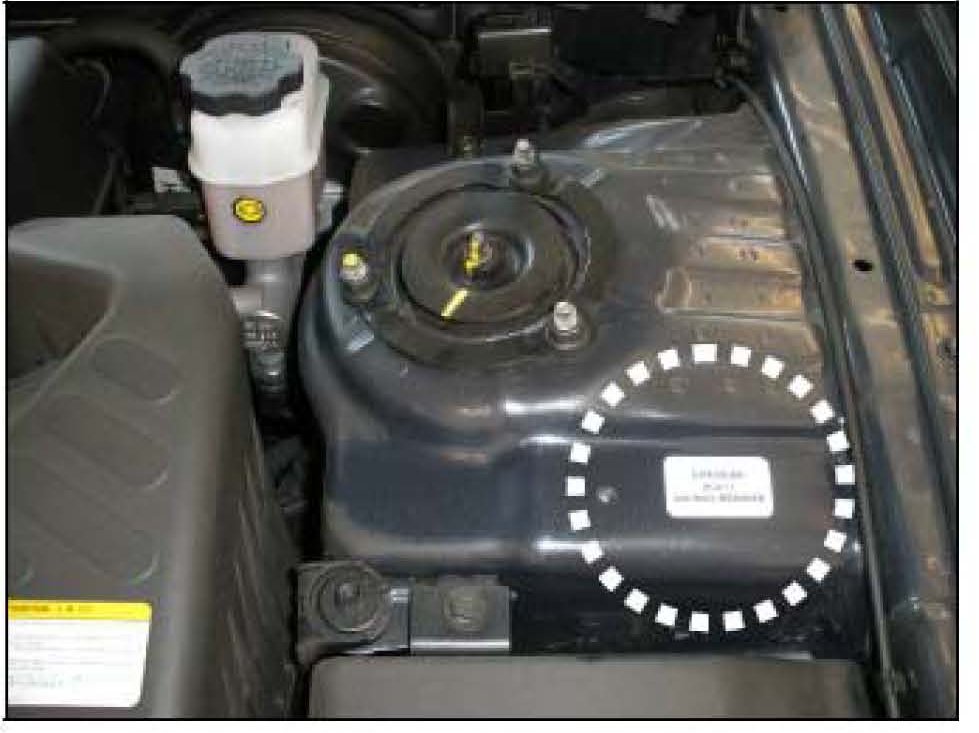

Open the hood and check for a campaign completion label on the driver's side strut tower.
If label exists, NO FURTHER ACTION IS REQUIRED.
If label does not exist, VERIFY SC077 HAS NOT BEEN DONE on WebDCS before continuing to step two (2) of this procedure.

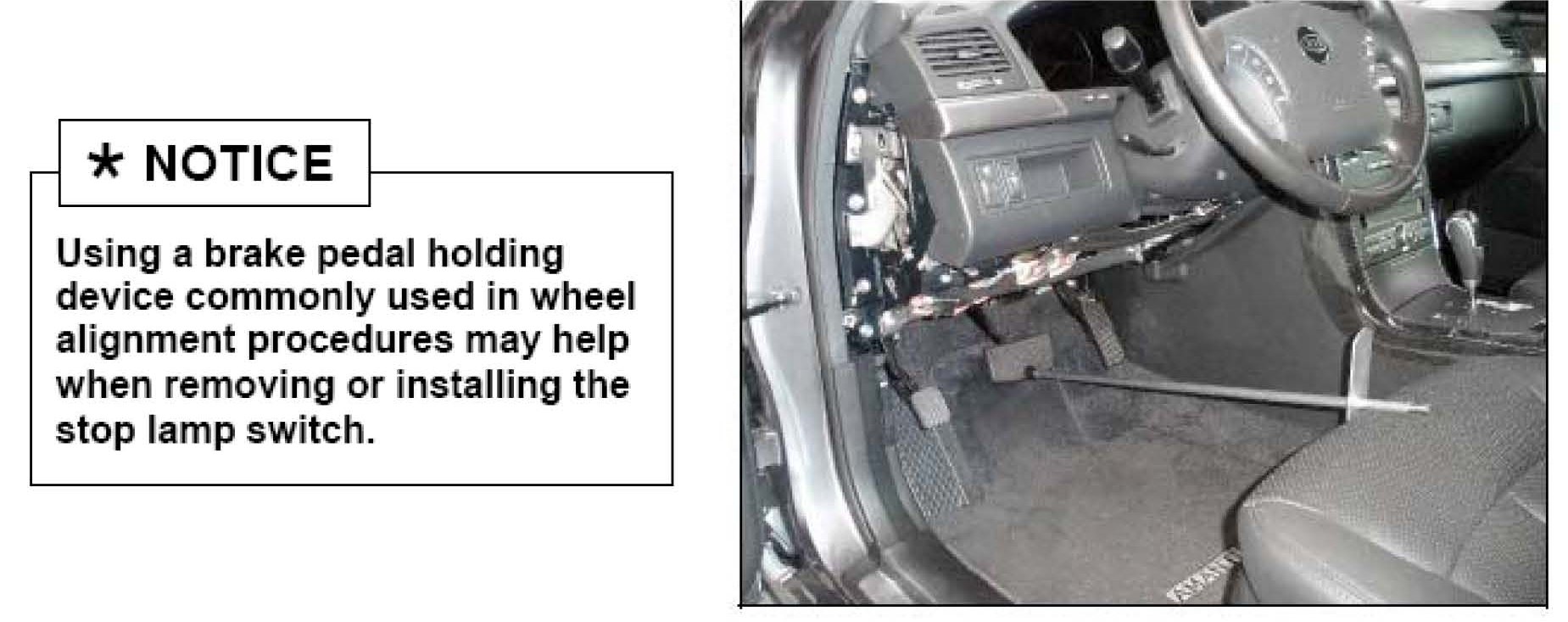

NOTICE

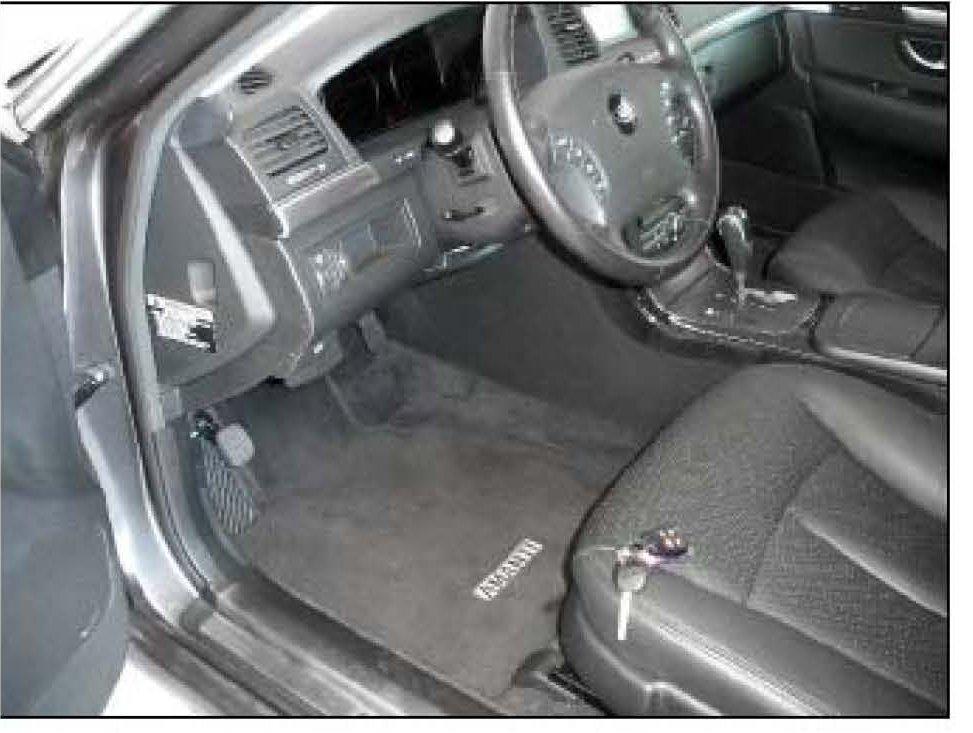

2. Slide the drivers seat all the way rearward.
Turn the ignition key to the OFF position and remove the ignition key.

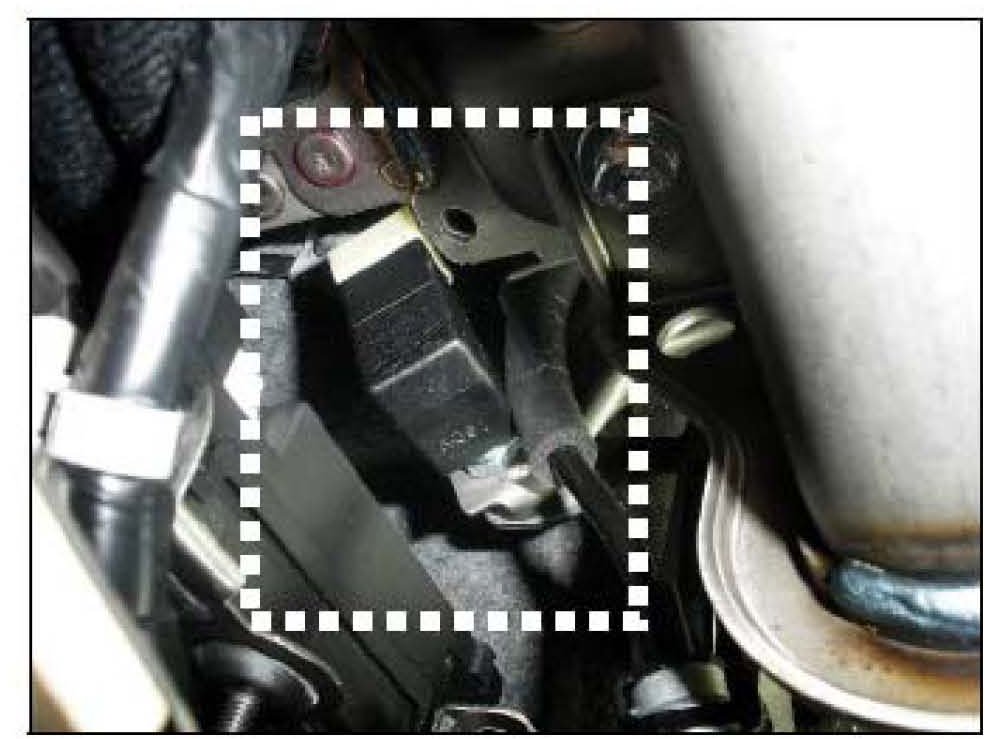

3. From underneath the dash area, locate the stop lamp switch to the left of the steering column.
Disconnect the wiring, and then remove the nuts holding the stop lamp switch assembly.
Remove the original stop lamp switch assembly.
NOTICE

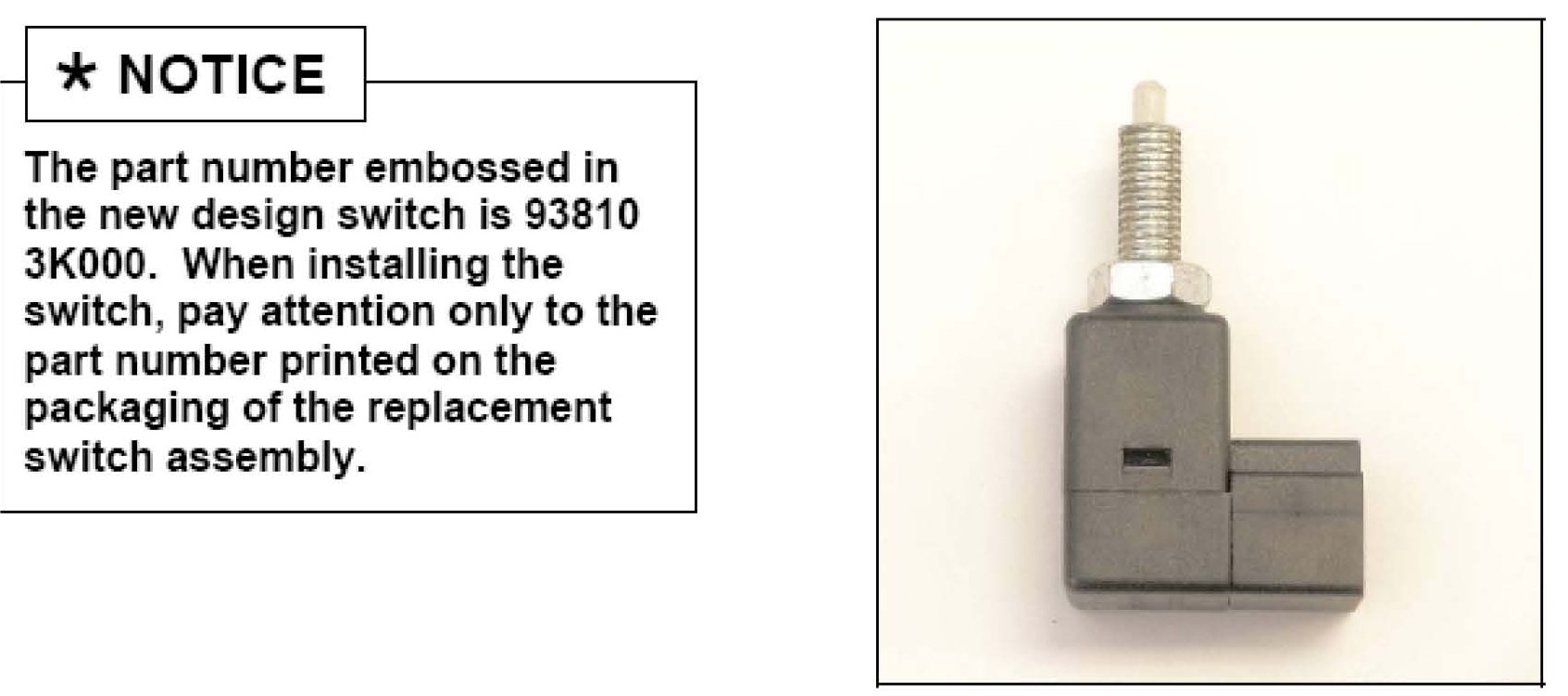

4. Install new stop lamp switch part number 93810 3K400QQK with gray colored body and connector.
NOTICE

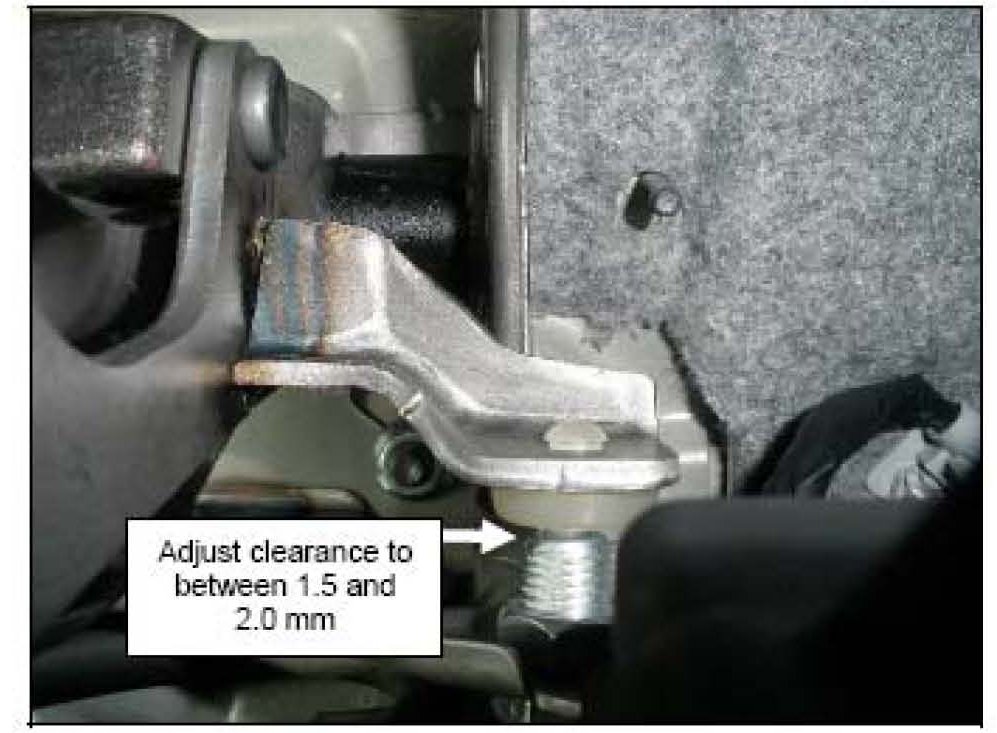

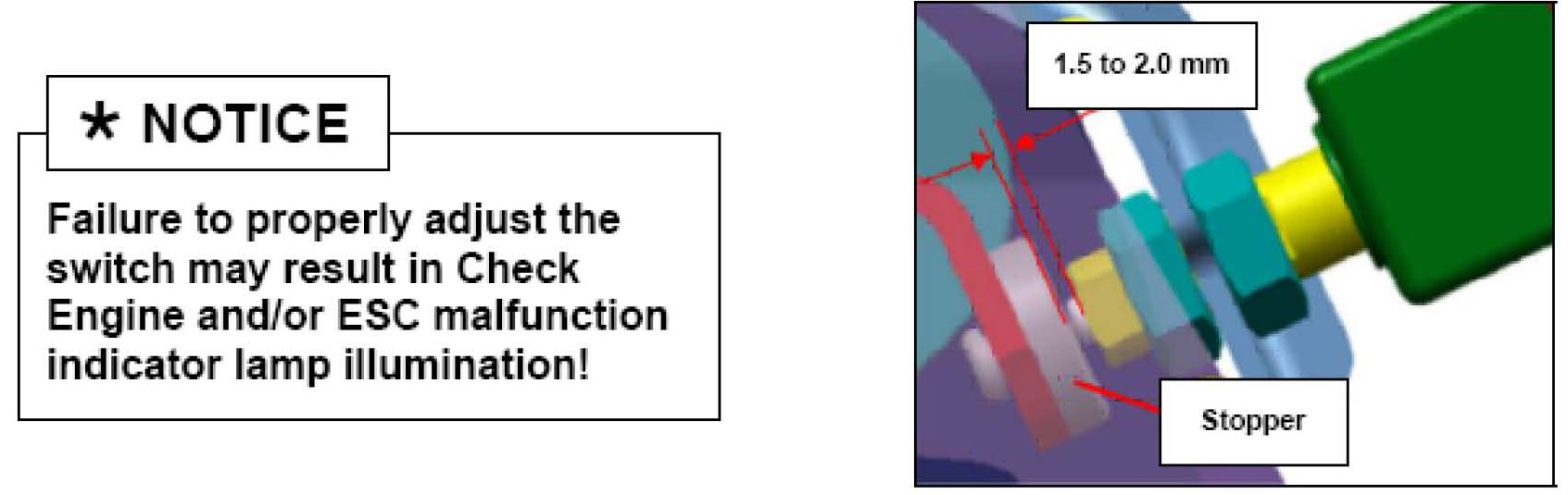

5. During installation of the new stop lamp switch be sure to adjust the clearance at the switch and brake pedal stopper to between 1.5 and 2.0 mm.
NOTICE
6. Reassemble the vehicle in the reverse order of disassembly.
7. Check the function all stop lamps before releasing vehicle back to the customer. Address any concern that may interfere with proper brake lamp operation.
Amanti:

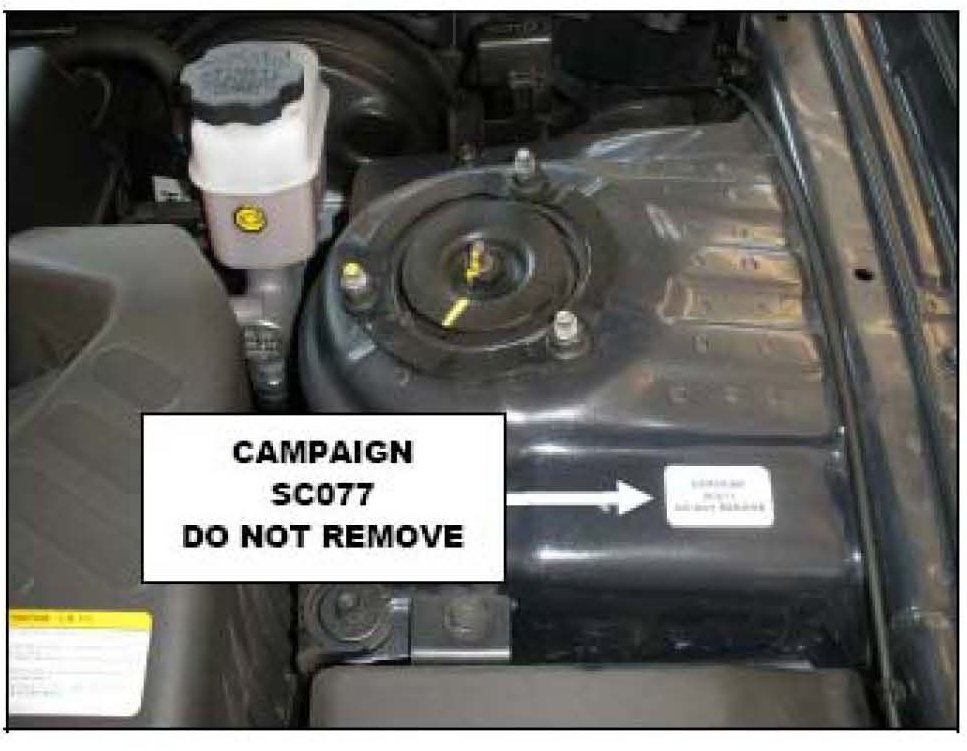

Attach campaign completion sticker SC077 to the driver's side strut tower as shown here.
