Brake Lamp: Service and Repair

STOP LAMPS

REMOVAL

HIGH MOUNTED STOP LAMP
1. Disconnect the negative (-) battery terminal.
2. Open the tail gate and remove the spoiler.

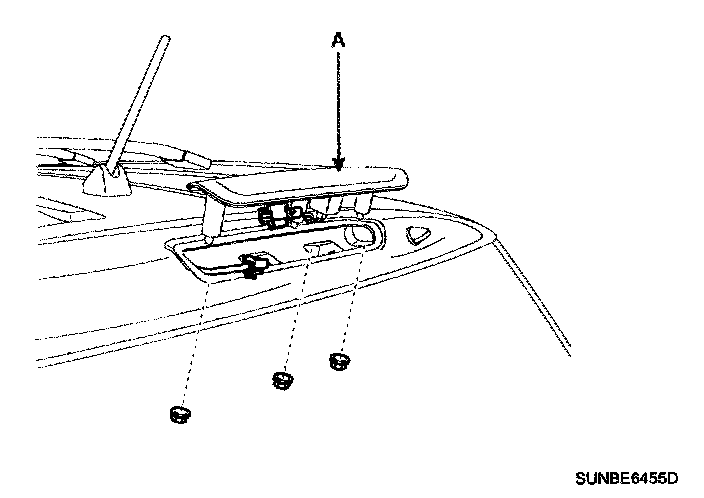

3. Remove mounting nuts (3EA). And then remove the high mounted stop lamp (A).

INSTALLATION

HIGH MOUNTED STOP LAMP
1. Install the room lamp assembly after connecting the lamp connector.
2. Install the lamp lens after assembling the bulb.
