Instrument Cluster / Carrier: Service and Repair

INSTRUMENT CLUSTER

REMOVAL
1. Disconnect the negative (-) battery terminal.

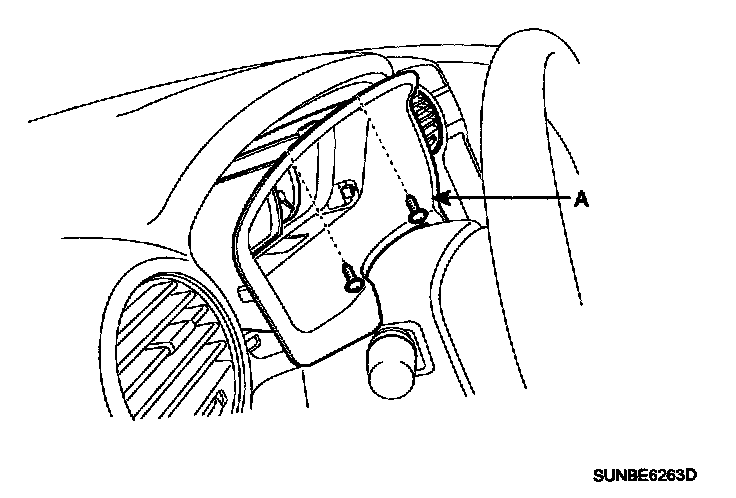

2. Remove the cluster facia panel (A) after loosening 2 screws.

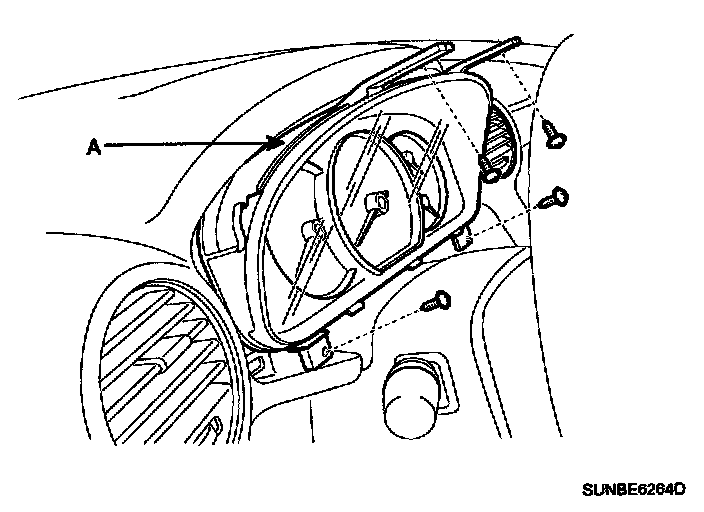

3. Pull out the cluster (A) from the housing after removing 4 screws.
4. Disconnect the cluster connecters and then remove the cluster.

INSTALLATION
1. Connect the cluster connector.
2. Install the cluster assembly.
3. Install the center facia panel.
