Driver/Vehicle Information Display: Description and Operation

TRIP COMPUTER




DESCRIPTION
The trip computer displays information related to driving, including distance to empty, average speed and average fuel consumption.
To change the function as described below, push the mode button less than 1 second.

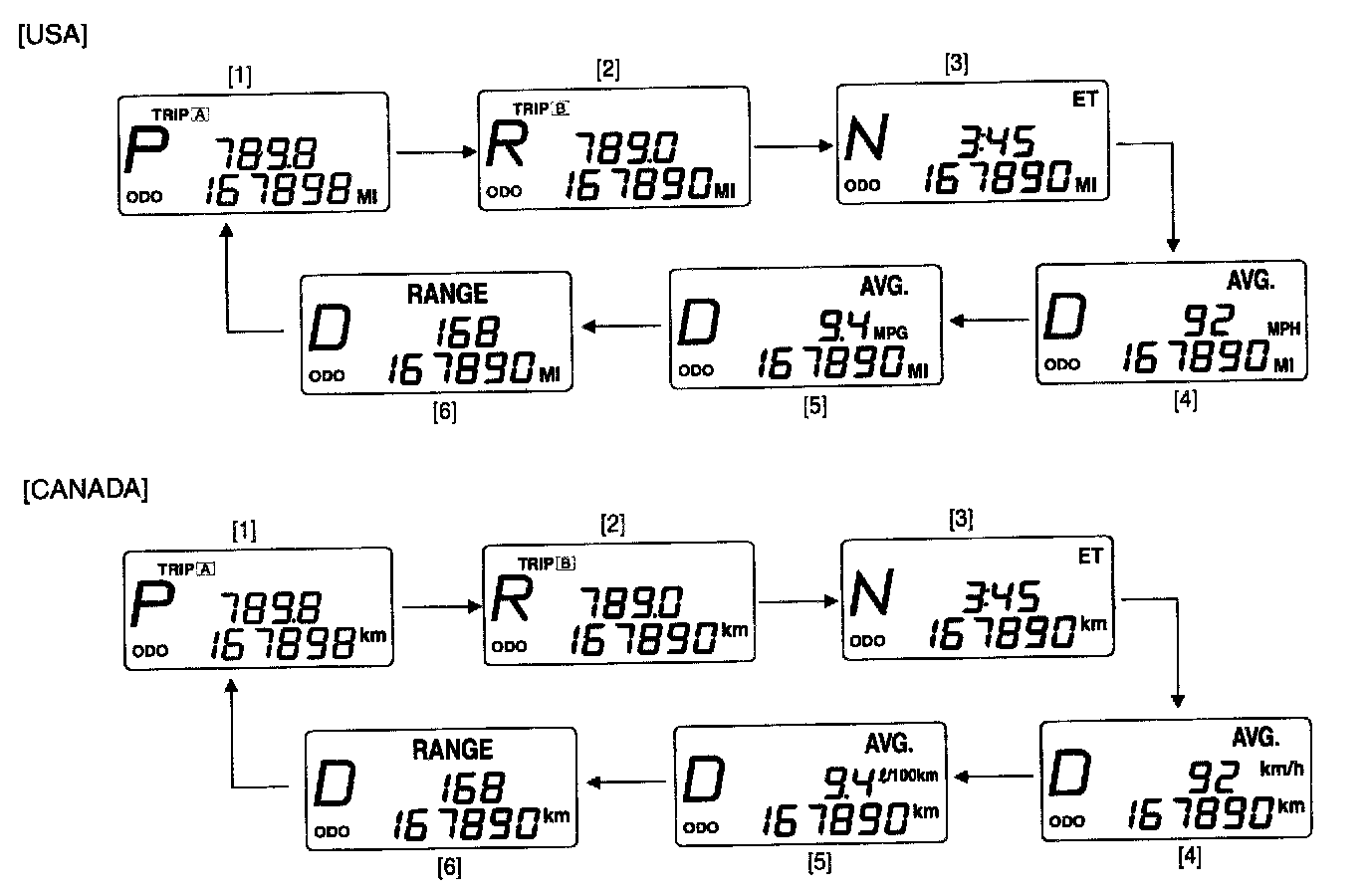

TRIP A [1] -> TRIP B [2] -> Elapsed time [3] -> Average speed [4] -> Average fuel consumption [5] -> Distance to empty [6] -> TRIP A [1]

OPERATION

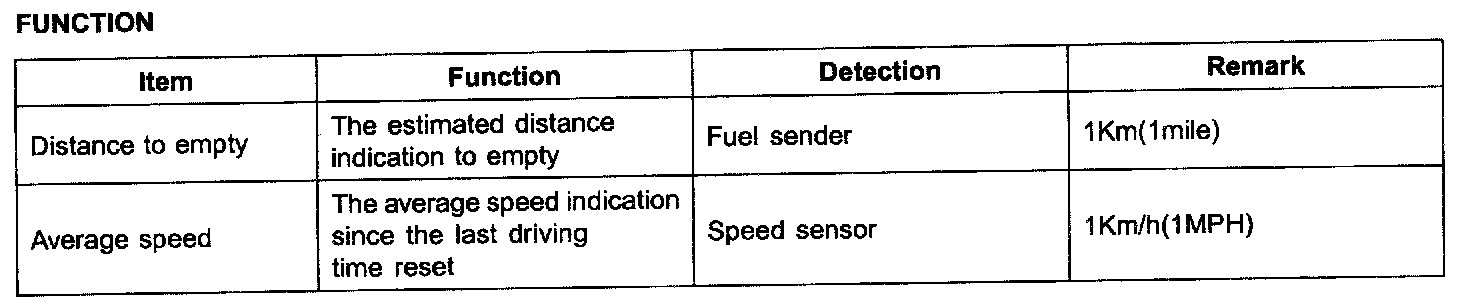

FUNCTION

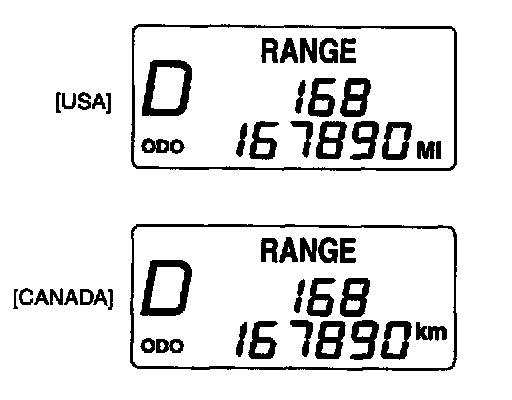

DISTANCE TO EMPTY MODE
1. Description
This mode indicates the estimated distance to empty based on the current fuel in the fuel thank and the amount of fuel delivered to the engine.

2. Indication range : 50 Km - 999 Km (30 miles - 999 miles)




3. Indication division : 1 Km(mile)

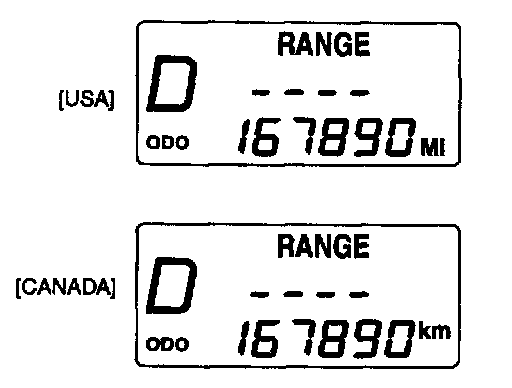

When the remaining distance is below 50 Km (30 miles), a blinking "--" symbol will be displayed. (Blinking interval : 1 sec.)

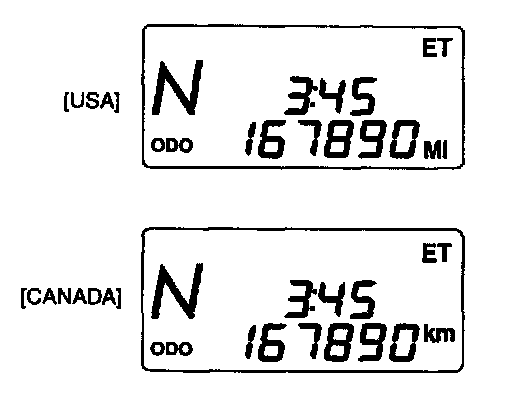

ELAPSED TIME
1. Description
This mode indicate the total time traveled since the last driving time reset while the engine is running.

2. Press the reset button for more than 1 sec, clears the driving time to zero.
3. Data clear: press the reset button for more than 1 sec. or Battery + on




AVERAGE SPEED MODE
1. Description
This mode indicates the estimated speed by the driving distance to the indication timing after reconnecting the batter or resetting the data.

2. Indication range : 0 Km/h (MPH) - 220 Km/h (MPH)
3. Indication division : 1 Km/h (MPH)
When the battery is reconnected or the data are reset, "---" symbol will be displayed until the timing.
4. Data clear: press the reset button for more than 1 sec. or Battery + on

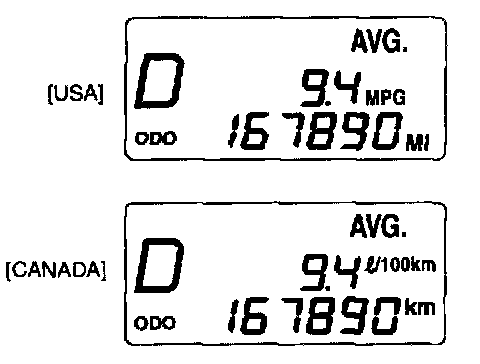

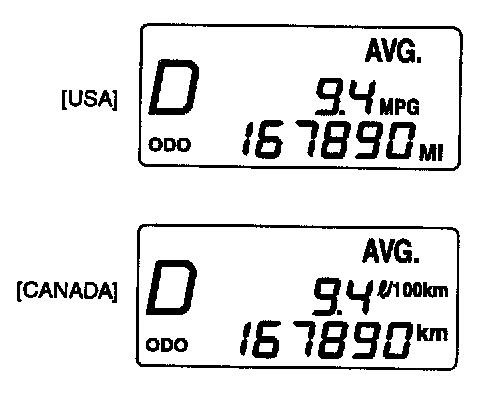

AVERAGE FUEL CONSUMPTION MODE
1. Description
This mode calculates the average fuel consumption from the total used fuel and the distance after reconnecting the batter or resetting the data.

2. Indication range : 0.1 L - 199.9 L/100 Km or MPG (mile per gallon)
3. Indication division : 0.1 L/100 Km (MPG)
When there is no pulse signal on vehicle speed after reconnecting the battery or resetting the data, "---L/100 Km (MPG)" symbol will be displayed.
4. Indication interval : 10 sec
5. Data clear : press the reset button for more than 1 sec. or Battery + on
