Circuit Diagram

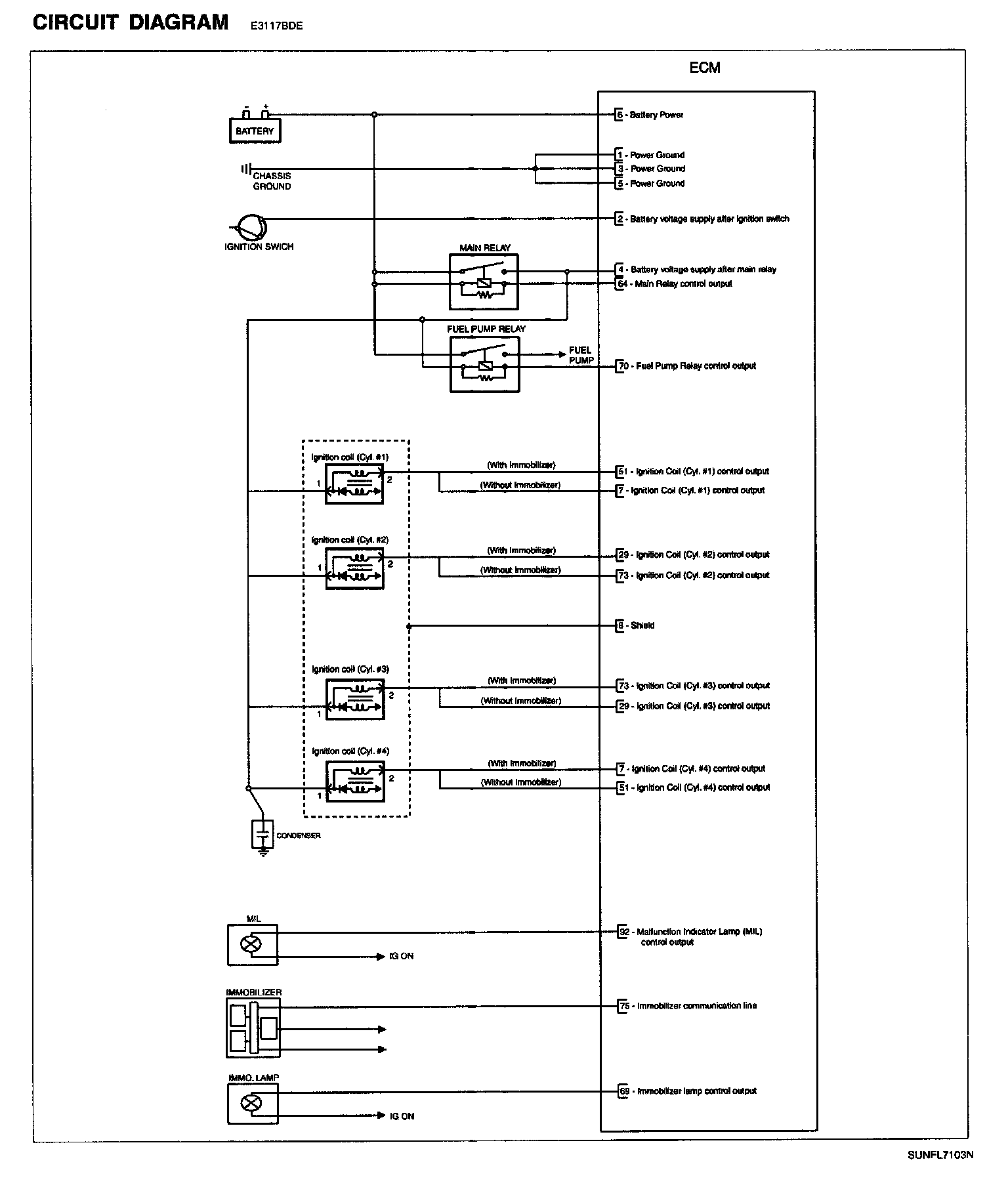

Circuit Diagram For Gasoline Engine Control System Part 1:

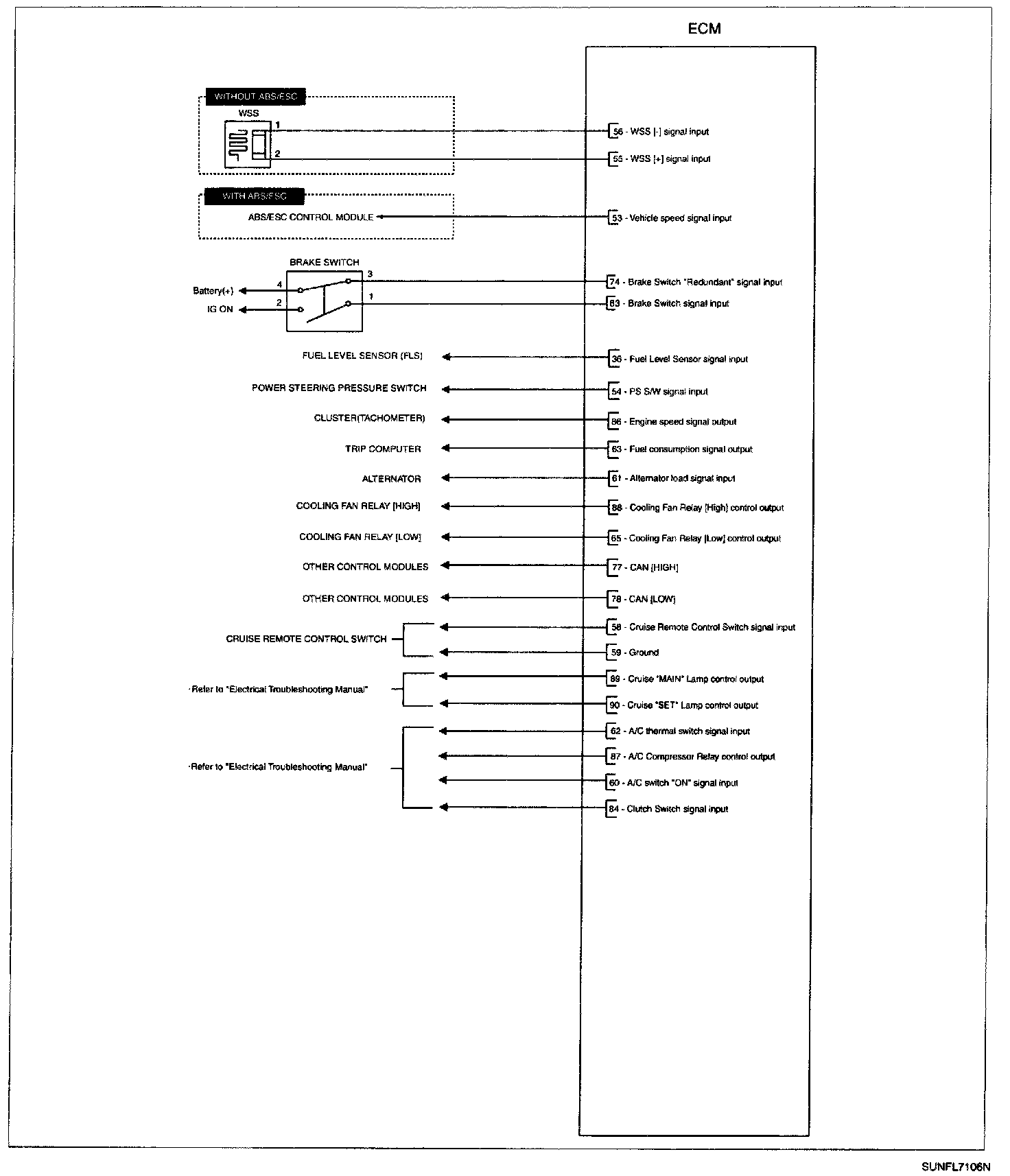

Circuit Diagram For Gasoline Engine Control System Part 2:

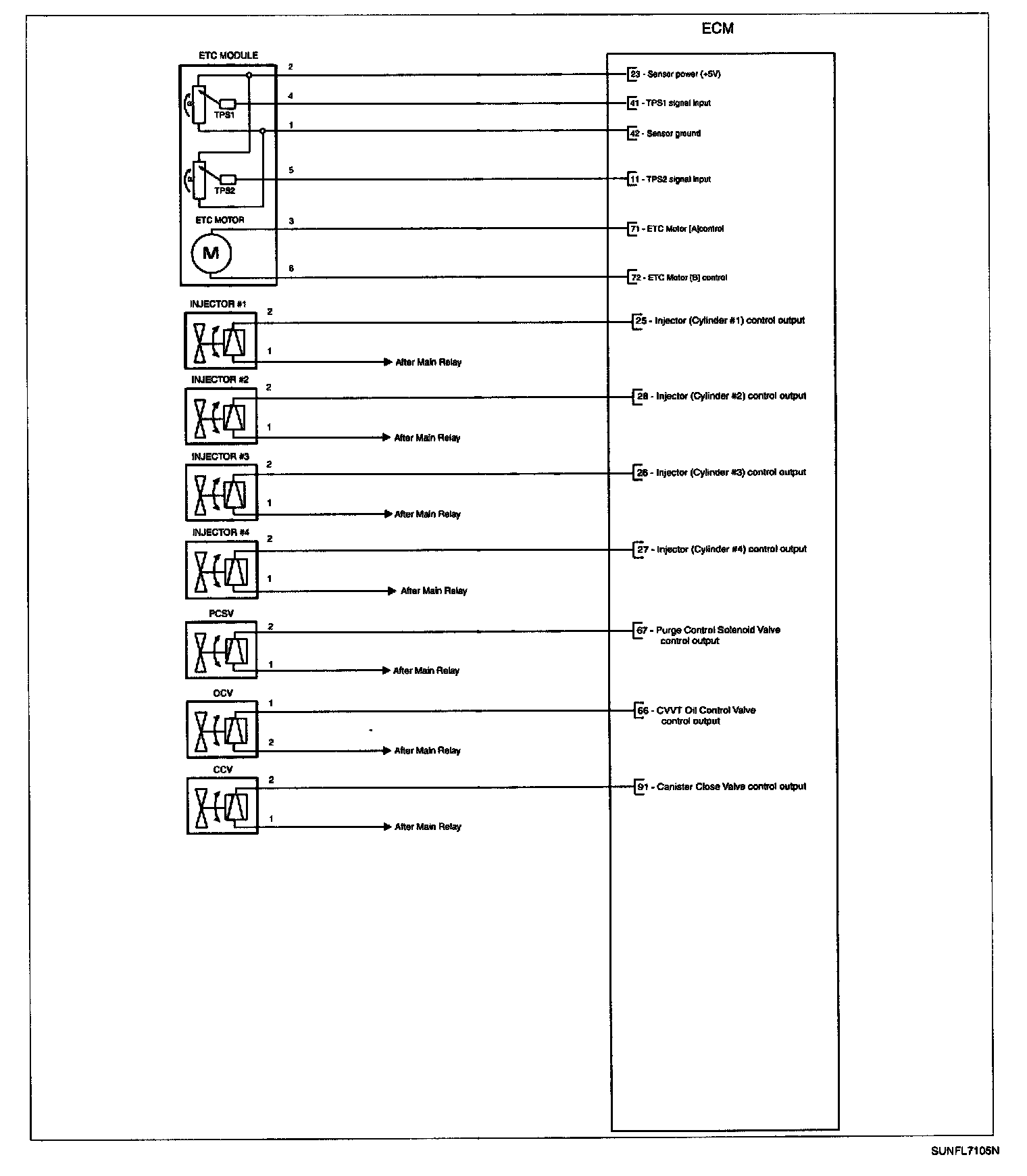

Circuit Diagram For Gasoline Engine Control System Part 3:

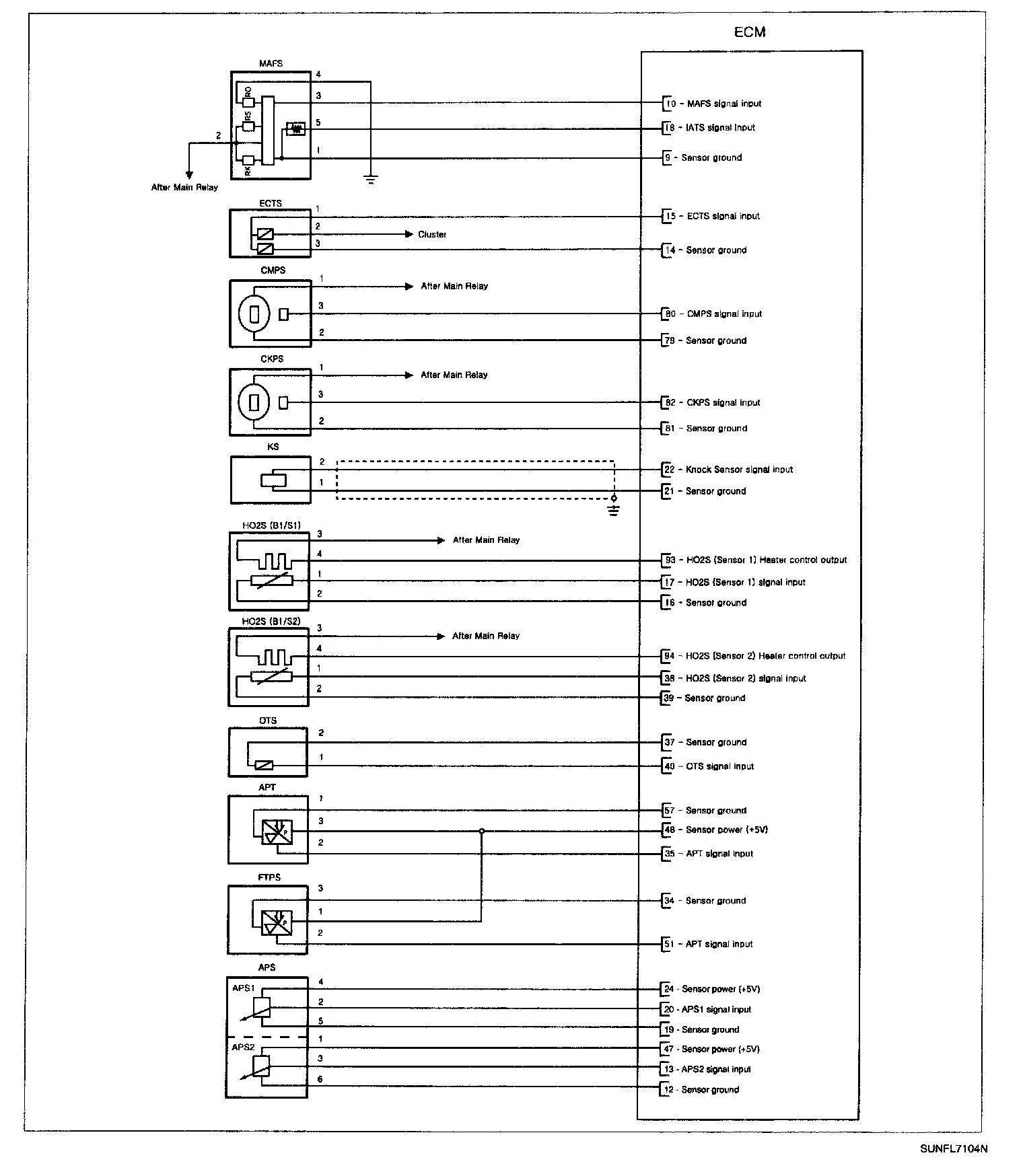

Circuit Diagram For Gasoline Engine Control System Part 4:
