FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Kia
>>
2007
>>
Rondo L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
Radio/Stereo

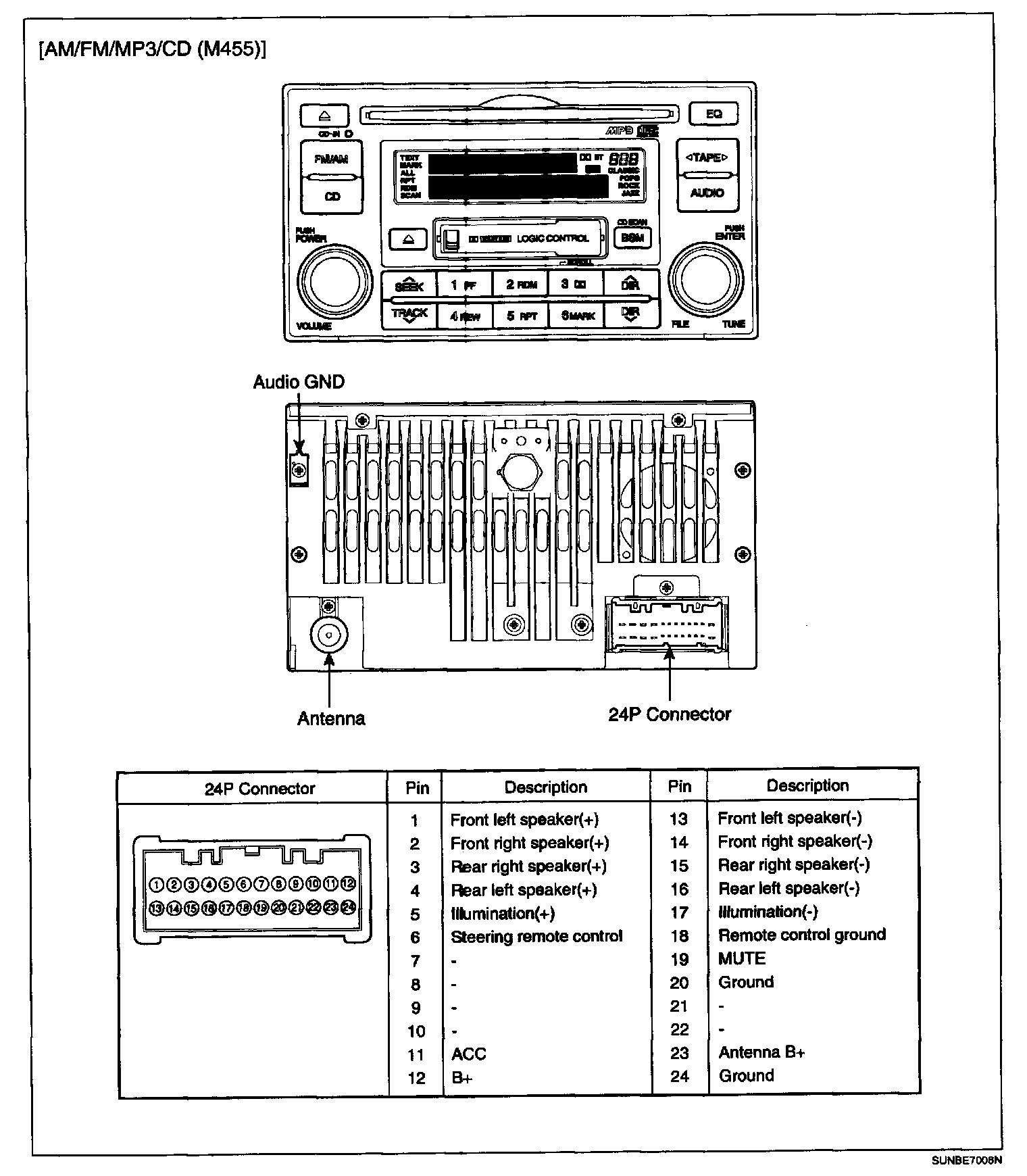

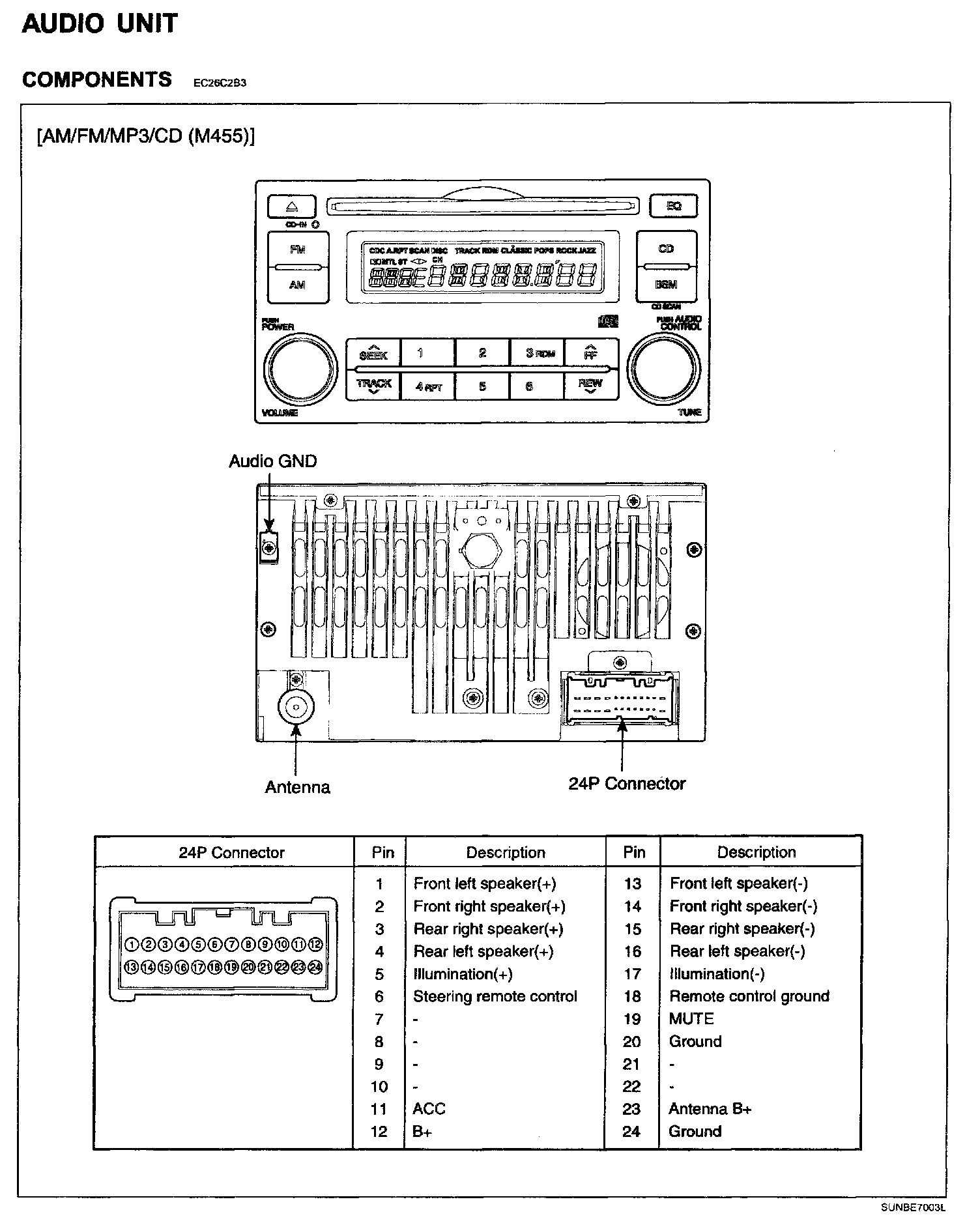

AM/FM/MP3/CD (M455):
AM/FM/MP3/CD (M455):

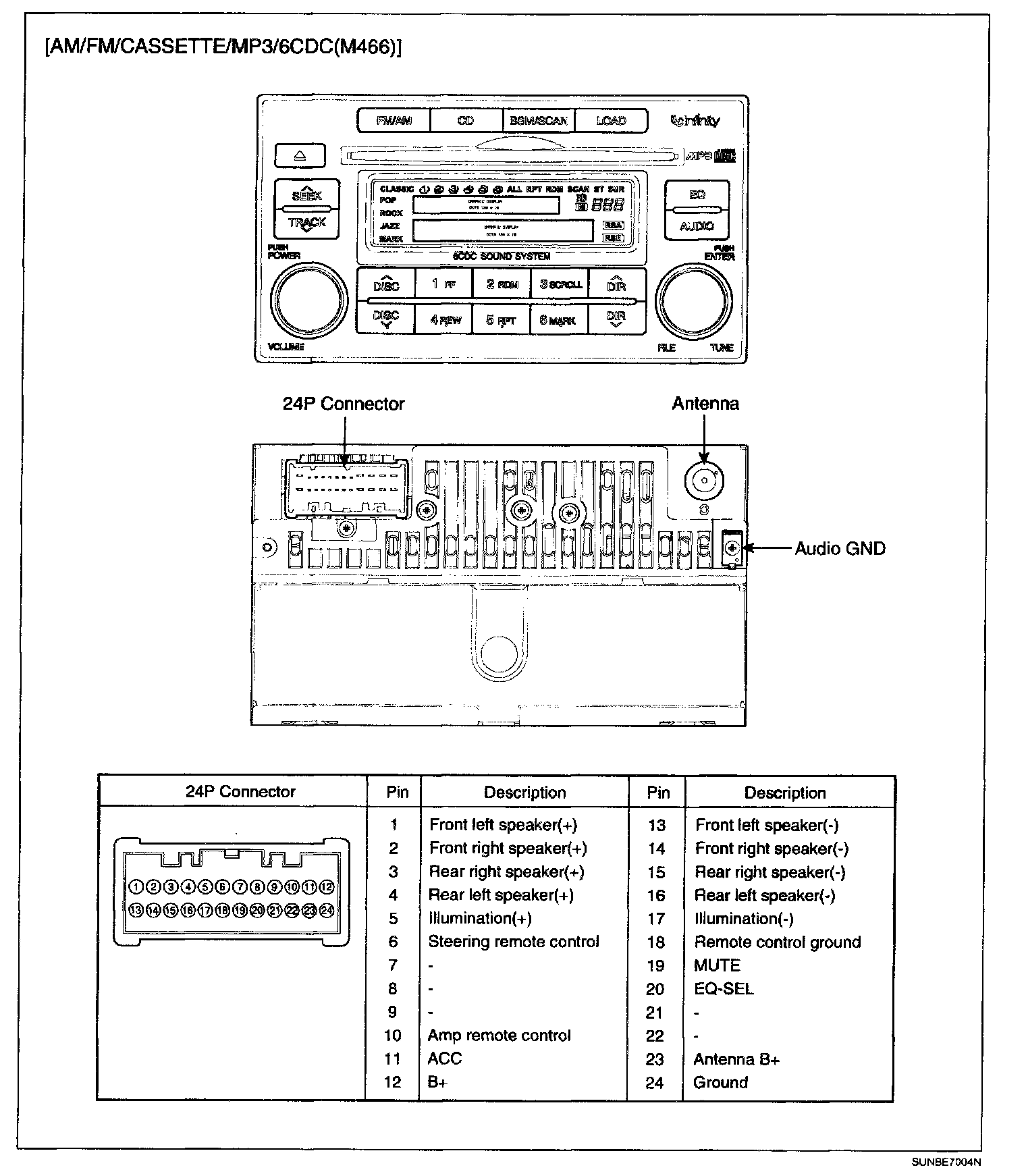

AM/FM/CASSETTE/MP3/6CDC (M466):

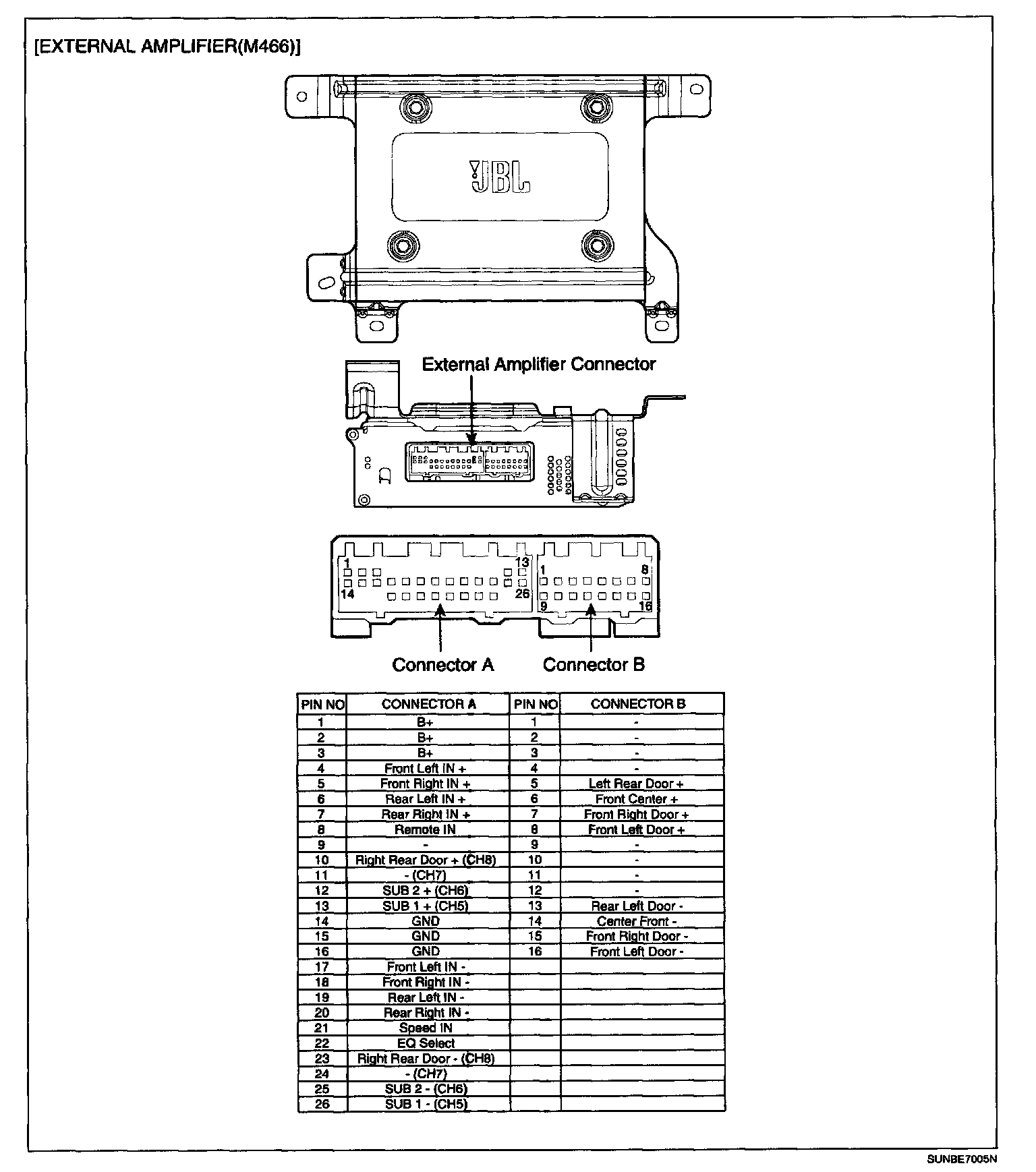

EXTERNAL AMPLIFIER (M466):
