Rear Brake Pad Check
Rear Brake Pad Check
REAR
BRAKE PAD
CHECK
1.

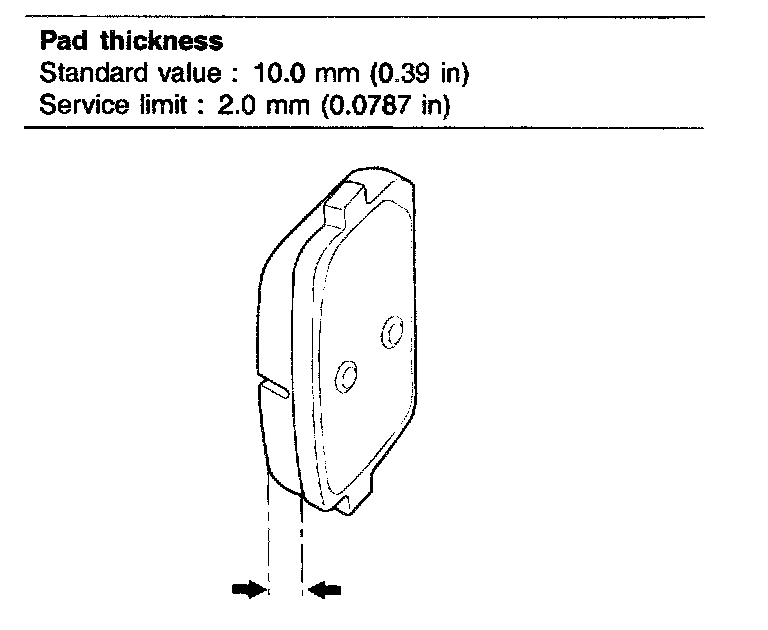

Check the pad wear. Measure the pad thickness. replace it if it is less than the specified value.
2.
Check that grease is applied, to sliding contact points and the pad and backing metal for damage.
