Home >> Kia >> 2007 >> Rondo L4-2.4L >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Pad >> Service and Repair >> Procedures

Procedures

FRONT DISC BRAKE

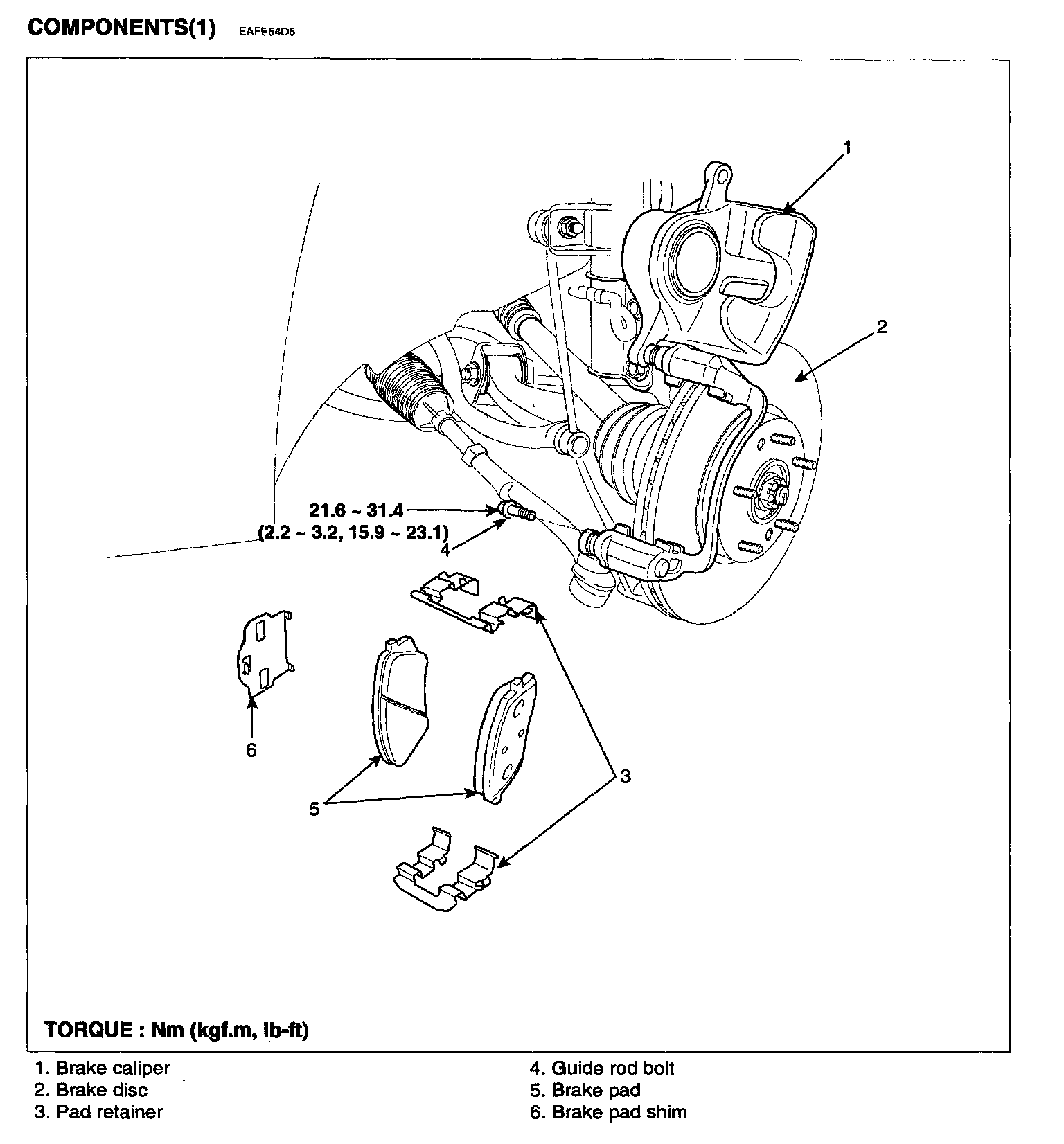

Components(1):

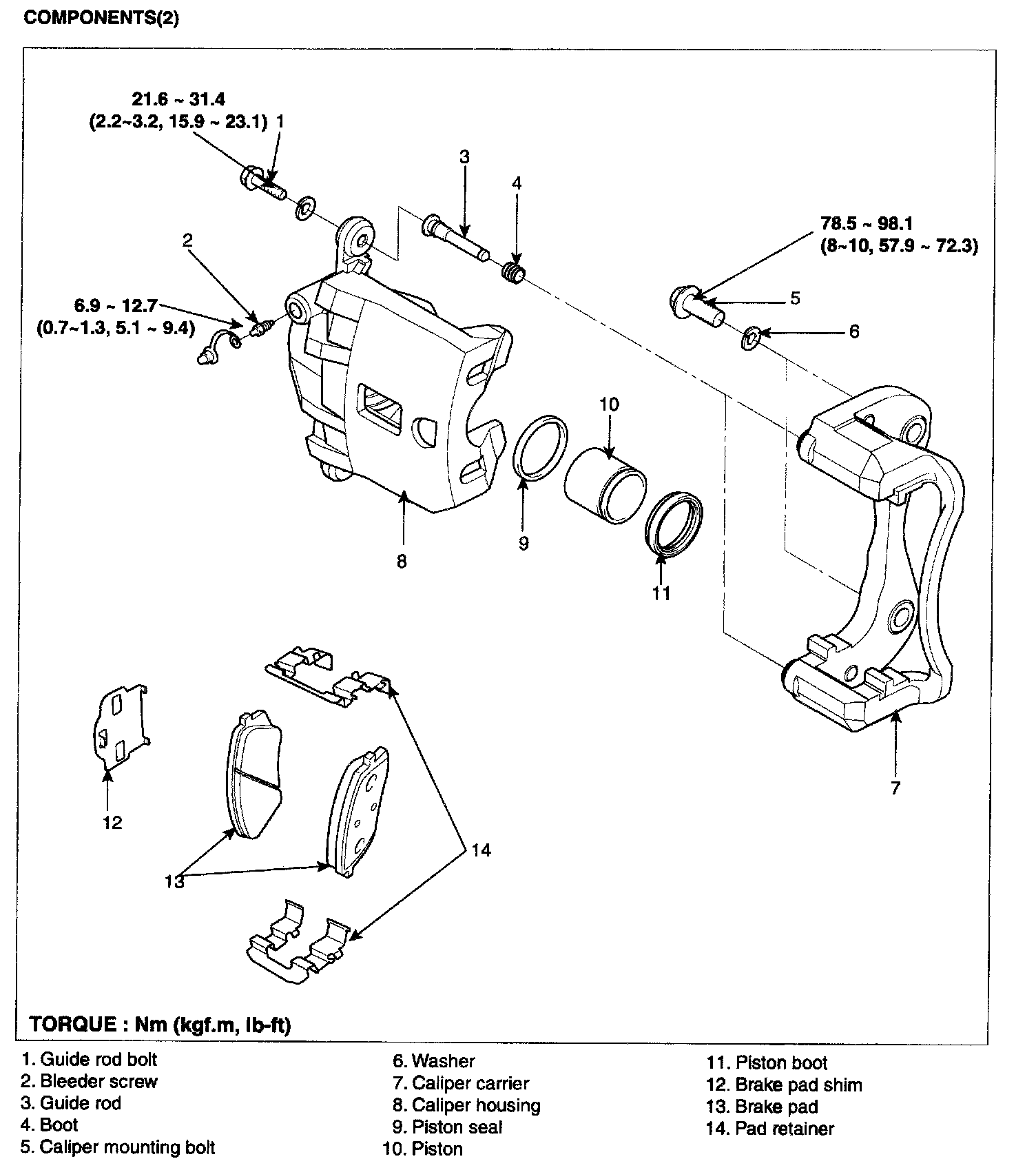

Components(2):
