Power Door Lock Switch: Testing and Inspection
POWER DOOR LOCK SWITCHINSPECTION

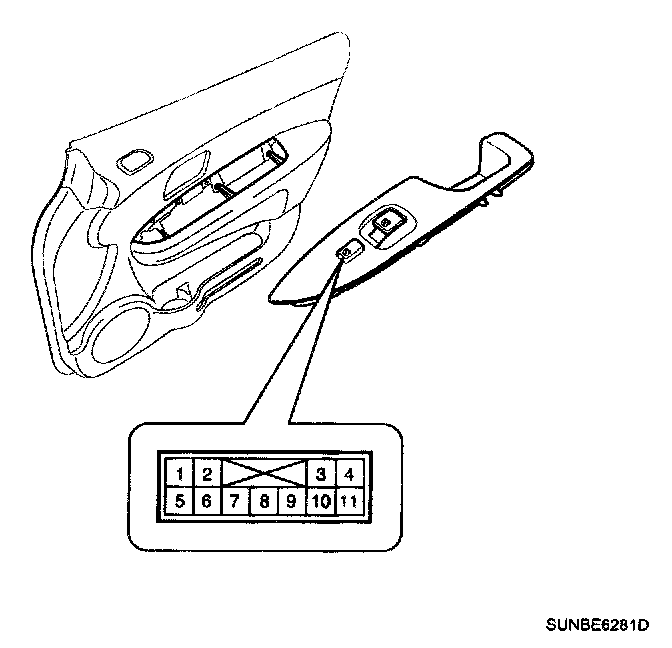

DRIVER DOOR LOCK SWITCH
1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim and power window switch module.
3. Disconnect the connector from the switch.

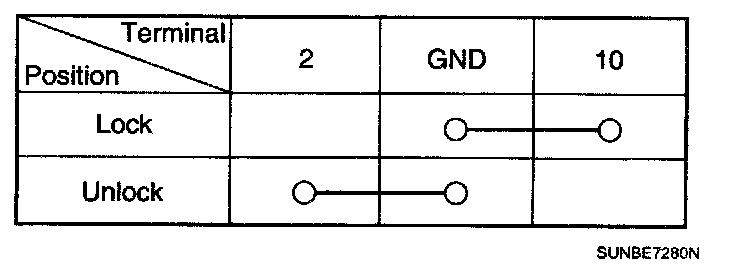

4. Check for continuity between the terminals in each switch position according to the table.
ASSIST DOOR LOCK SWITCH
1. Disconnect the negative (-) battery terminal
2. Remove the front door trim and power window switch module.
3. Disconnect the connector from the switch.

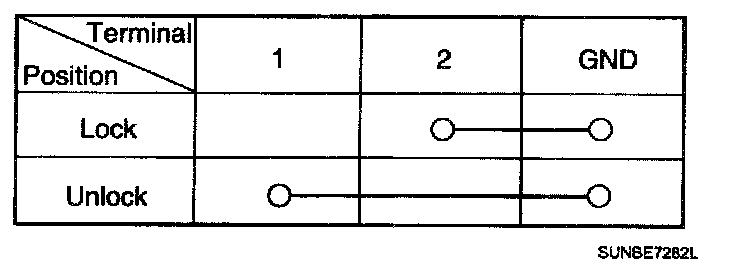

4. Check for continuity between the terminals in each switch position according to the table.
POWER DOOR LOCK SWITCH
1. Check BCM input/output value of each position. If the operation of the door module is abnormal, replace the door module.

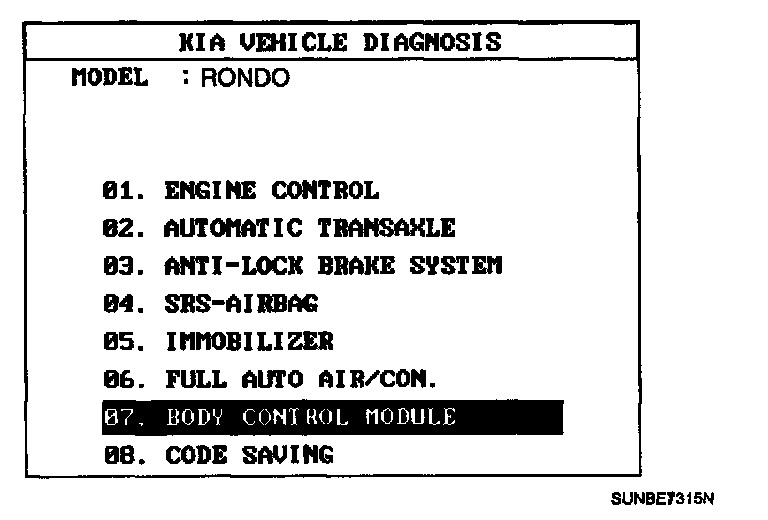

2. Select model and "Body Control Module" menu, when you inspect the door-lock switch module whether faulty or not.

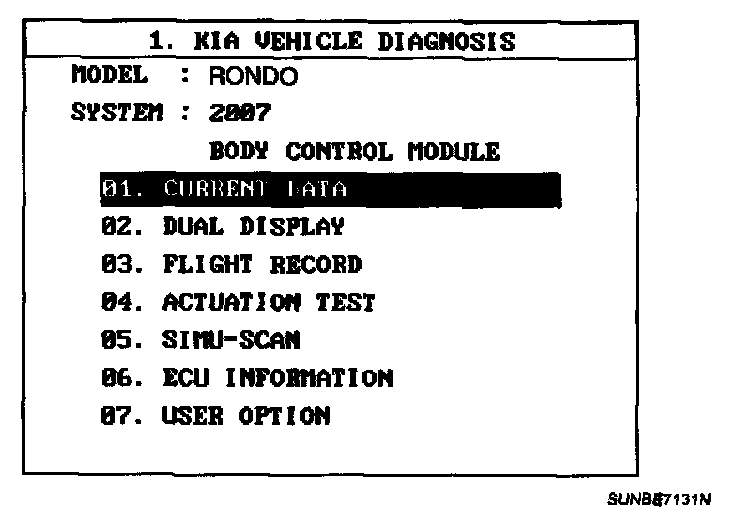

3. Select "Current data" and check the input/output condition of door lock switch.

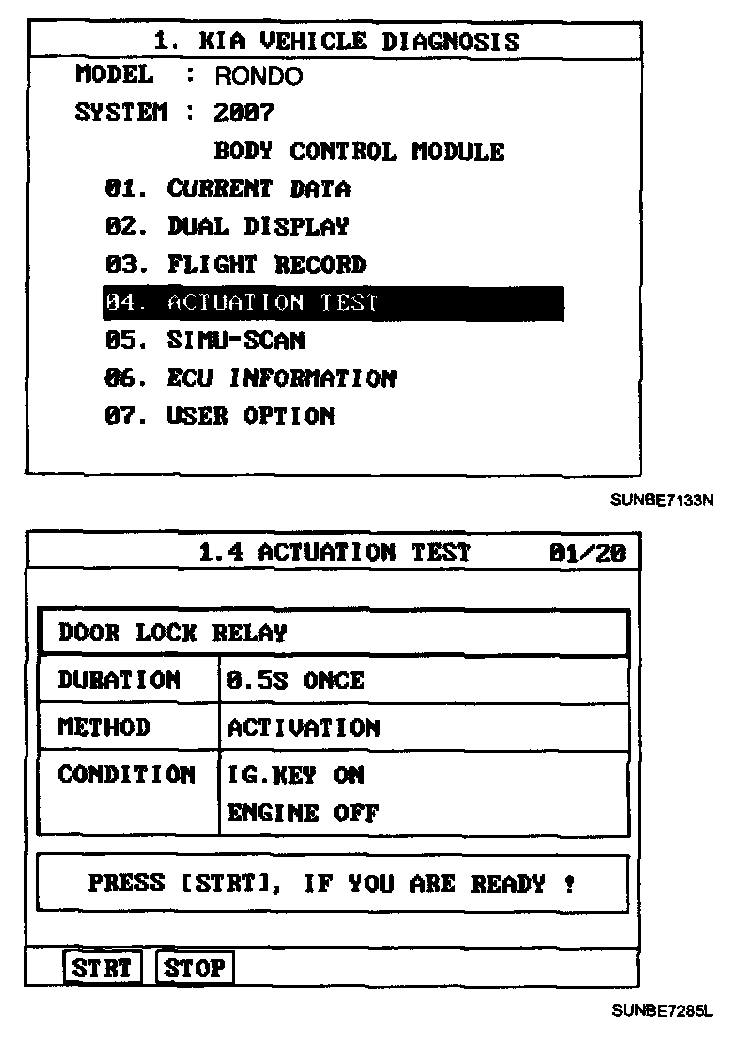

4. Use actuation test mode to verify actuator operation.
