Seat Back Cover Replacement

SEAT BACK COVER REPLACEMENT

1. Remove the third seat assembly.

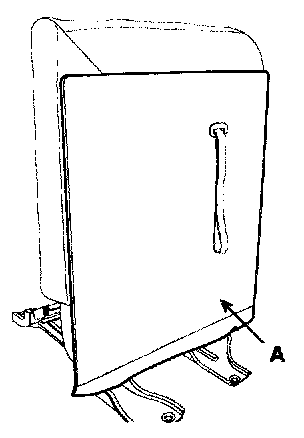

2. Remove the seat back panel (A).

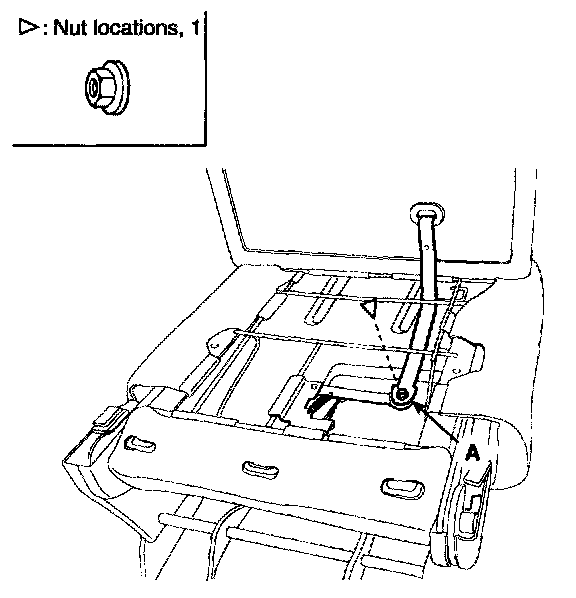

3. Remove the recliner lever mounting nut (A).

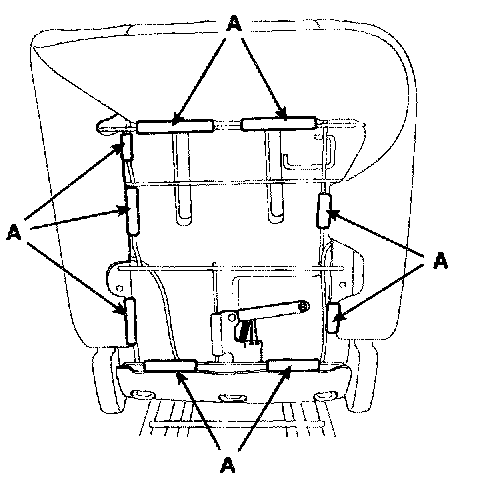

4. Disconnect the protector (A).

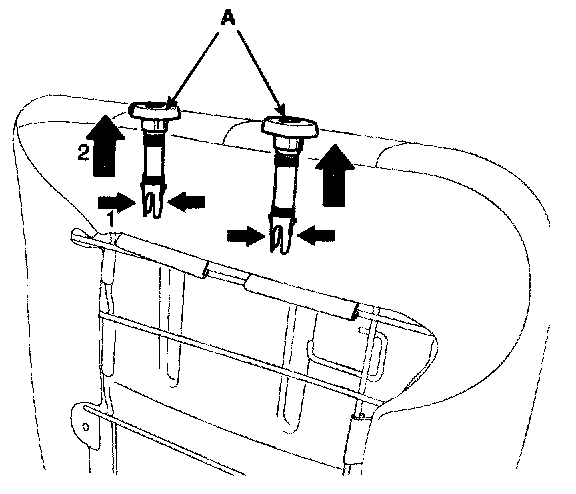

5. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

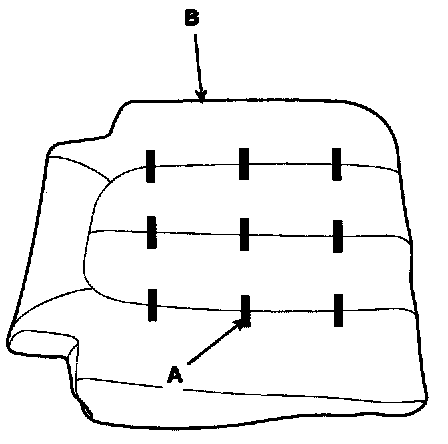

6. After removing the hogring clip (A) on the front of seat cushion and remove the seat cushion cover (B).






7. Installation is the reverse of removal.
