Seat Cushion Cover Replacement (RH)

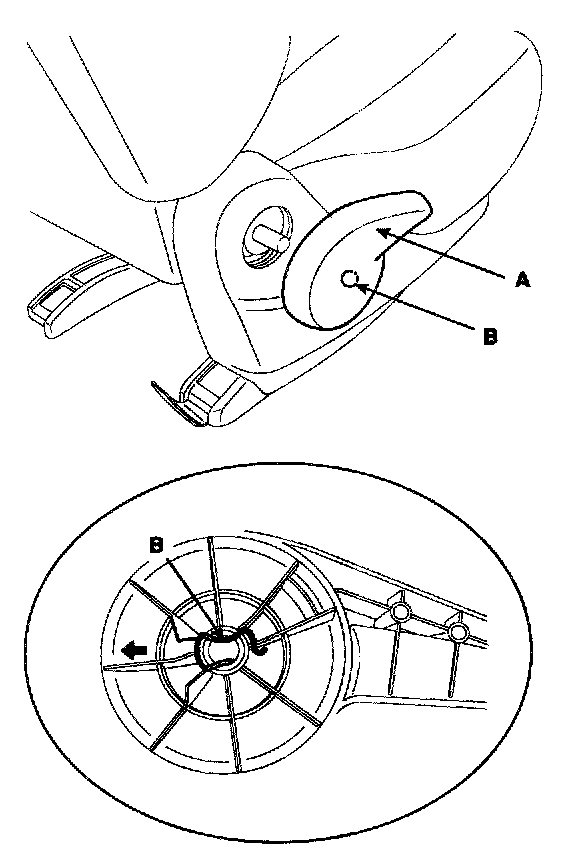

SEAT CUSHION COVER REPLACEMENT1. Remove the clip (B).
2. Remove the recliner lever (A).

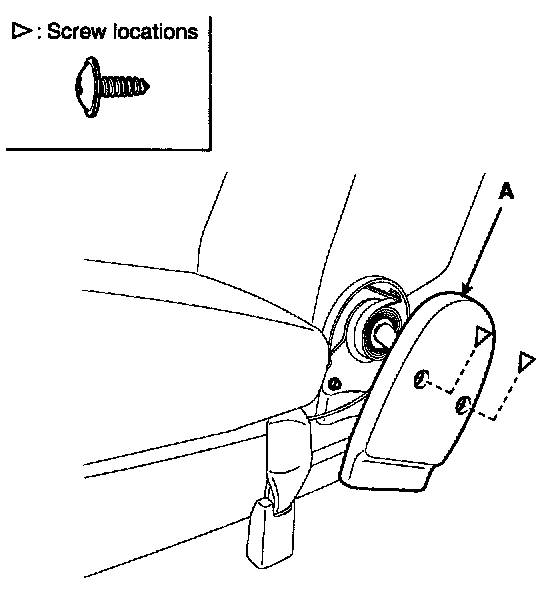

3. After loosening the mounting screw, then remove the cover (A).

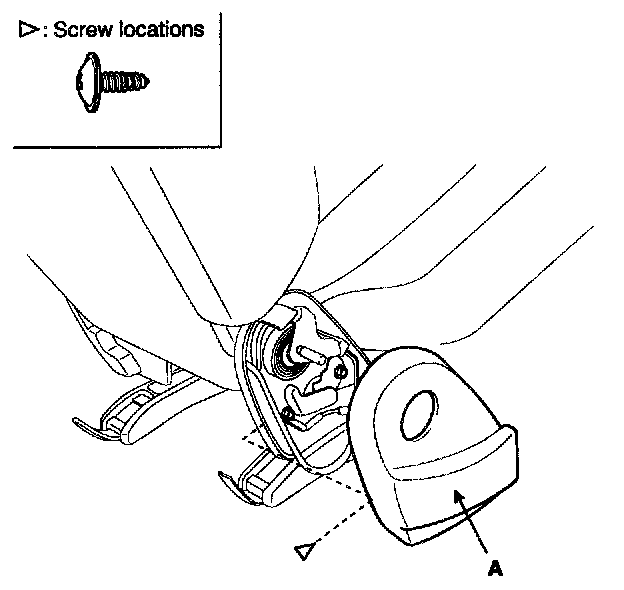

4. After loosening the mounting screws, then remove the recliner cover (A).

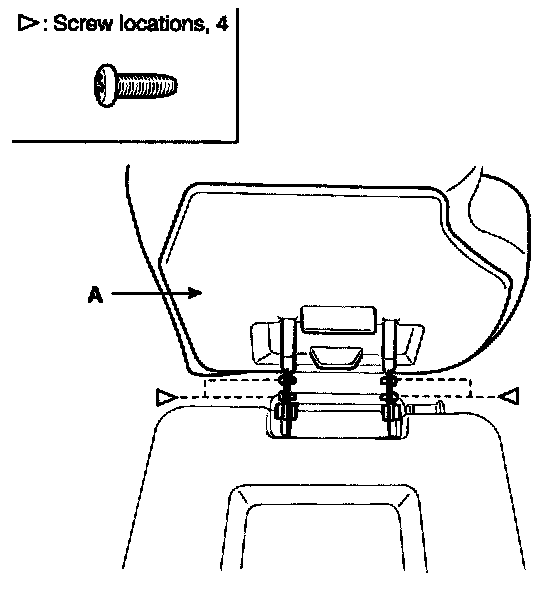

5. After loosening mounting screws, then remove the seat cushion assembly (A).

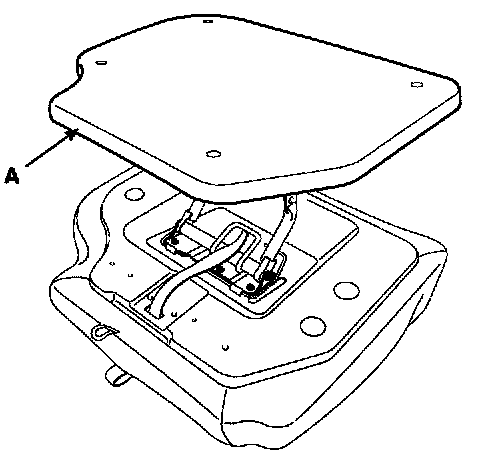

6. Remove the cover (A).

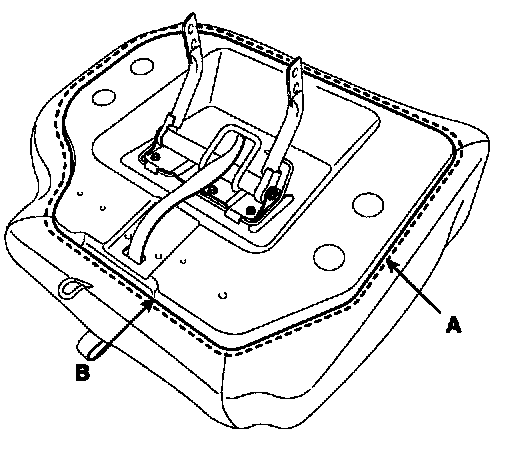

7. Disconnect the protector (A) and remove the panel (B).

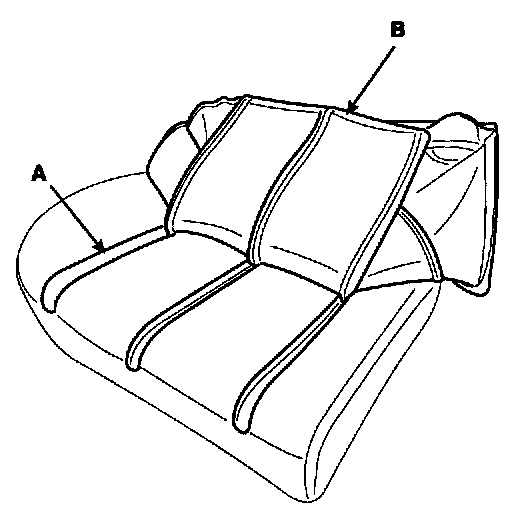

8. Disconnect the adhesives (A) on the front of seat cushion, remove the seat cushion cover (B).
9. Installation is the reverse of removal.
