Seat Cushion Cover Replacement (LH)

SEAT CUSHION COVER REPLACEMENT

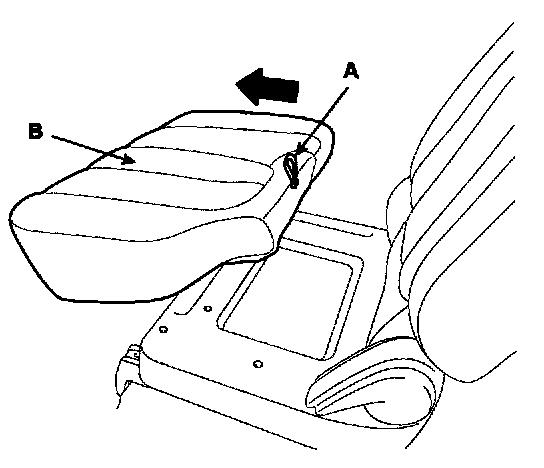

1. After puling the ribbon (A) remove the seat cushion (B).

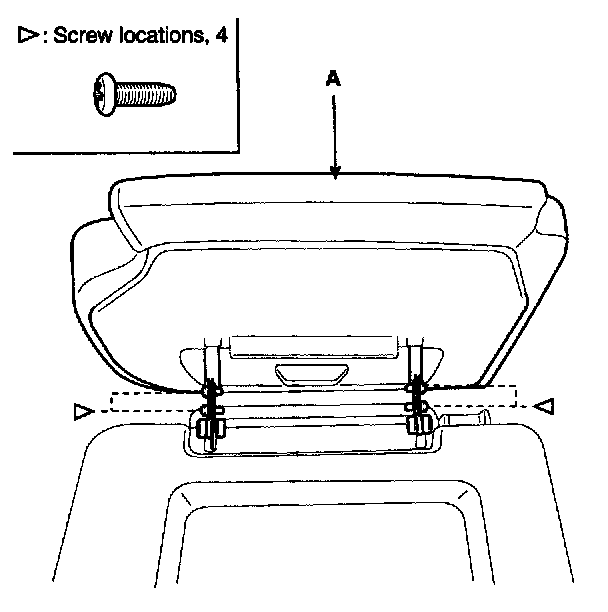

2. After loosening mounting screws, then remove the seat cushion assembly (A).

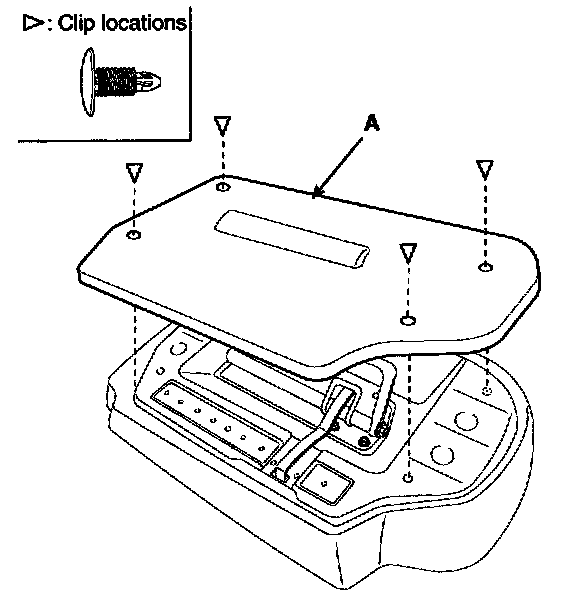

3. Remove the panel (A).

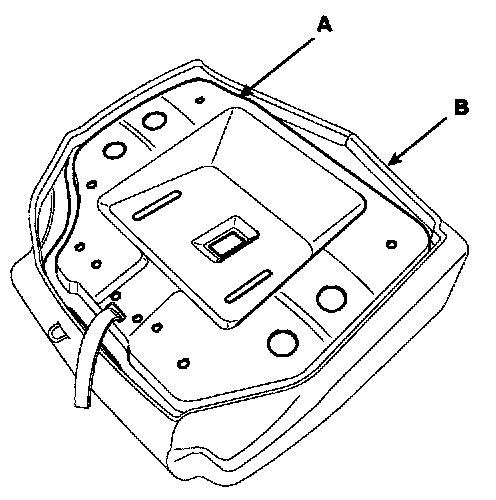

4. Disconnect the protector (B) and remove the panel (A).

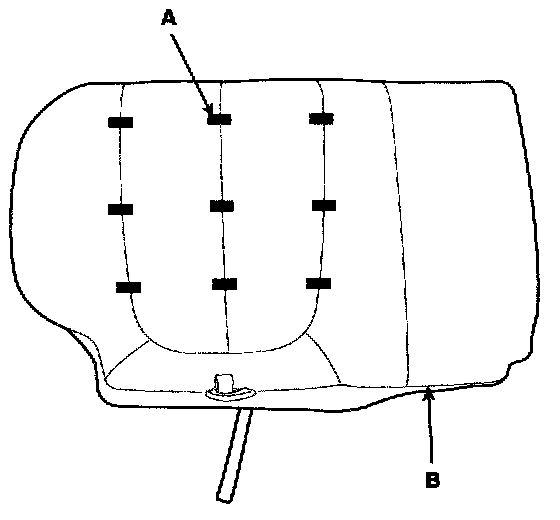

5. After removing the hogring clip (A) on the front of seat cushion and remove the seat cushion cover (B).
