Seat Back Cover Replacement (RH)

SEAT BACK COVER REPLACEMENT

1. Remove the recliner cover.

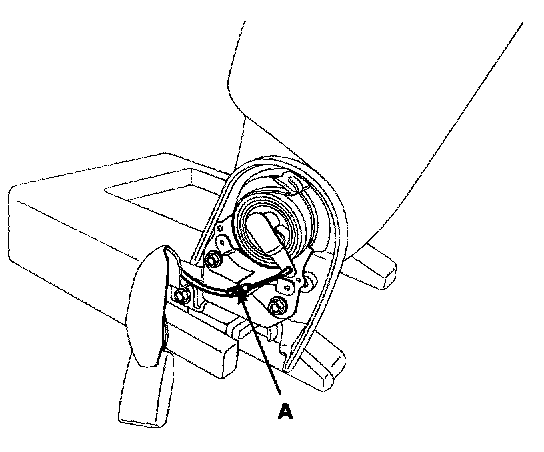

2. Remove the recliner cable (A).

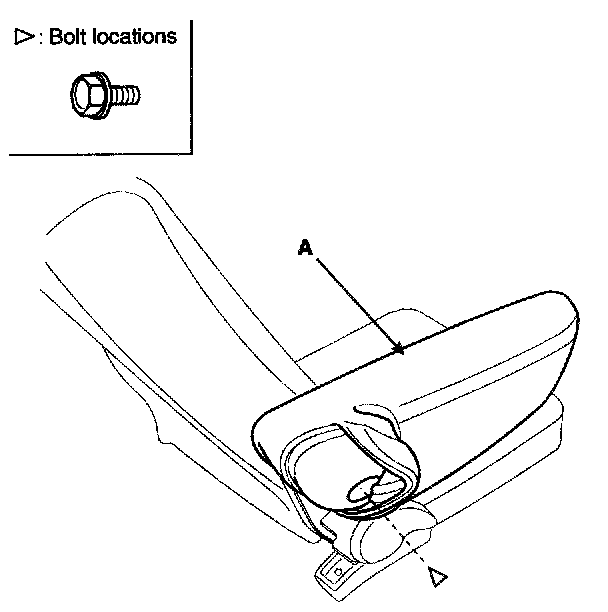

3. After loosening the mounting bolt, then remove the armrest (A).






4. Remove the bend (A).

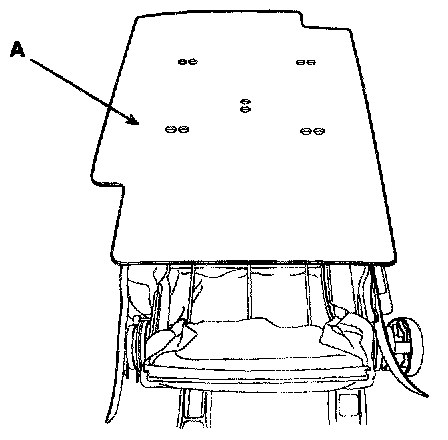

5. Remove the back panel (A).

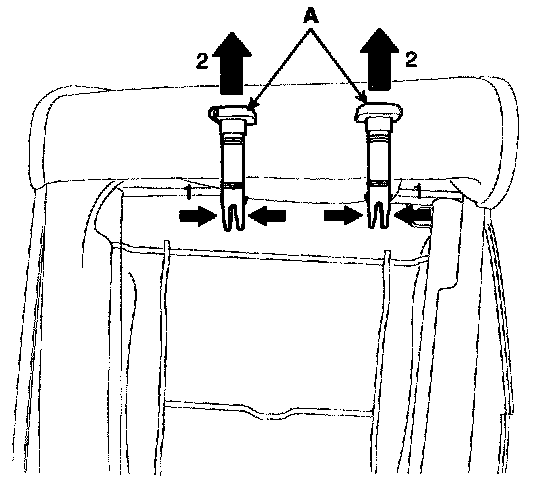

6. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

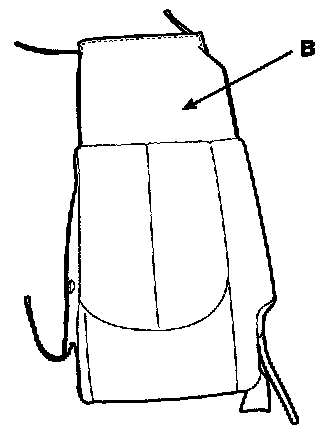

7. After removing the hogring clip on the front of seat cushion and remove the seat cushion cover (B).






8. Installation is the reverse of removal.
