Seat Back Cover Replacement (LH)

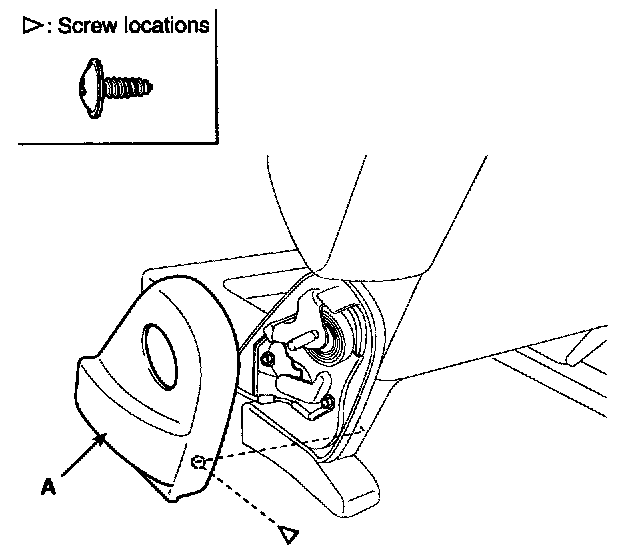

SEAT BACK COVER REPLACEMENT1. After loosening the mounting screws, then remove the recliner cover (A).

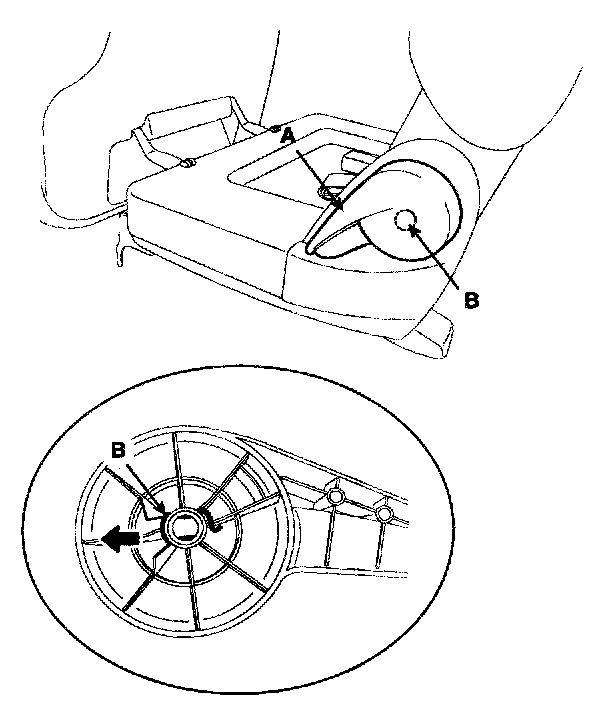

2. Remove the clip (B) and recliner lever (A).

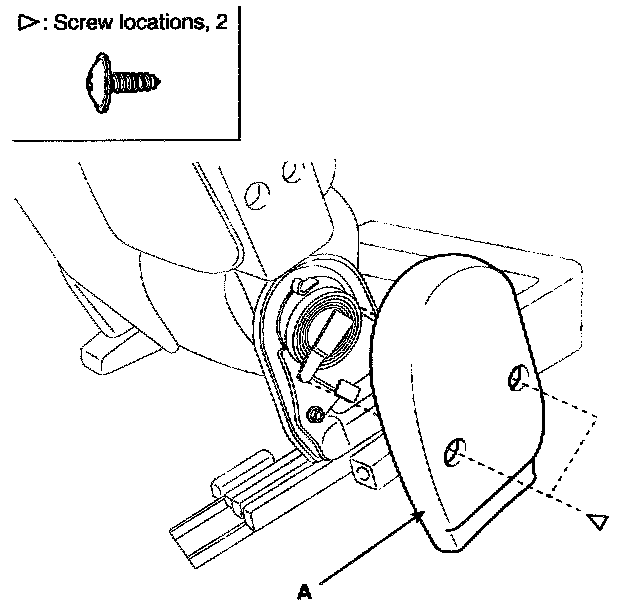

3. After loosening the mounting screw, then remove the recliner cover (A).

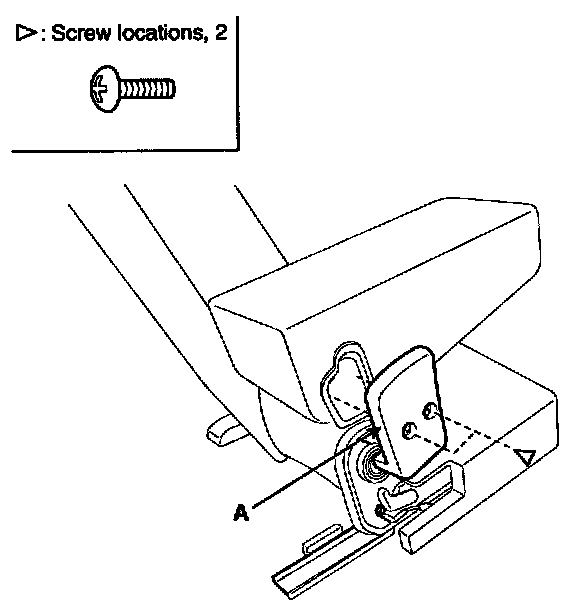

4. Remove the screw and cover (A).

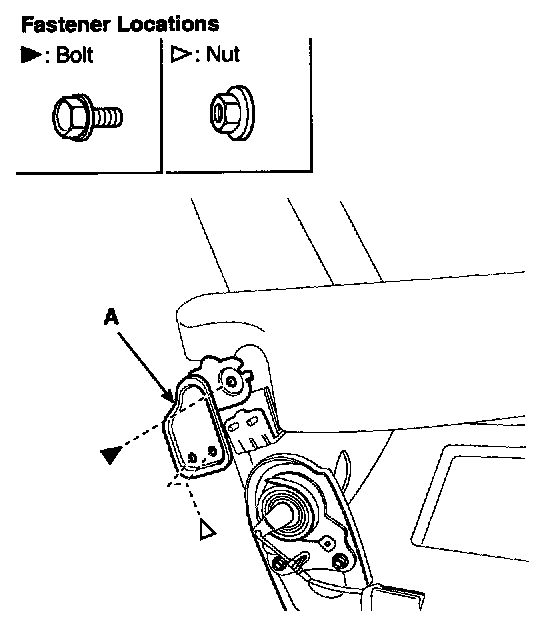

5. After loosening the mounting bolt and nut, then remove the armrest mounting bracket (A).

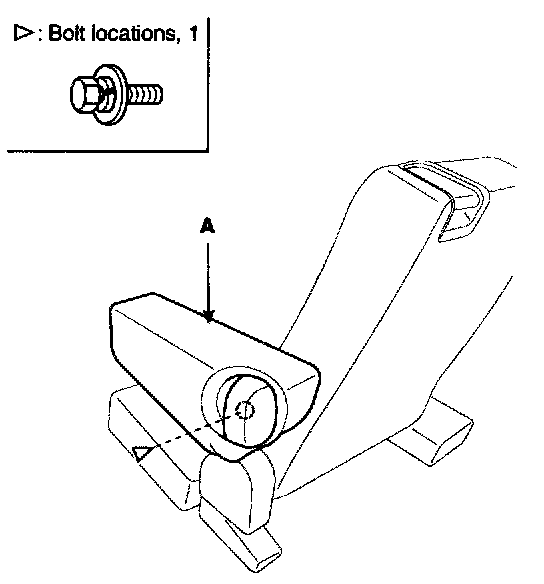

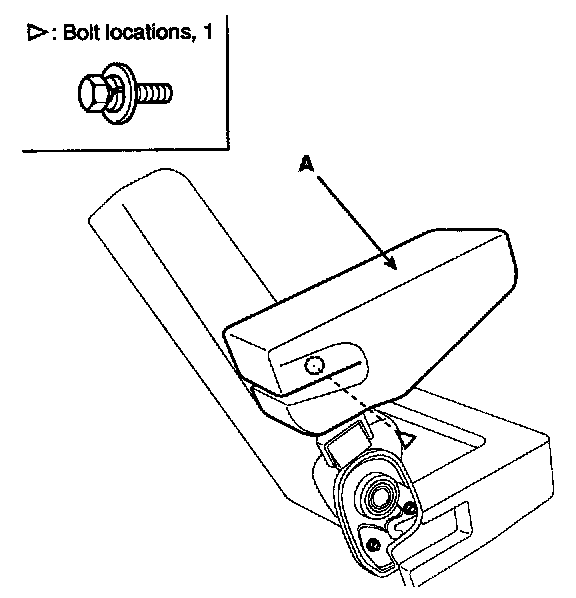

6. Remove the bolt and armrest (A).
7. Remove the armrest (A).

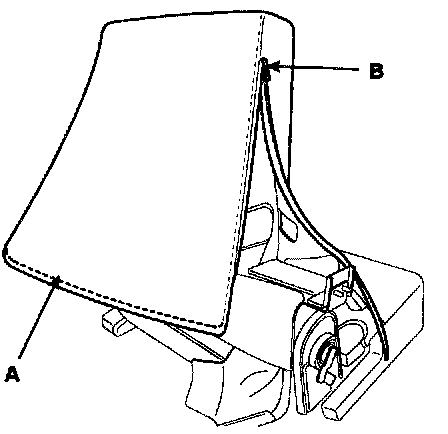

8. Disconnect the protector (A) and zipper (B).

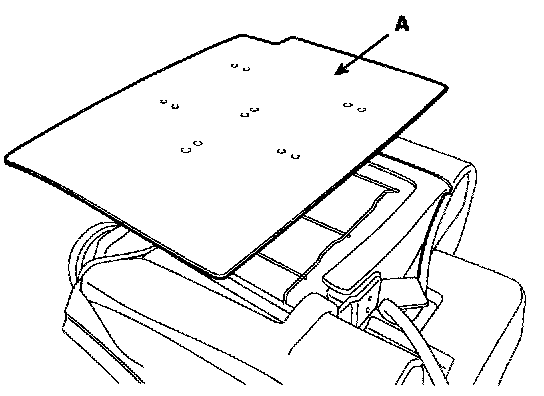

9. Remove the panel (A).

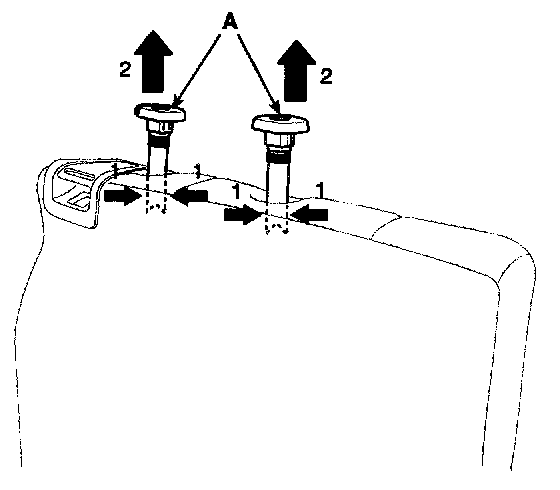

10. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

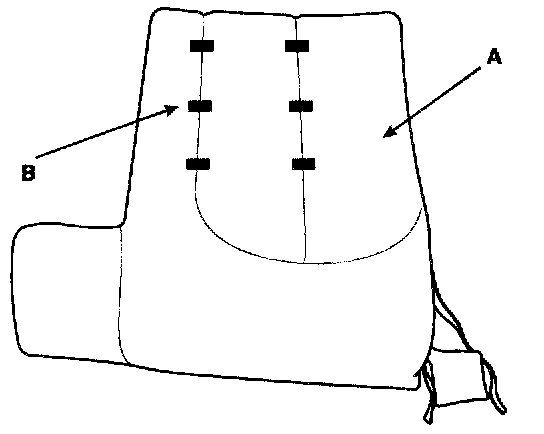

11. After removing the hogring clip (B) on the front of seat cushion and remove the seat cushion cover (A).
12. Installation is the reverse of removal.
