Seat Cushion Cover Replacement

SEAT CUSHION COVER REPLACEMENT

1. Remove front seat assembly.
2. Remove the recliner.

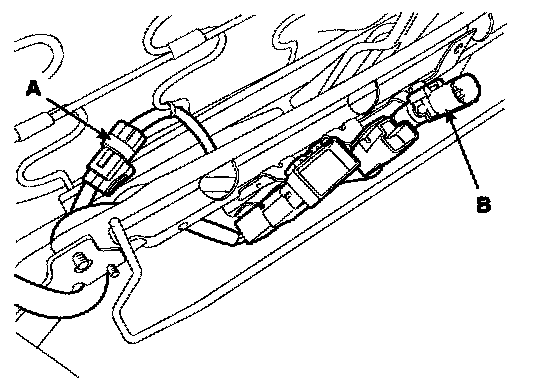

3. Disconnect the heater connector (A) and airbag connector (B).

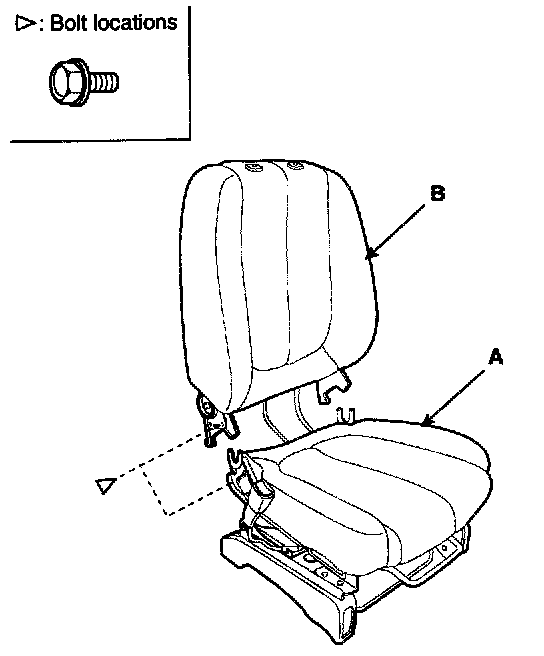

4. Disconnect the seat cushion assembly (A) and seat back assembly (B).

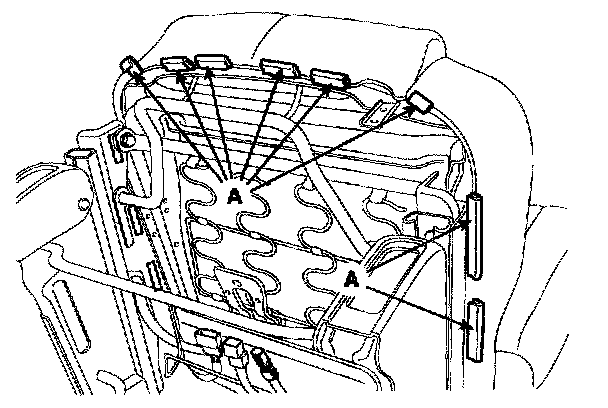

5. After disconnect the protector (A), then remove the seat cushion (B).

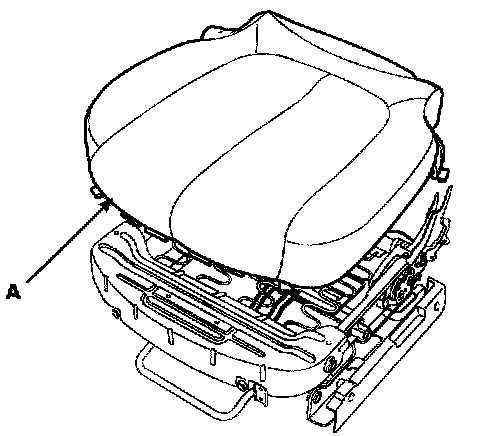

6. Disconnect the heater connector and remove the seat cushion (A).

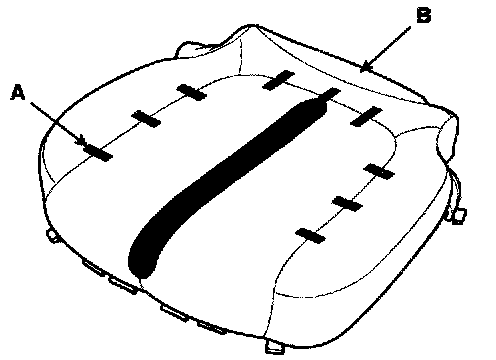

7. Remove the hogring clip (A) on the front of the seat cushion and remove the seat cushion cover (B).






8. Installation is the reverse of removal.
