Recliner Cover Replacement

RECLINER COVER REPLACEMENT

DRIVER'S

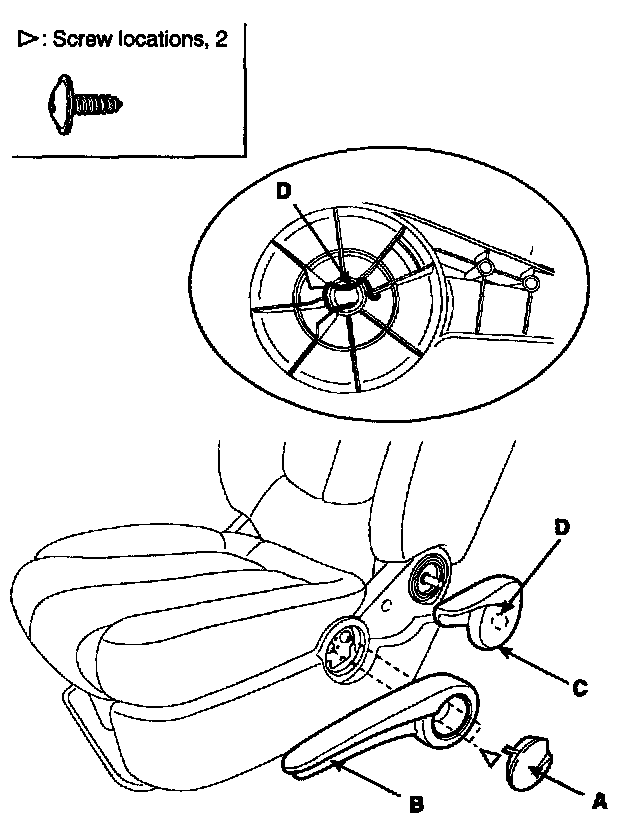

1. Remove the clip (D).
2. Remove the recliner lever (C).
3. Using a screw driver, remove the recliner lever cab (A).
4. After loosening the height lever mounting screw, then remove the height lever (B).

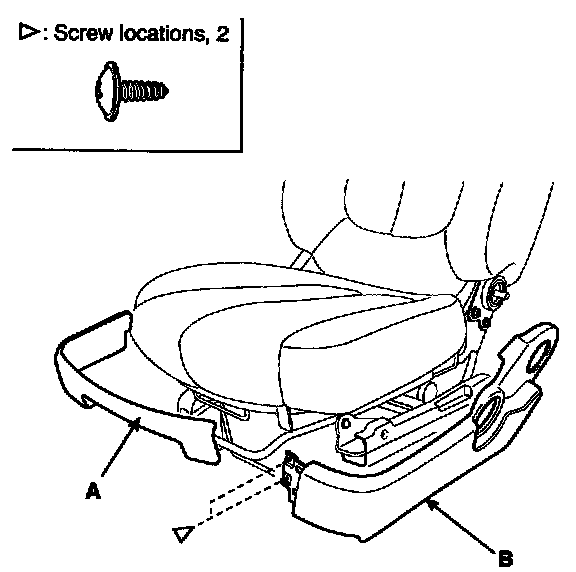

5. Remove the front cover (A).
6. After loosening the mounting screws, then remove the recliner cover (B).






7. Installation is the reverse of removal.
