Seat Cushion Cover Replacement

SEAT CUSHION COVER REPLACEMENT

1. Remove front seat assembly.
2. Remove the recliner cover.
3. Disconnect the heater connector (A) and airbag connector (B).

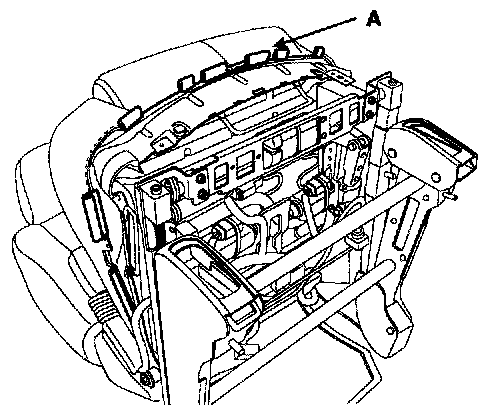

4. Disconnect the protector (A).

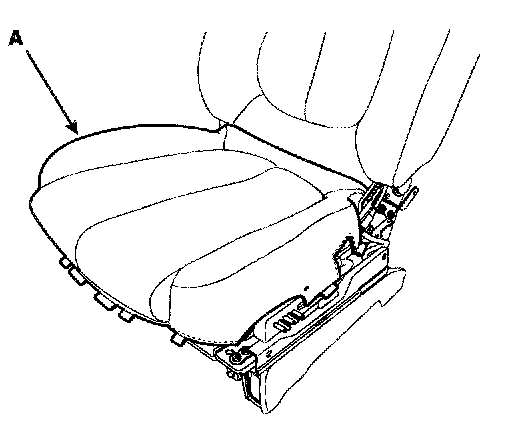

5. Disconnect the heater connector and remove the seat cushion (A).

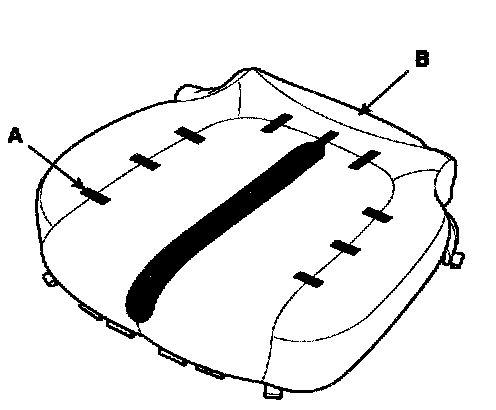

6. After removing the hog ring clip (A) on the front of seat cushion and remove the seat cushion cover (B).






7. Installation is the reverse of removal.
