Recliner Cover Replacement

RECLINER COVER REPLACEMENT

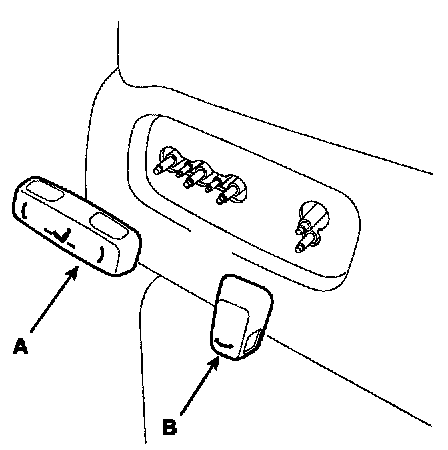

1. Using a screw driver, remove the recliner switch (A), sliding switch (B).

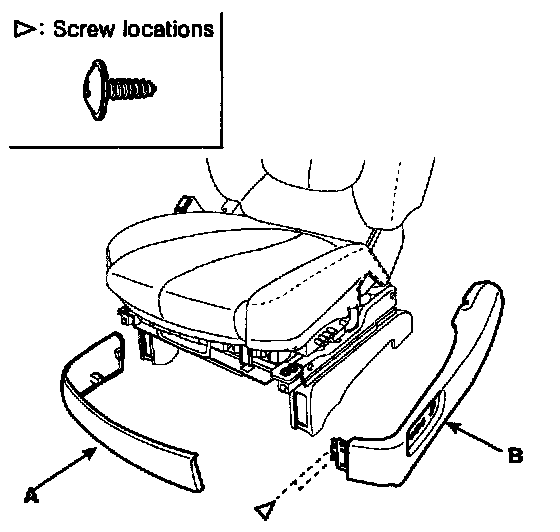

2. Remove the front cover (A).
3. After loosening the mounting screws, then remove the recliner cover (B).






4. Installation is the reverse of removal.
