Third Seat

SEAT FRAME REPLACEMENT

1. Remove the seat back cover.
2. Remove the seat cushion cover.

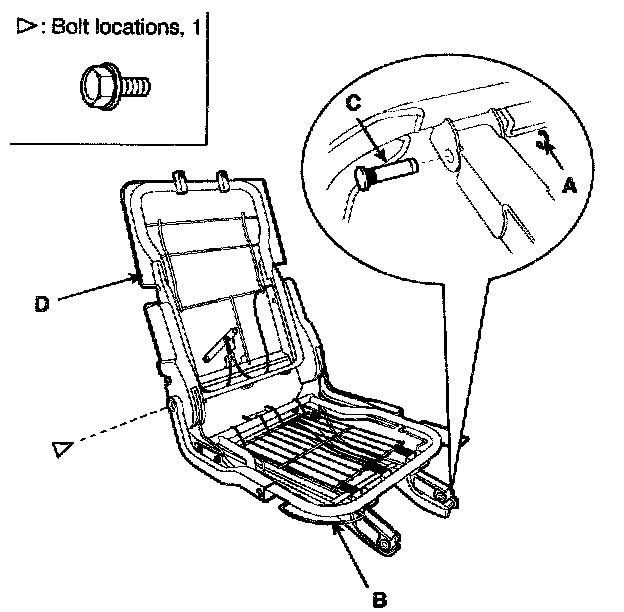

3. Remove the clip (A) and pin (C).
4. After loosening the mounting bolts, then disconnect the seat back frame (D) and seat cushion frame (B).






5. Installation is the reverse of removal.
