Sunroof / Moonroof Panel: Service and Repair

GLASS REPLACEMENT

NOTE: Put on glove to protect your hands.

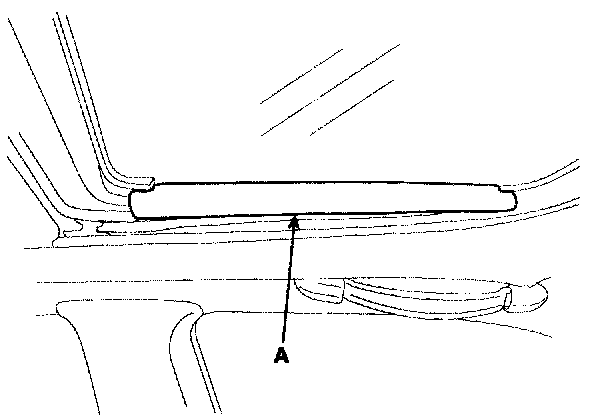

1. Remove both decoration cover (A).

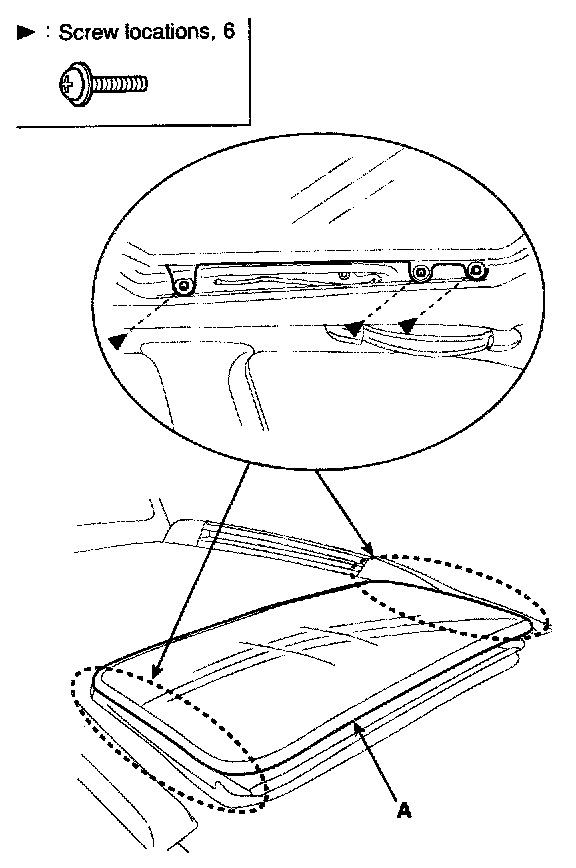

2. Remove the glass (A) by lifting it up.

NOTE: Do not damage the roof panel.






3. Installation is the reverse of removal.
