Sunroof Motor Replacement

SUNROOF MOTOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

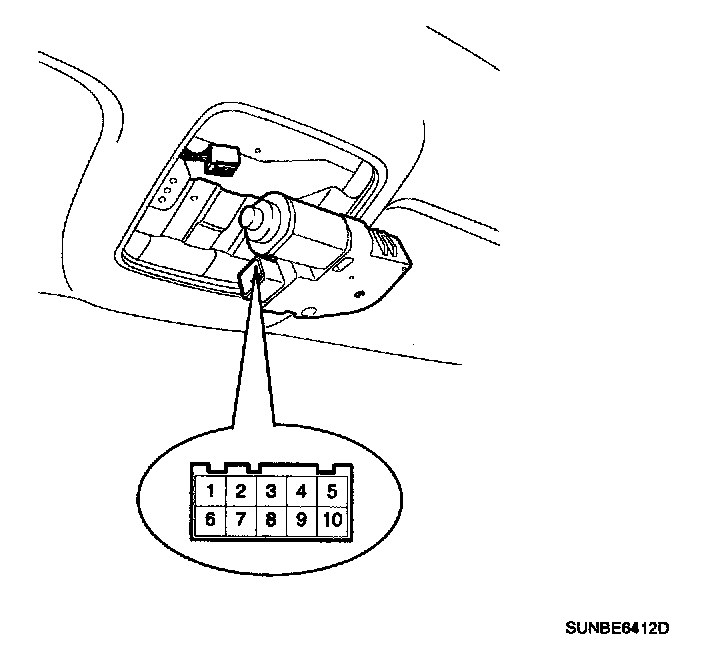

2. Remove the overhead console then remove the sun roof motor mounting screws (3EA). And then remove the sunroof motor after disconnecting the connector (10 Pin).

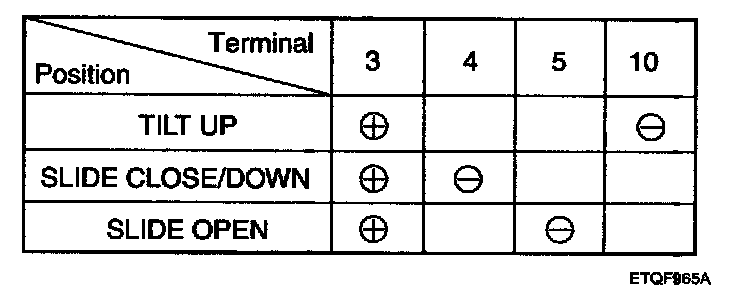

3. Ground the terminals as given table, and check that the sunroof unit operates as given table.

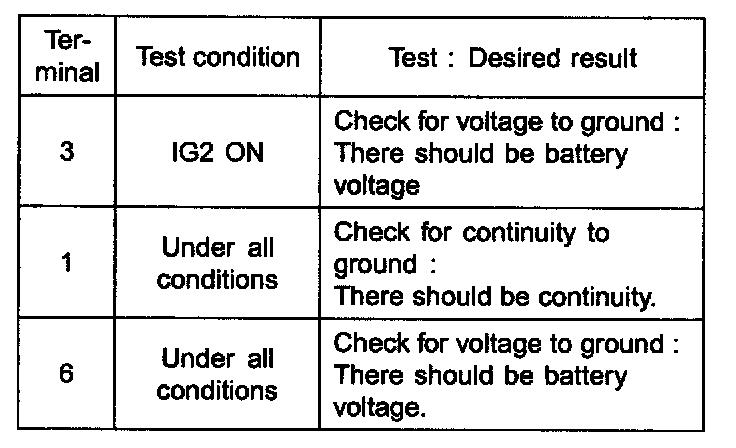

4. Make these input tests at the connector
If any test indicates a problem, find and correct the cause, then recheck the system.
If all the input tests prove OK, the sunroof motor must be faulty; replace it.
