Sun Visor: Service and Repair

SUNVISOR REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

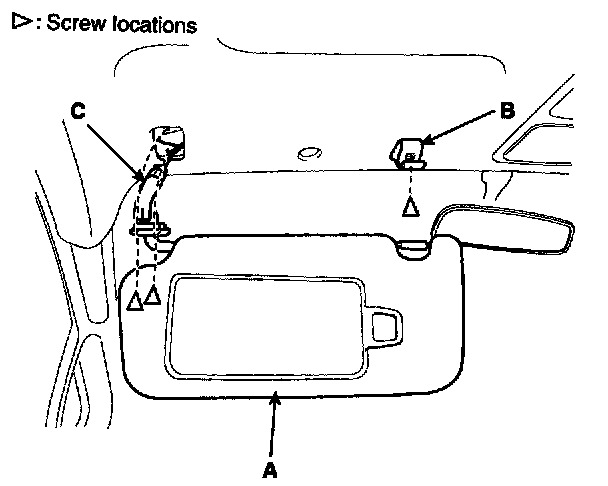

1. Remove the Sunvisor (A) and retainer (B) from each side.
2. Disconnect the connector (C).






3. Installation is the reverse of removal.
