Passenger Assist Handle: Service and Repair

ASSIST HANDLE REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

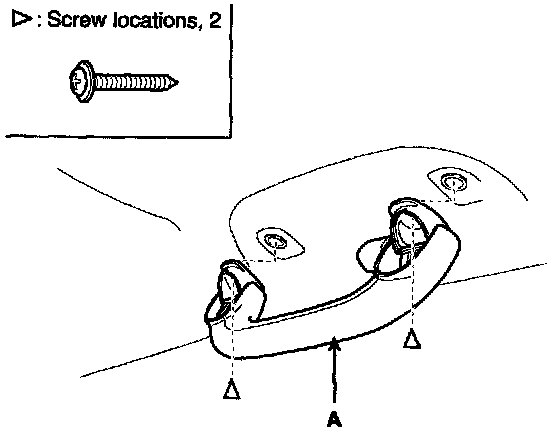

1. Remove the covers, and remove the screws, then remove the assist handle (A).






2. Installation is the reverse of removal.
