Fuel Door Release Actuator: Testing and Inspection

FUEL FILLER DOOR RELEASE ACTUATOR

INSPECTION
1. Remove the rear seat.
2. Remove the luggage side trim.

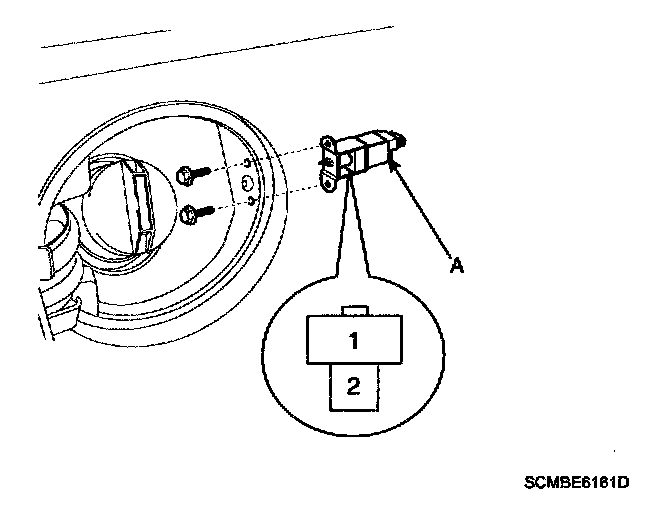

3. Open the fuel filter door and disconnect the wiring connector after loosening 2 bolts.




4. Check for continuity between terminal No. 1 and No. 2. If there is no continuity replace the fuel filler door release actuator (A).
