Front Door Latch: Service and Repair

LATCH ASSEMBLY REPLACEMENT

1. Remove the following parts.
- Door trim.
- Window glass.
- Out side handle.

2. Remove the module assembly.

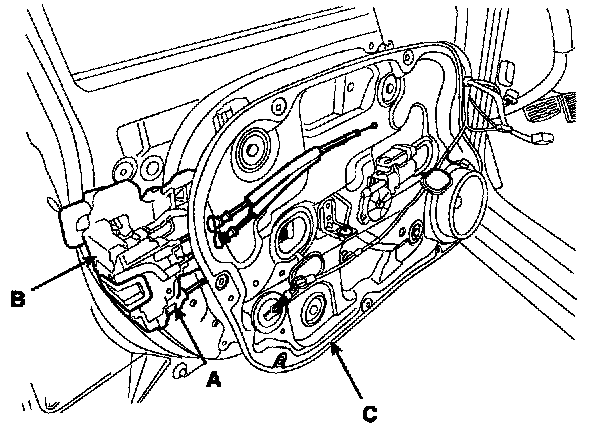

3. Disconnect the latch connector (A), then remove the latch assembly (B).






4. Installation is the reverse the removal.

NOTE: Make sure the door locks and opens properly.
