AUDIO
REMOTE CONTROL
INSPECTION
1.

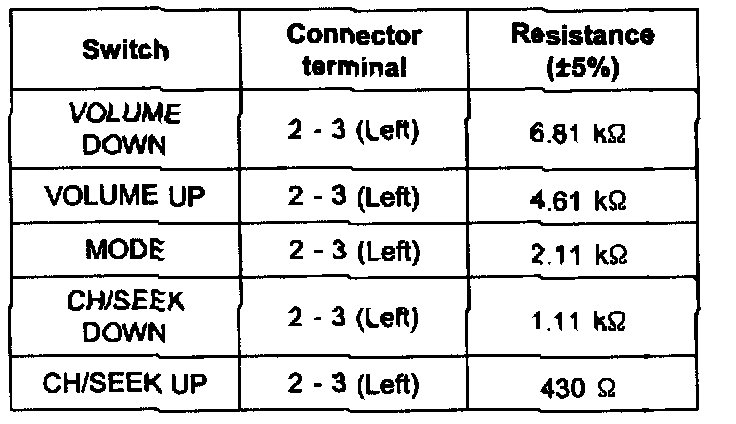

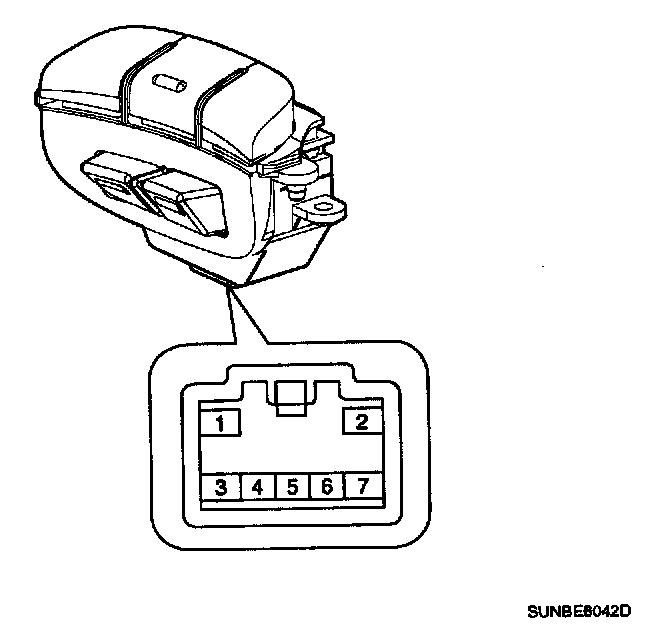

Check for resistance between No.2 and No.3 terminals in each switch position.
