U0100

DTC U0100 CAN MI-COM OR CIRCUIT MAL

COMPONENT LOCATION
Refer to DTC U0001. U0001

GENERAL DESCRIPTION
Refer to DTC U0001. U0001

DTC DESCRIPTION
The TCM reads data on the CAN-BUS line and checks whether the data is equal to the data which the TCM sent before. If the data is not the same the TCM decides that either the CAN-BUS line or TCM are malfunctioning and sets this code.

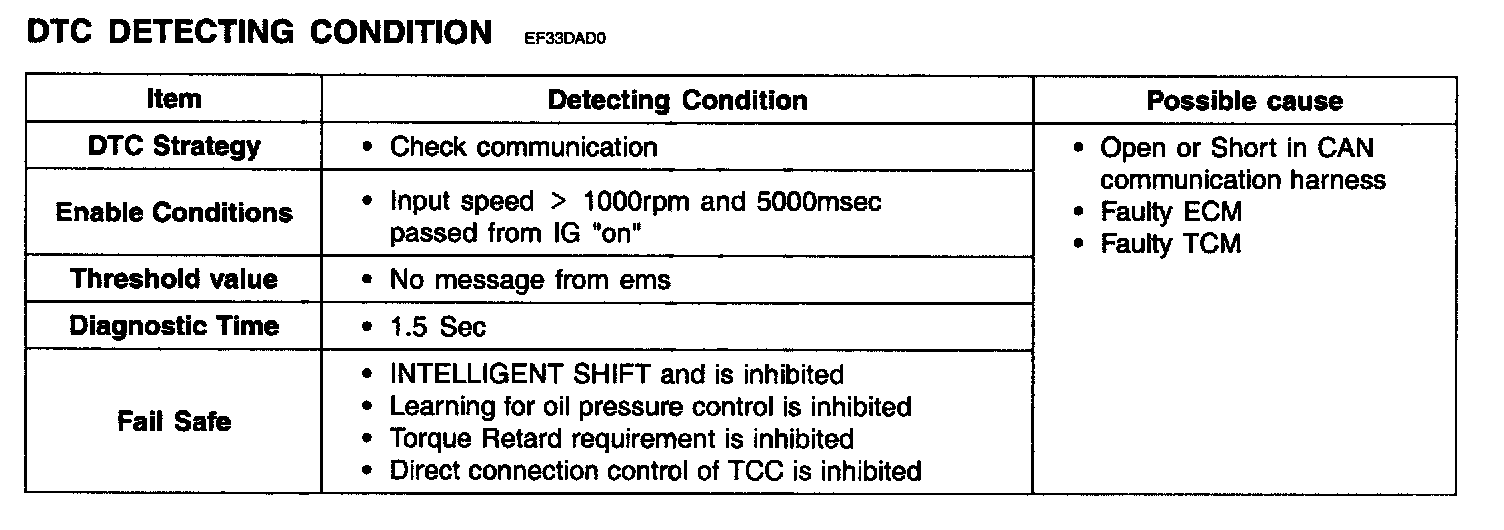

DTC Detecting Condition:

MONITOR SCANTOOL DATA
Refer to DTC U0001. U0001

TERMINAL & CONNECTOR INSPECTION
Refer to DTC U0001. U0001

SIGNAL CIRCUIT INSPECTION
Refer to DTC U0001. U0001

VERIFICATION OF VEHICLE REPAIR
Refer to DTC U0001. U0001
