P0743

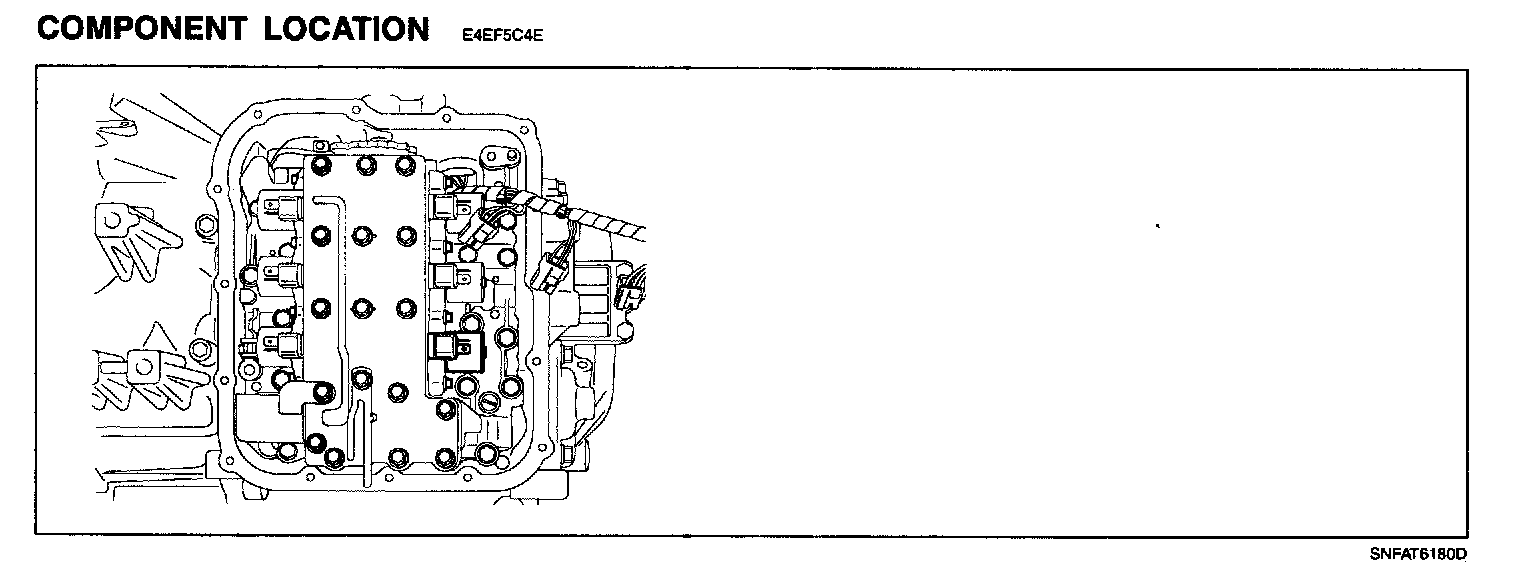

DTC P0743 TORQUE CONVERTER CLUTCH CIRCUIT - ELECTRICALComponent Location:
GENERAL DESCRIPTION
Refer to DTC P0741. P0741
DTC DESCRIPTION
The PCM/TCM checks the Damper Clutch Control Signal by monitoring the feedback signal from the solenoid valve drive circuit. If an unexpected signal is monitored (For example, high voltage is detected when low voltage is expected, or low voltage is detected when high voltage is expected) the PCM/TCM judges that DCCSV circuit is malfunctioning and sets this code.

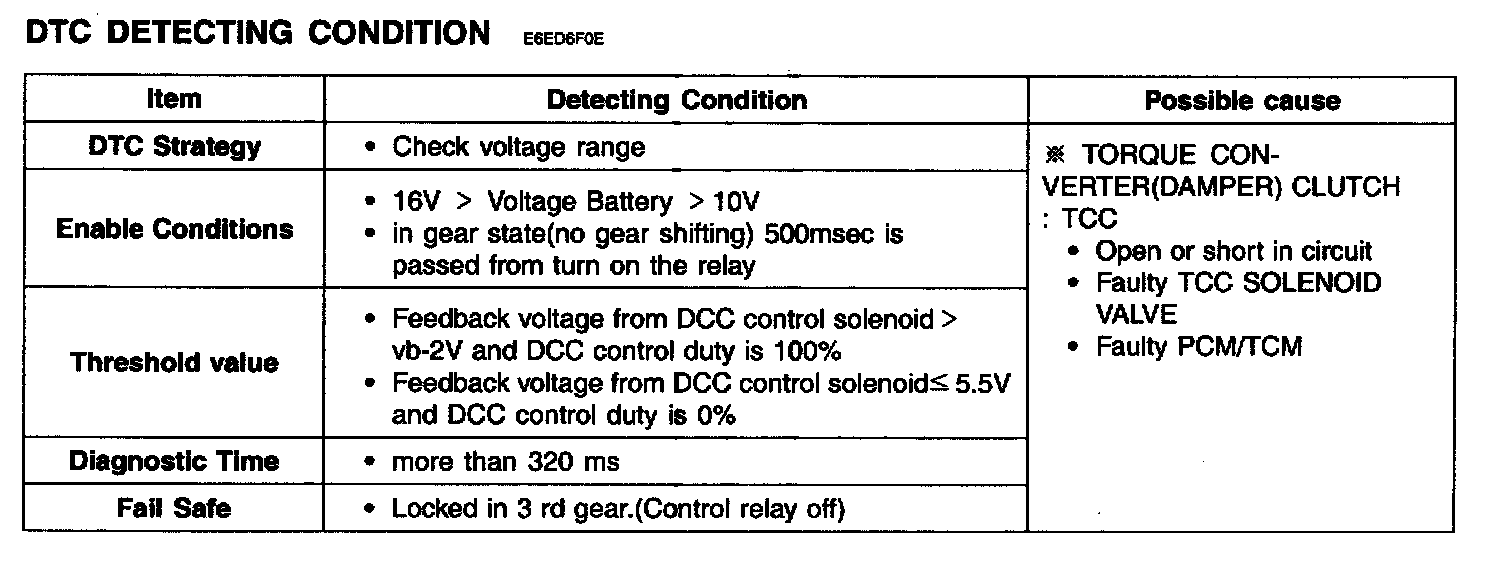

DTC Detecting Condition:
SPECIFICATION
Solenoid Valve for Pressure Control
^ Sensor type: Normal open 3-way
^ Operating temperature: -22-266°F(-30°C-130°C)
^ Frequency:
- LR, 2ND, UD, OD, RED: 61.27Hz (at the ATF temp. -20°C above)
- DCC: 30.64Hz
KM series: 35Hz
^ Internal resistance:
- 2.7-3.4Ohms (68°F or 20°C)
^ Surge voltage: 56 V

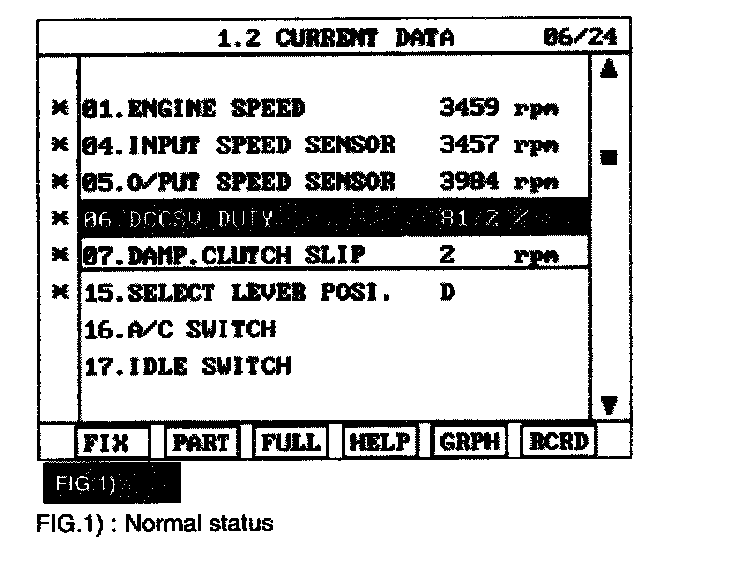

MONITOR SCANTOOL DATA
1. Connect Scantool to data link connector(DLC).
2. Engine "ON".
3. Monitor the "TCC SOL. VALVE" parameter on the Scantool
4. Select "D RANGE" and Operate "TCC SOLENOID DUTY" more than 85%.
5. Does "TCC SOLENOID DUTY" follow the reference data?
YES
^ Fault is intermittent caused by poor contact in the sensor's and/or TCM(PCM)'s connector or was repaired and TCM(PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "Verification of vehicle repair" procedure.
NO
^ Go to "Terminal & connector inspection" procedure.
TERMINAL & CONNECTOR INSPECTION
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
^ Repair as necessary and then go to "Verification of vehicle repair" procedure.
NO
^ Go to "Power supply circuit inspection" procedure.
POWER SUPPLY CIRCUIT INSPECTION
1. Disconnect "A/T SOLENOID VALVE" connector.
2. Measure voltage between terminal "6" of the sensor harness connector and chassis ground.
3. Turn ignition switch OFF -> ON.
C307:
4. Is voltage within specifications?
YES
^ Go to "Signal circuit inspection" procedure.
NO
^ Check that A/T -20A fuse in engine room junction is installed or not blown.
^ Check for open in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.
SIGNAL CIRCUIT INSPECTION
1. Check signal circuit open inspection.
1) Ignition "OFF".
2) Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

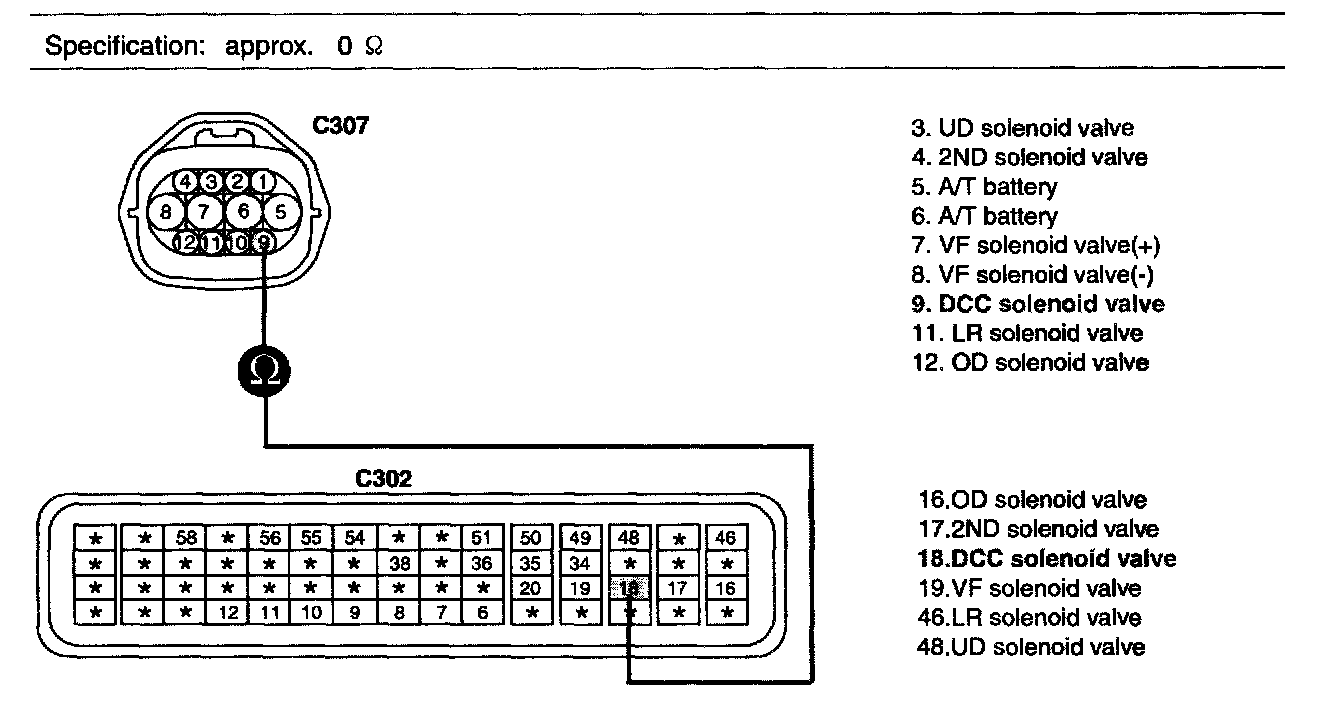

3) Measure resistance between terminal "9" of the ATM SOLENOID VALVE harness connector and terminal "18" of the TCM harness connector.
C307/C302:
4) Is resistance within specifications?
YES
^ Go to "Check signal circuit short inspection" procedure.
NO
^ Check for open in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.
2. Check signal circuit short inspection
1) Ignition "OFF".
2) Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

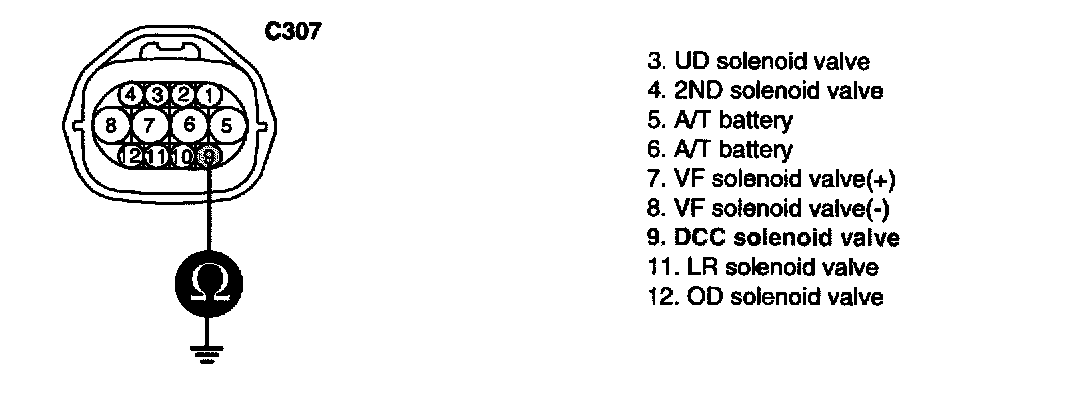

3) Measure resistance between terminal "9" of the ATM SOLENOID VALVE harness and chassis ground.
Specification: Infinite
C307:
4) Is resistance within specifications?
YES
^ Go to "Component inspection" procedure.
NO
^ Check for short to ground in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.
COMPONENT INSPECTION
1. CHECK SOLENOID VALVE
1) Ignition "OFF".
2) Disconnect "A/T SOLENOID VALVE" connector.

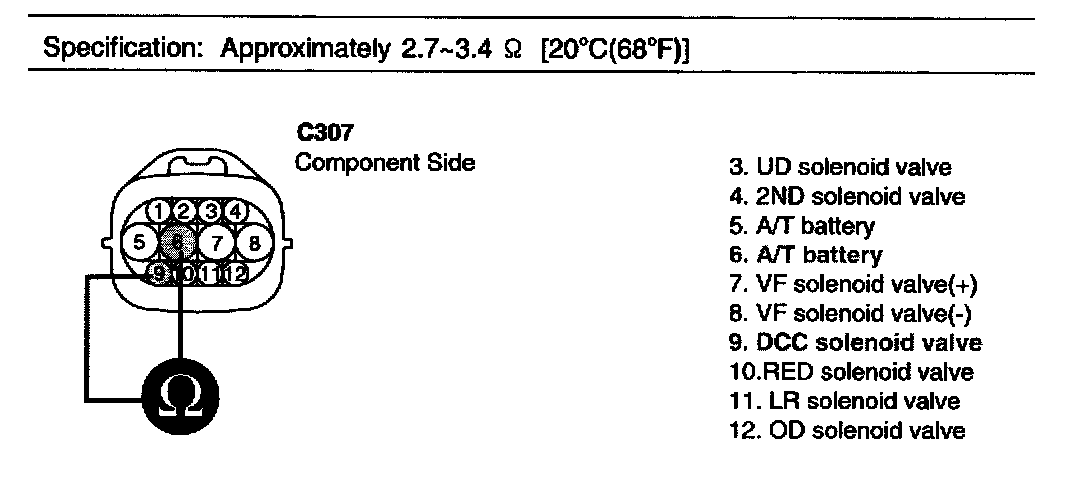

3) Measure resistance between terminal "6" and terminal "9" of the ATM SOLENOID VALVE harness connector.
C307:
4) Is resistance within specification?
YES
^ Go to "CHECK PCM/TCM" as below.
NO
^ Replace TCC SOLENOID VALVE as necessary and go to "Verification of vehicle repair procedure.
2. CHECK PCM/TCM
1) Connect Scantool to data link connector(DLC).
2) Ignition "ON" & Engine "OFF".
3) Select A/T solenoid valve actuator test and operate actuator test.
4) Can you hear operating sound for TCC SOLENOID VALVE actuator testing function?
YES
^ Go to "Verification of vehicle repair" procedure.
NO
^ Replace PCM/TCM as necessary and Go to "Verification of Vehicle Repair" procedure.
ACTUATOR TEST CONDITION
1. IG SWITCH ON
2. TRANSAXLE RANGE SWITCH is normal
3. P RANGE
4. Vehicle Speed 0mph(0km/h)
5. Throttle position sensor < 1V
6. IDLE SWITCH ON
7. ENGINE RPM 0
VERIFICATION OF VEHICLE REPAIR
After a repair, it is essential to verify that the fault has been corrected.
1. Connect Scantool and select "Diagnostic Trouble Codes(DTCs)" mode.
2. Using a Scantool, Clear DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTCs present?
YES
^ Go to the applicable troubleshooting procedure.
NO
^ System performing to specification at this time.
