Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".

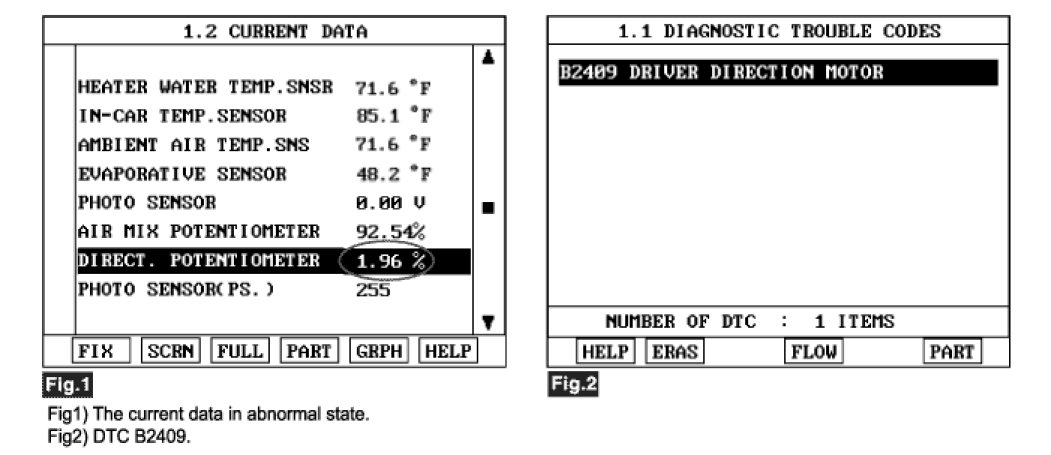

3. Monitor the "DR DIRECTION POTENTIO" parameter on the scantool. While operating mode switch.




4. Are the DTC B2409 present and is parameter of "DR DIRECTION POTENTIO" fixed ?
** There is any fault in DR Direction Motor. If the parameter of "DR DIRECTION POTENTIO" is 10% or less on "VENT" mode or If the parameter is 90% or more on "DEF" mode.
YES
1) Go to "W/Harness Inspection" procedure.
NO
1) Fault is intermittent caused by poor contact in the sensor's and/or A/C control unit's connector or was repaired and A/C control unit memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
