Component Tests and General Diagnostics

SERVICE ADJUSTMENT PROCEDURE

TRANSAXLE GEAR OIL LEVEL

INSPECTION
Inspect each component for evidence of leakage.
Check the gear oil level by removing the filler plug.
If the oil is contaminated, it is necessary to replace it with new oil.

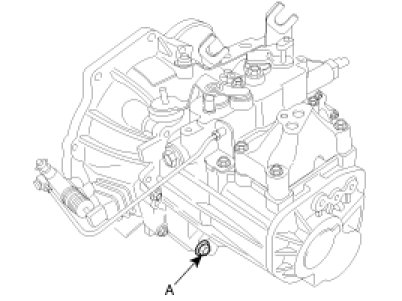

1. Remove oil filler plug(A).




2. Check level with finger.
Oil level must be up to fill the hole, add oil until it runs over.




3. Install filler plug.

Filler plug tightening torque :
60-80 Nm (600-800 kg-cm, 43-58 lb-ft)
