Repair Procedures (M5CF1)

REMOVAL

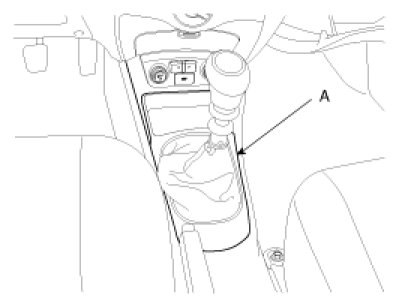

1. Remove the center console(A).

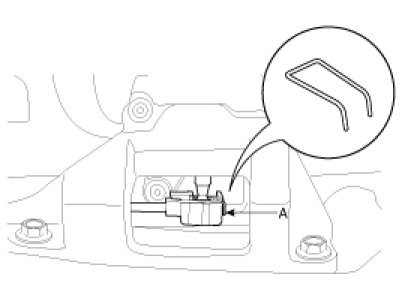

2. Remove the select cable snap pin(A).

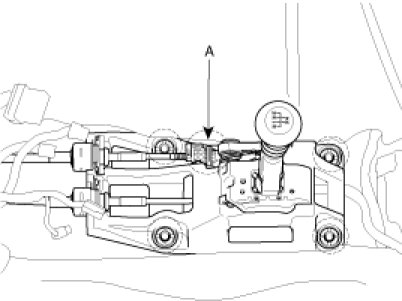

3. Remove the shift cable clip(A).

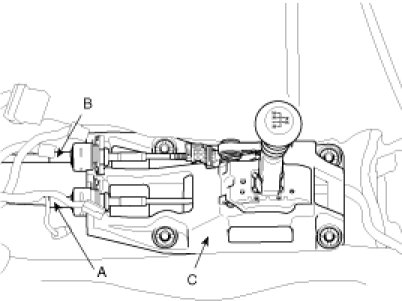

4. Remove the shift cable(A) and select cable(B).

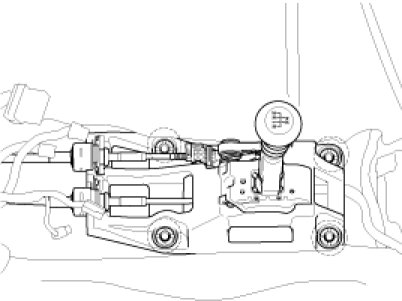

5. Remove the shift lever assembly(C).




6. Remove the retainer(A) and nuts(B).

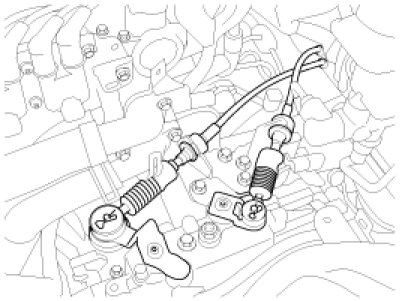

7. Remove the snap pins(2EA).(Transaxle side).




8. Remove the shift cable and select cable.

INSTALLATION

1. Install the shift cable and select cable after locating the shift lever and select lever at the neutral position.

NOTE:
When operating lever of body side, check secure operation of lever of transaxle side after assembly.

2. Install the snap pins(2EA) of transaxle side.




3. Install the shift lever assembly.

TORQUE: 9-14Nm (90-140kgf.cm, 6-9.5lb.ft)




4. Install the shift cable and select cable to the shift lever side.

NOTE:

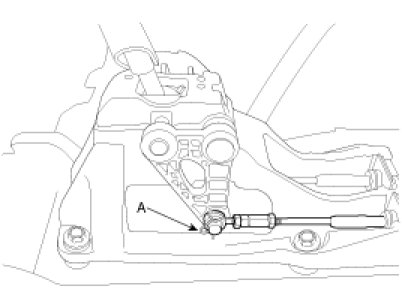

Adjust the cable length with select cable adjuster(A) in "N" position before installing the center console.




5. Install the center console.
