Fluid Diagrams










AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

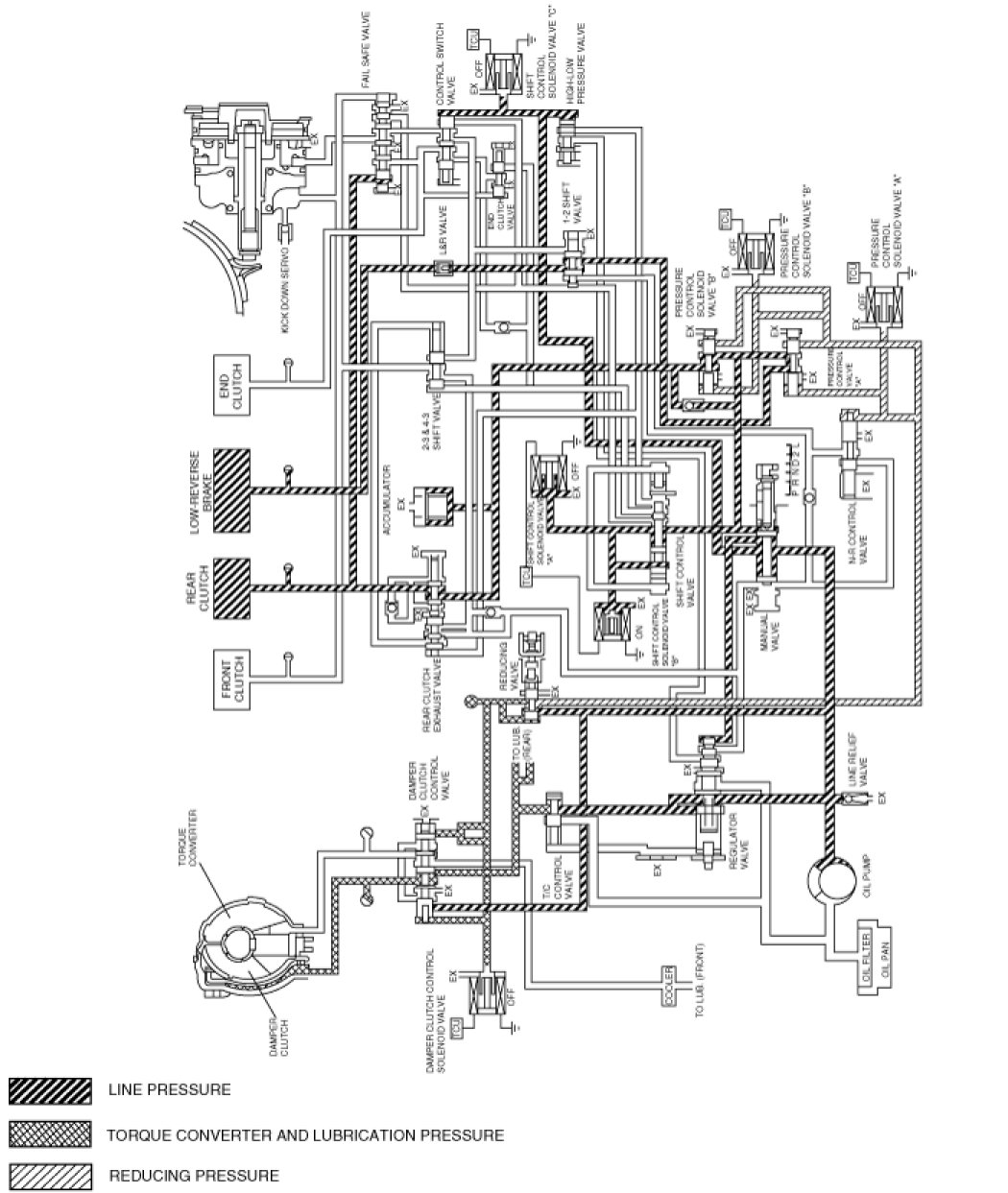

PARKING AND NEUTRAL

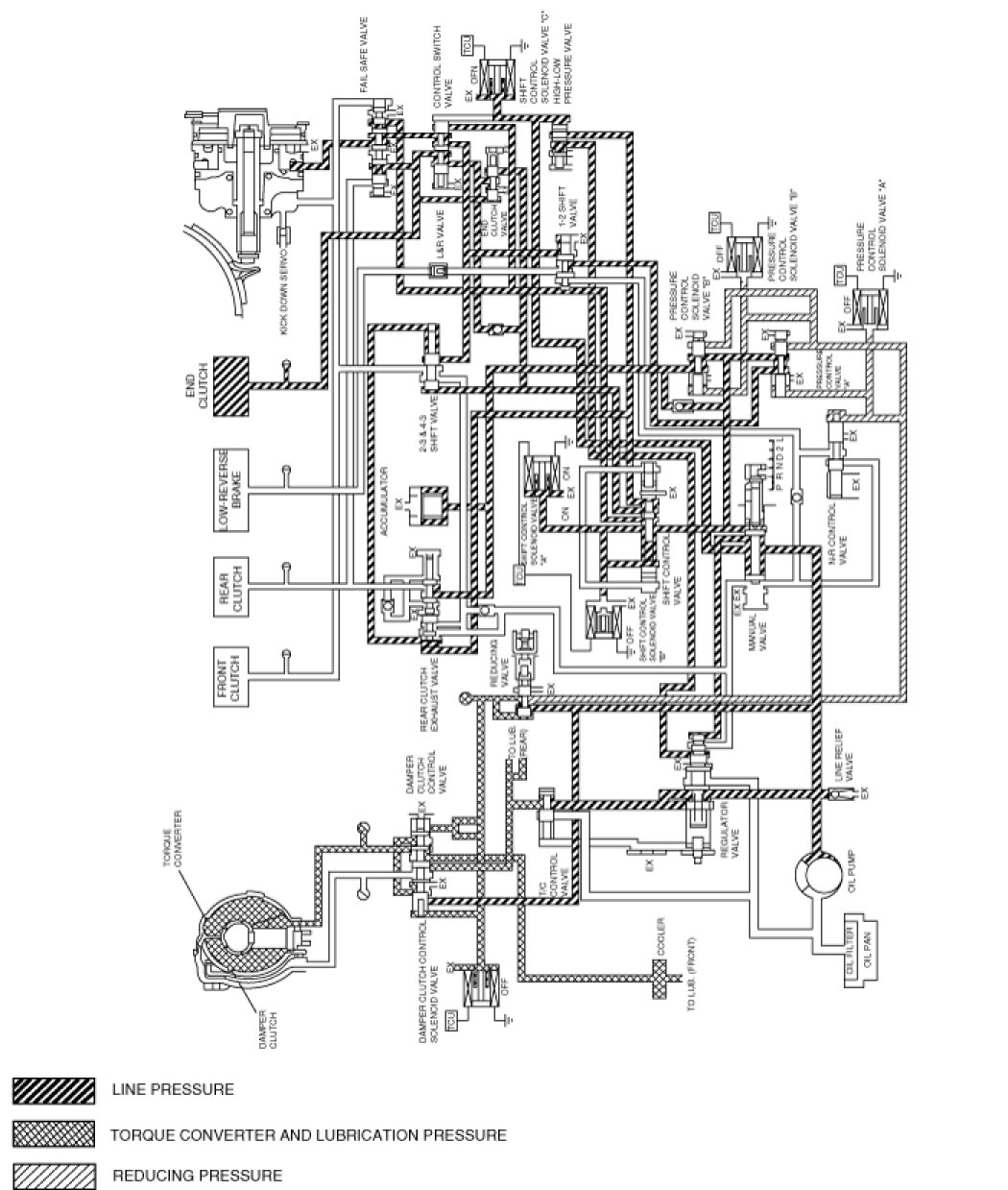

D RANGE(1st)

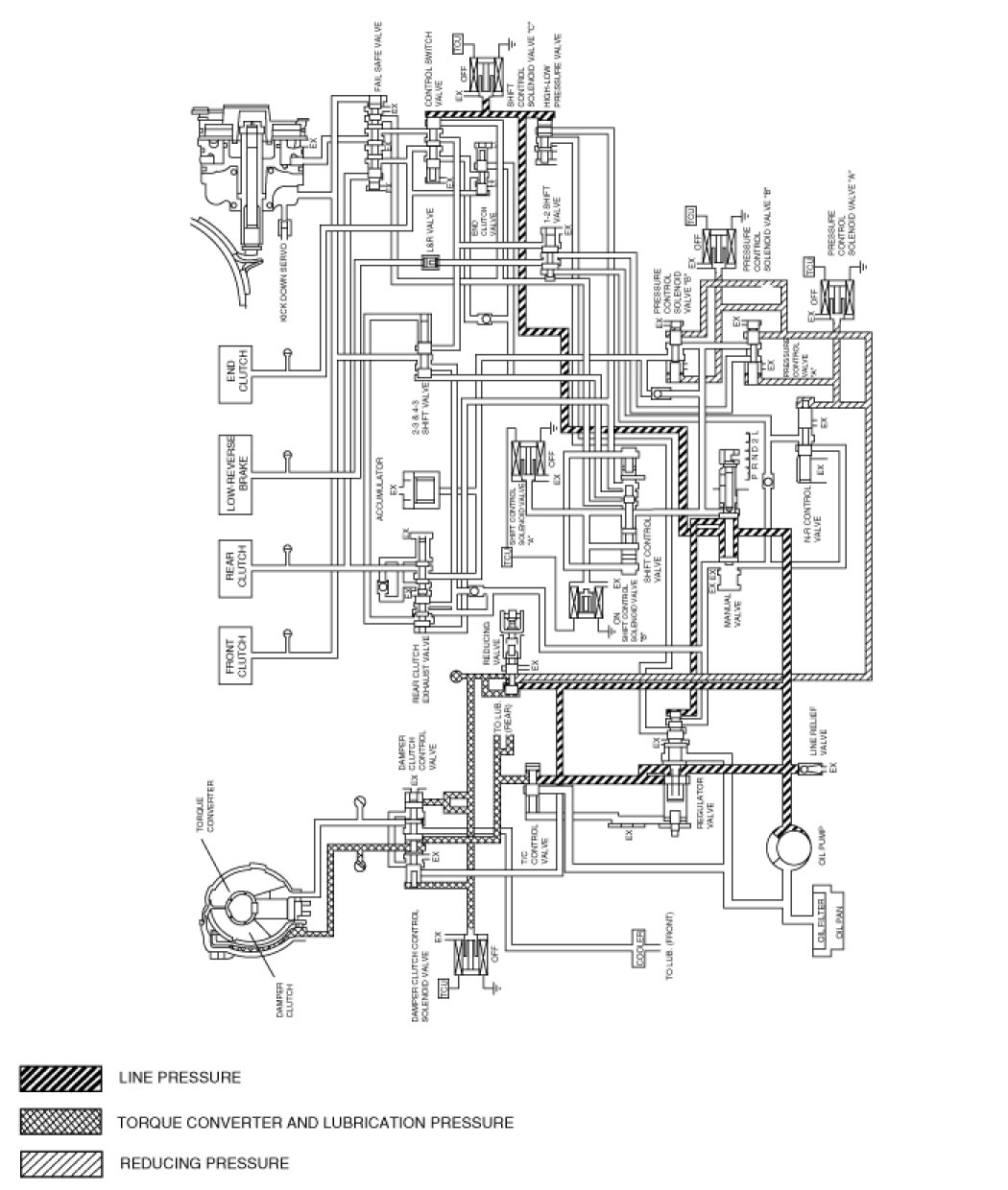

D RANGE(2nd)

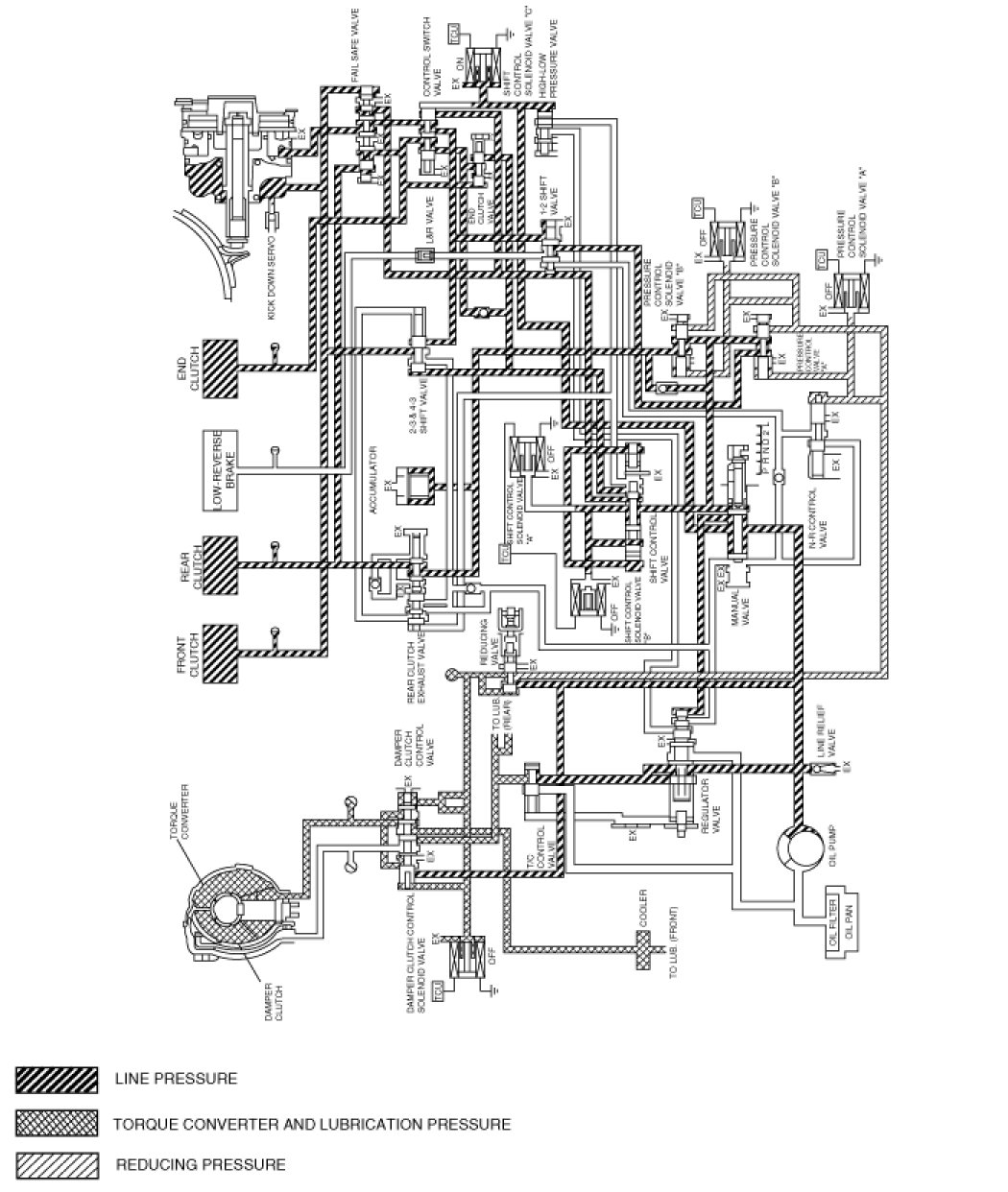

D RANGE(3rd)

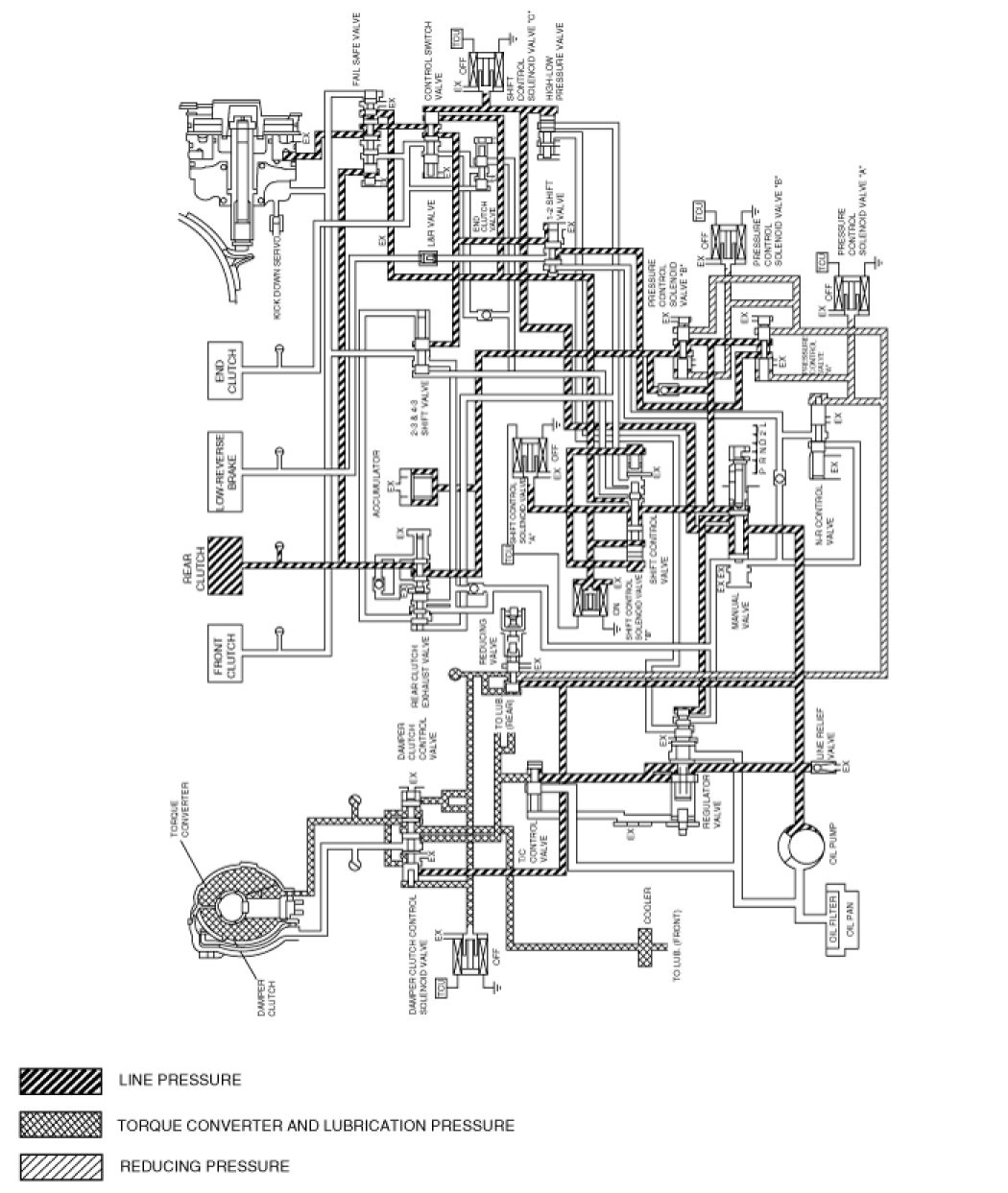

D RANGE(4th)





LOCK

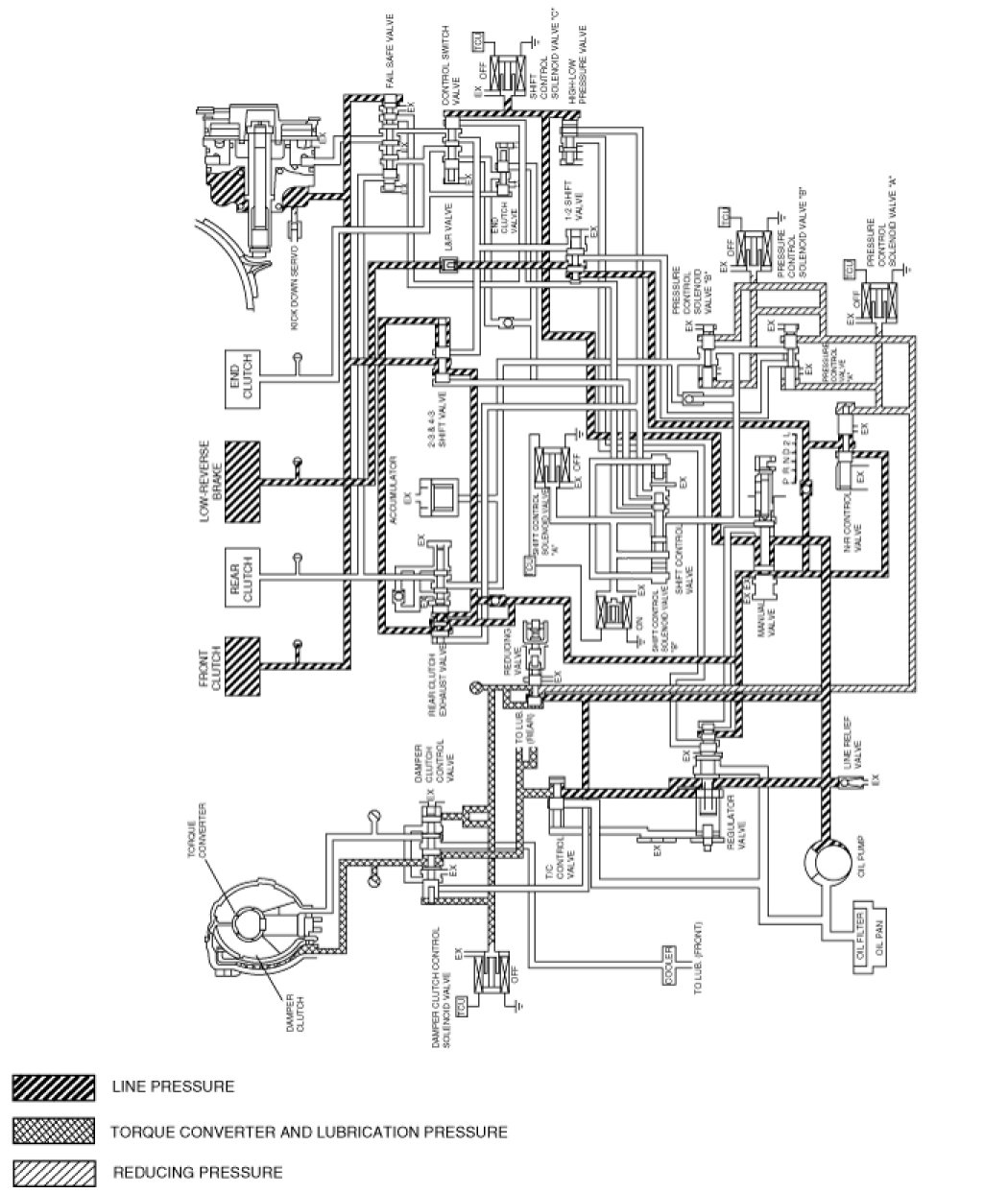

REVERSE
