Home >> Kia >> 2007 >> Rio L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications




SPECIFICATIONS

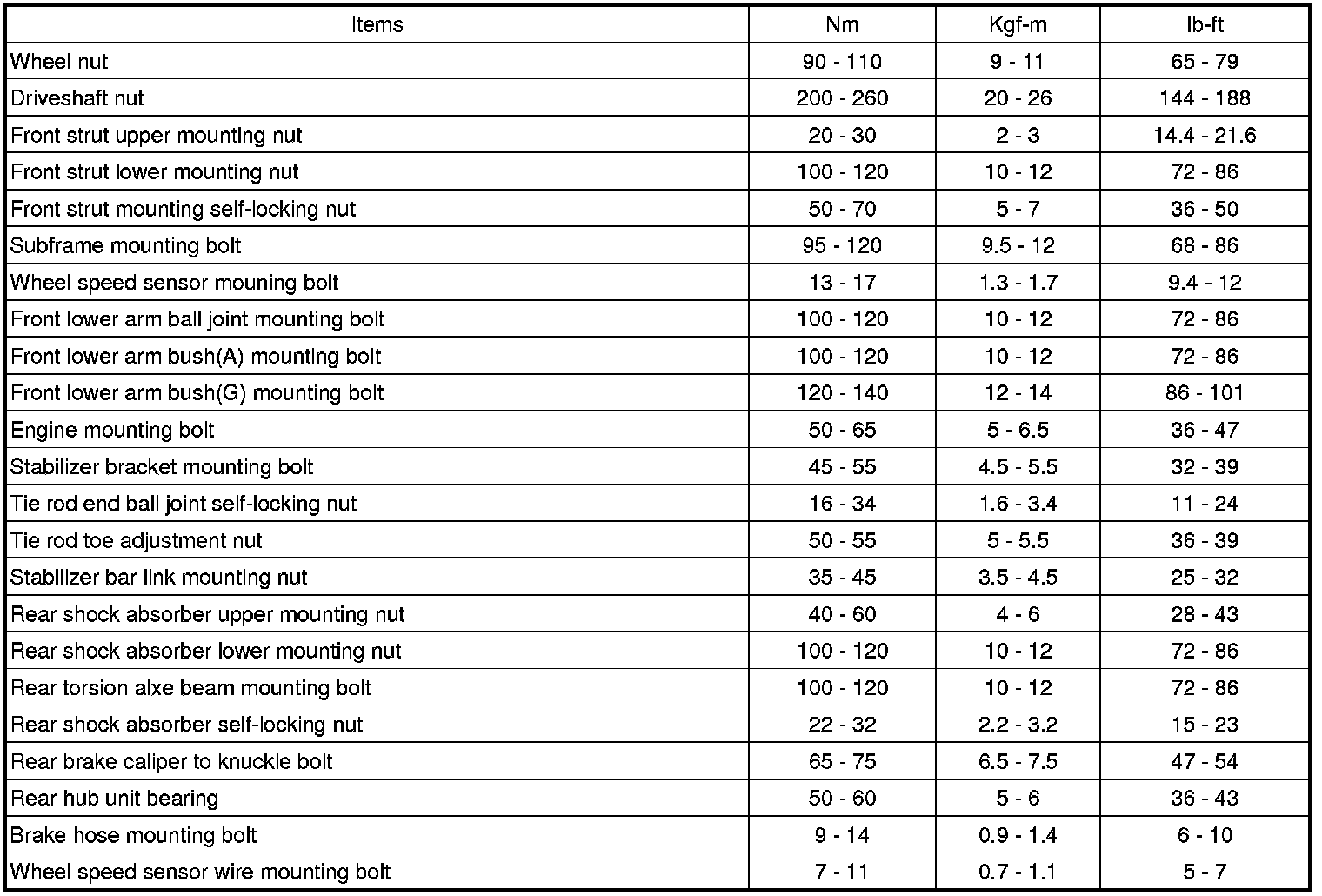

TIGHTENING TORQUE





CAUTION:
Replace the self-locking nuts with new ones after removal.

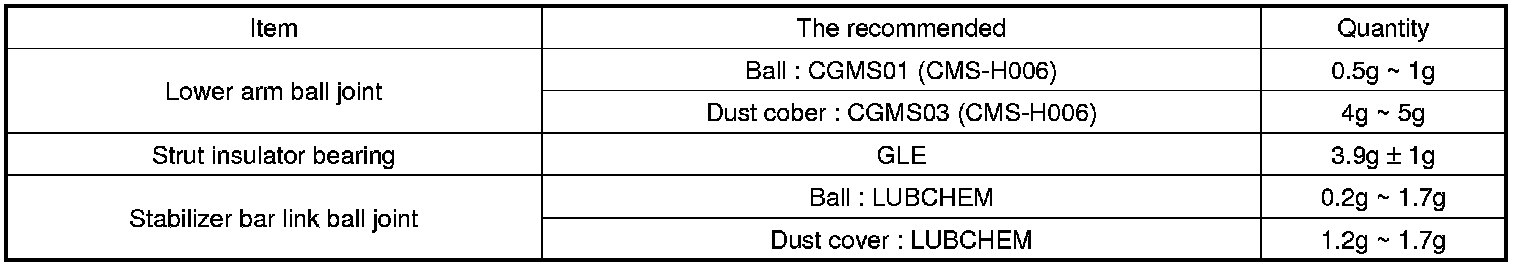

LUBRICANTS
