Backup Lamp Switch: Testing and Inspection

BACKUP LAMP SWITCH

INSPECTION

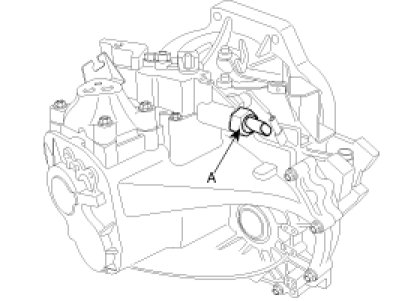

1. Disconnect the backup lamp switch(A).

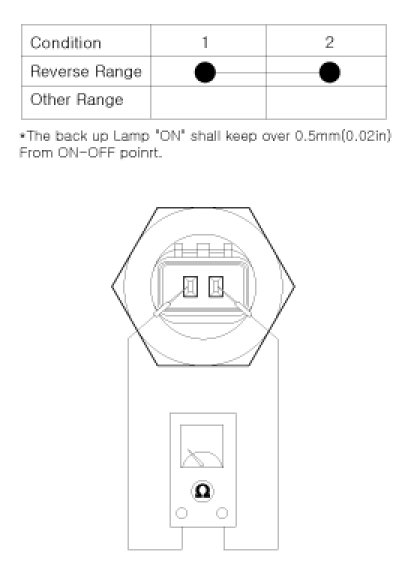

2. Check the continuity between no. 1 and 2 terminals of backup lamp switch.
When the shift lever is in reverse, there should be continuity.




3. If necessary, repair or replace the backup lamp switch.
