Connector Views
Connector Views
SRSCM CONNECTOR TERMINAL
SRSCM HARNESS CONNECTOR

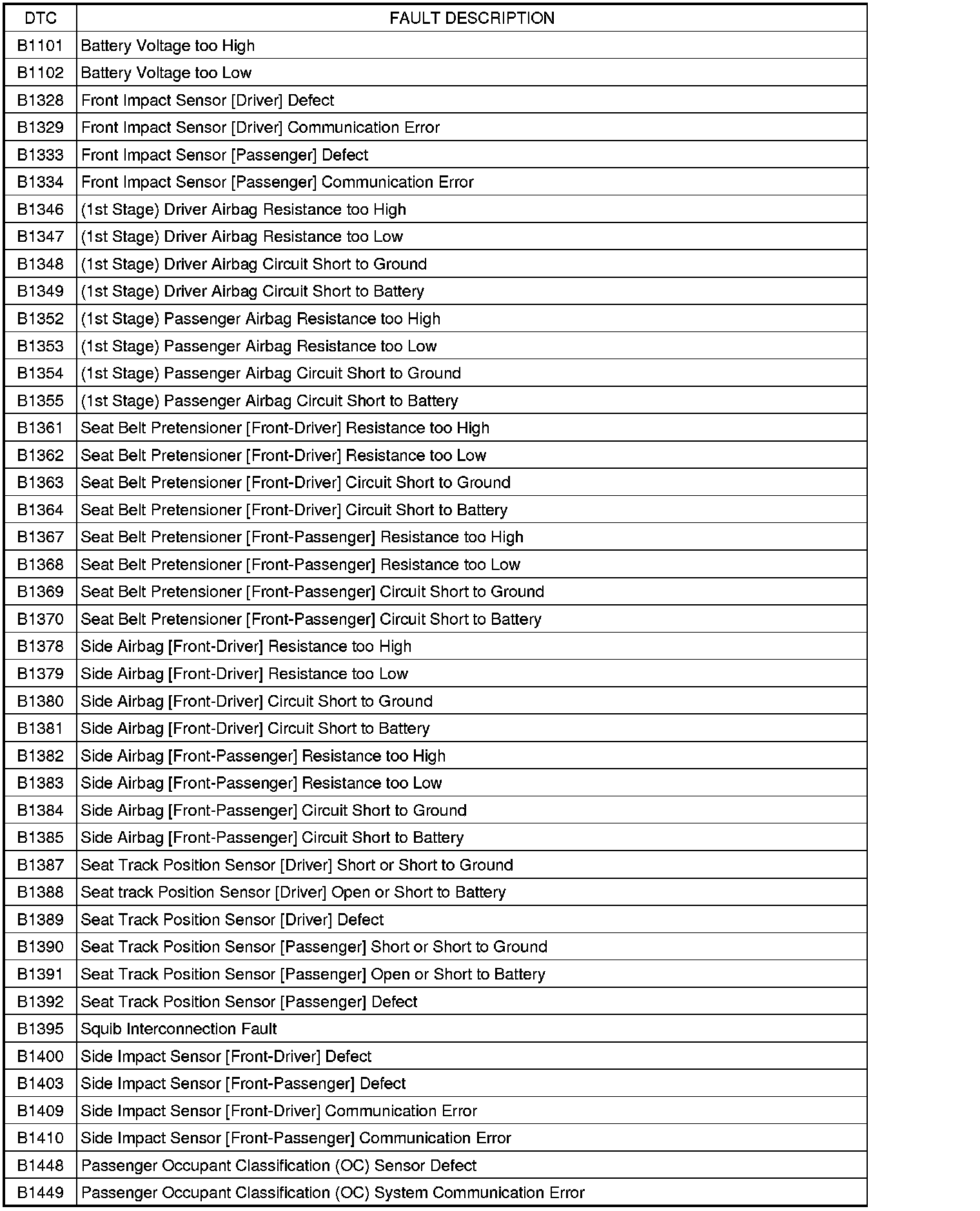

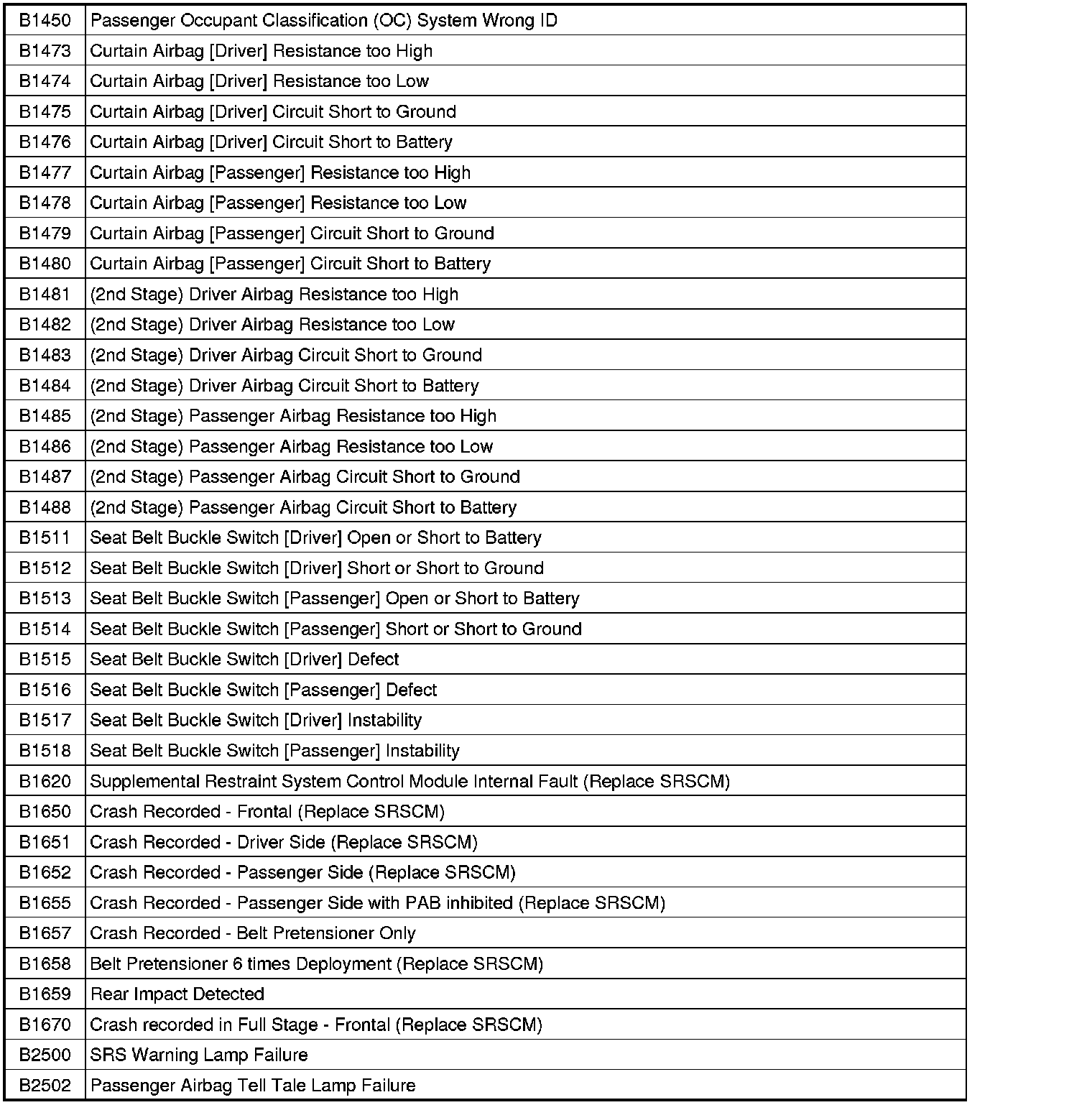

DIAGNOSTIC TROUBLE CODES (DTC)
