Air Bag: Service Precautions

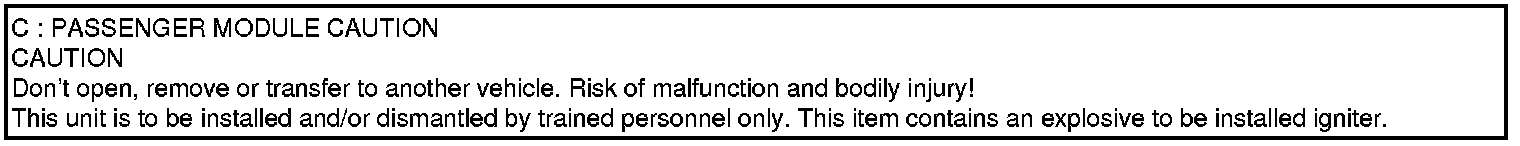

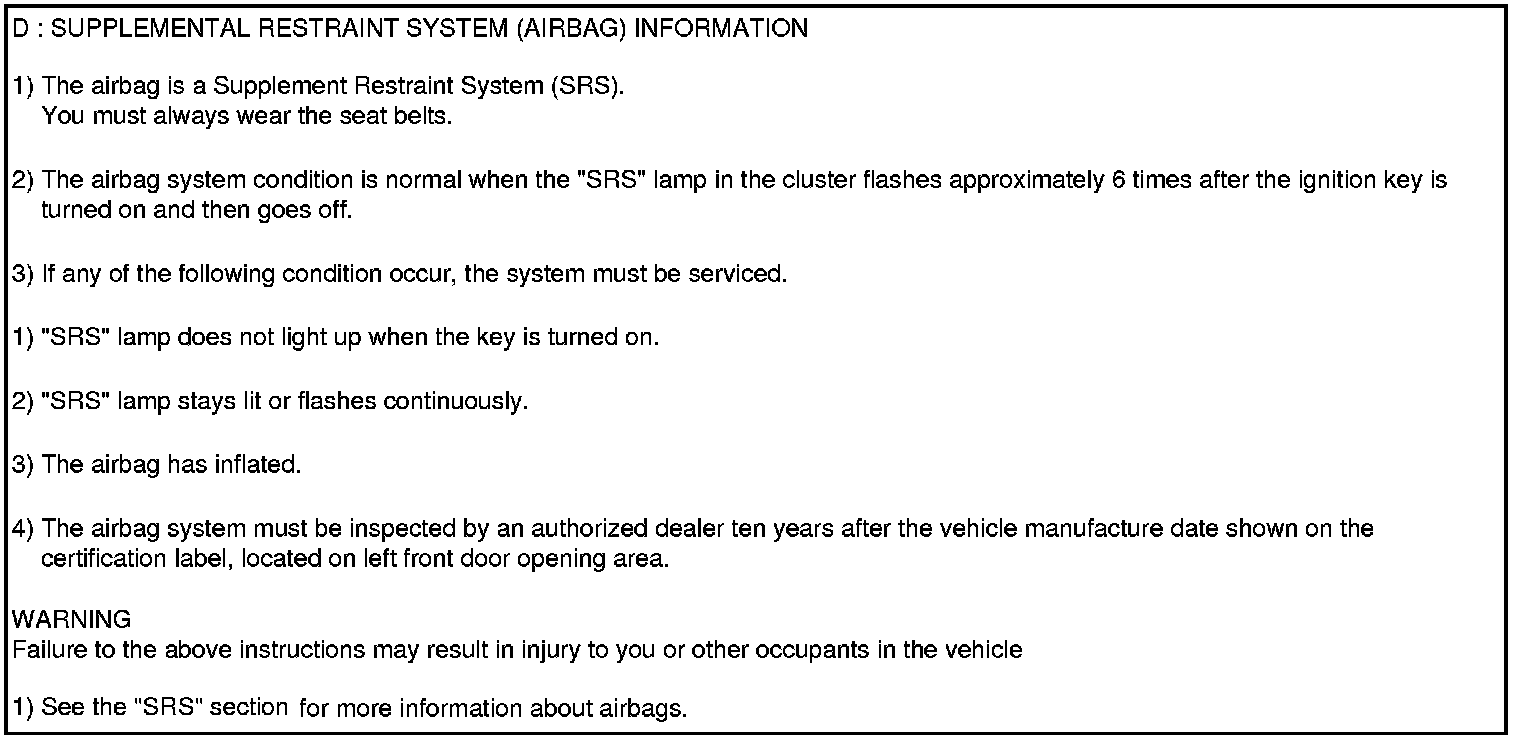

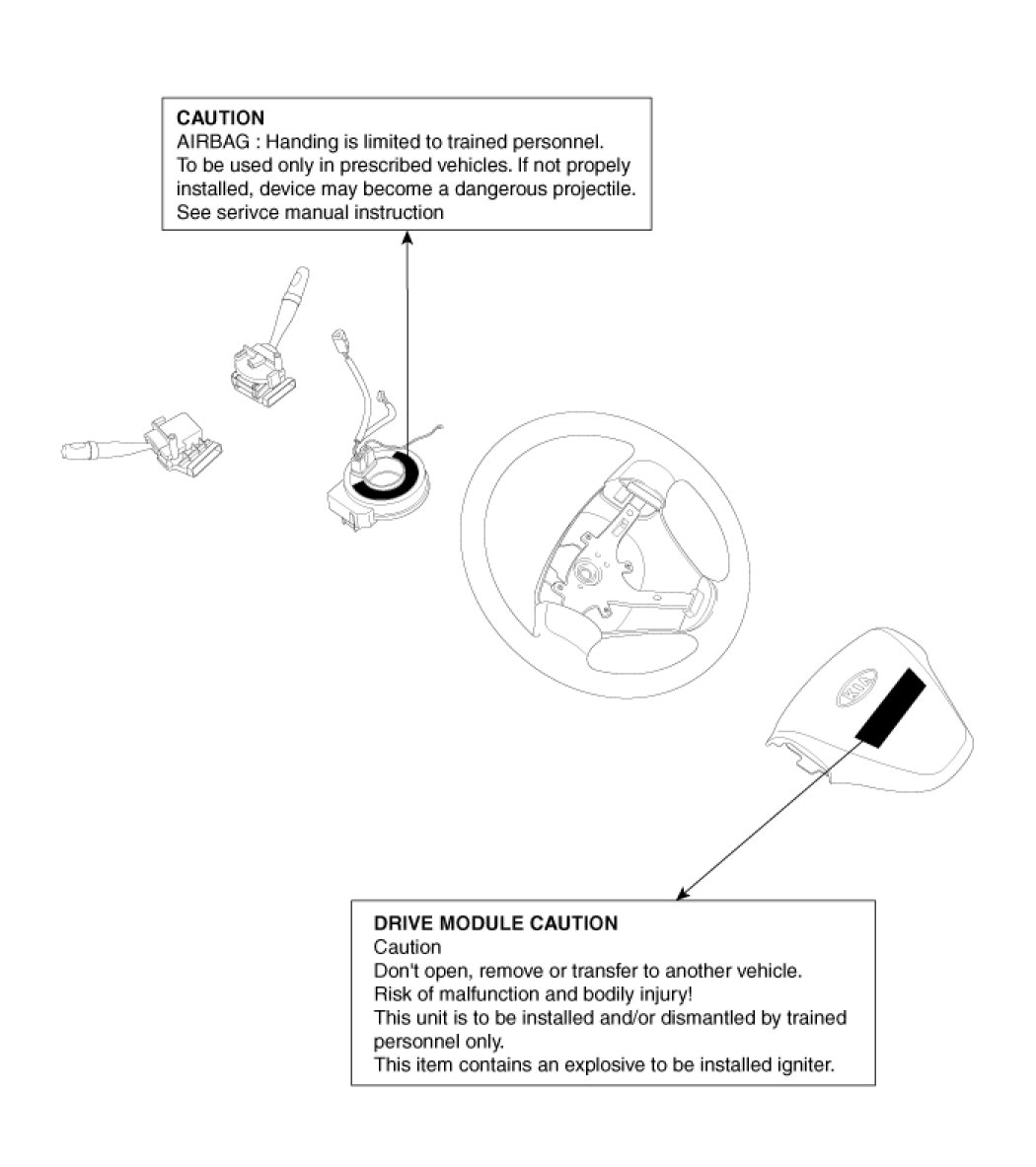

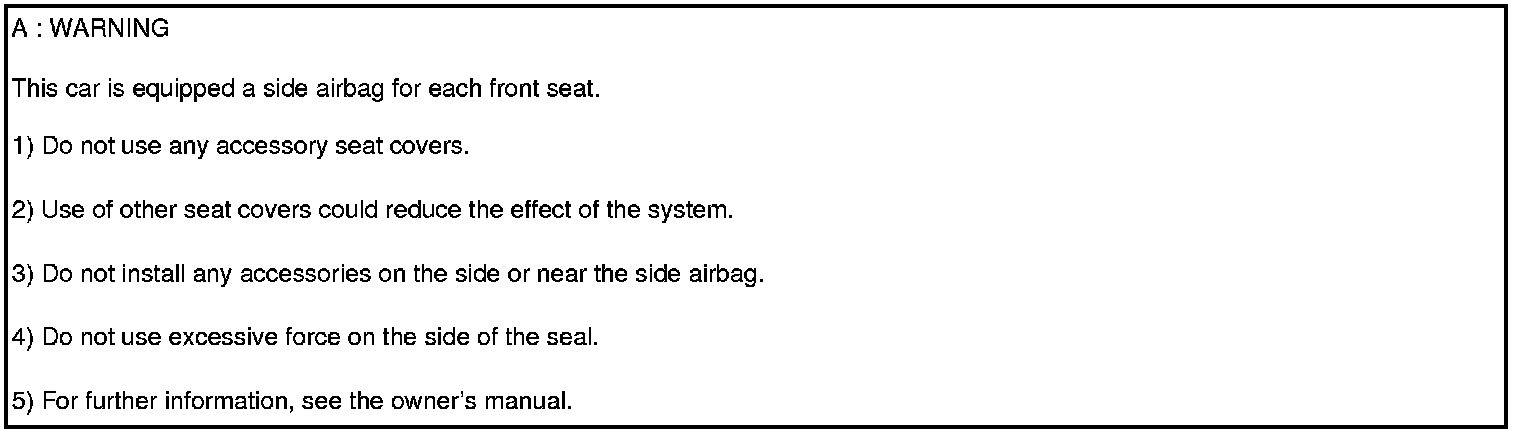

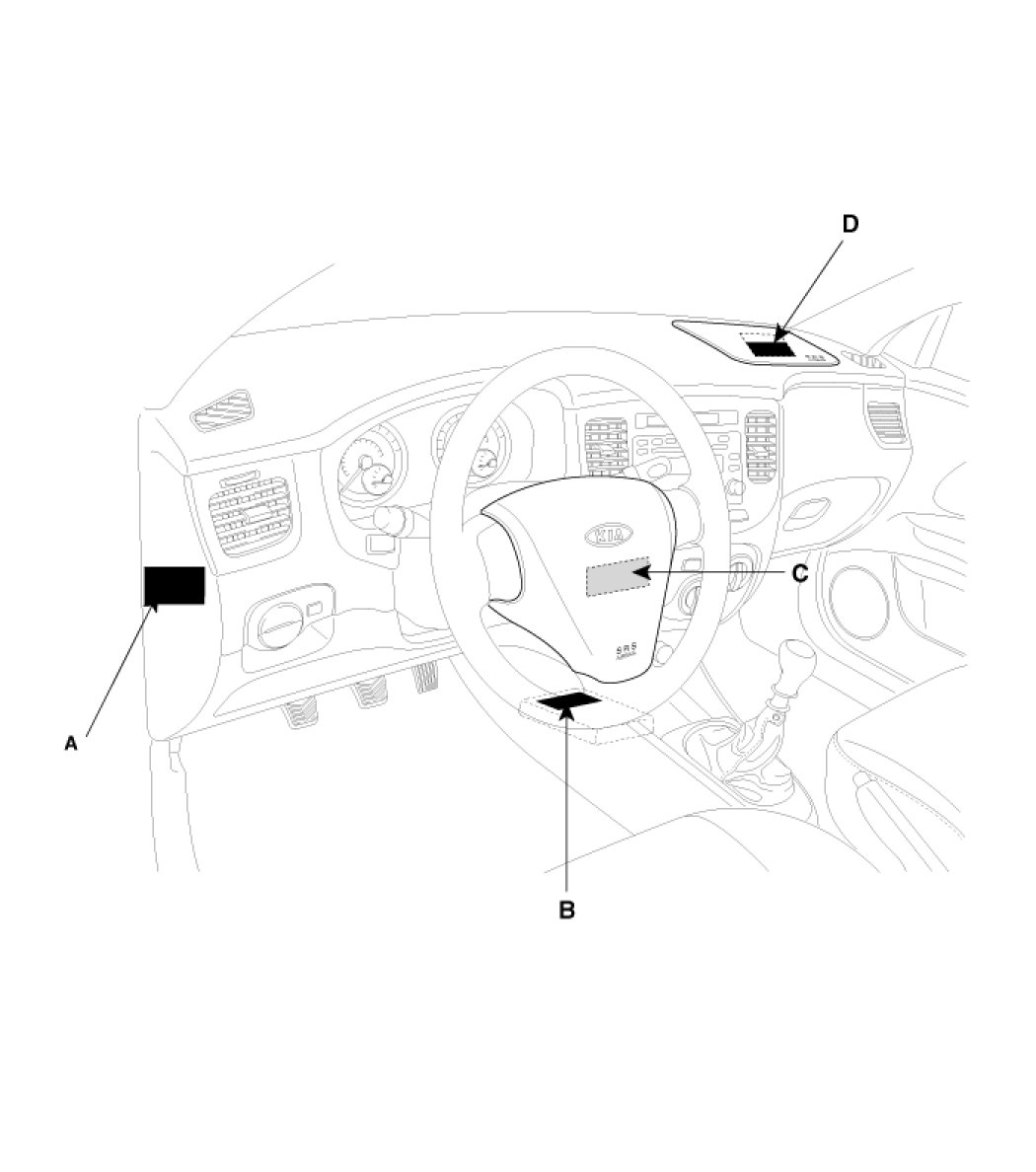

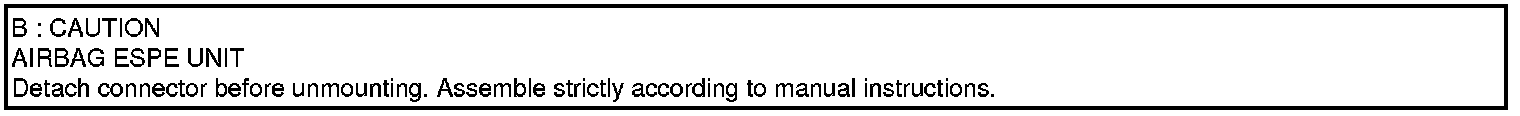

AIR BAG WARNING / CAUTION LABEL





AIR BAG WARNING / CAUTION LABEL (CONT'D)





AIR BAG WARNING / CAUTION LABEL (CONT'D)
