ECM




ENGINE CONTROL MODULE (ECM)

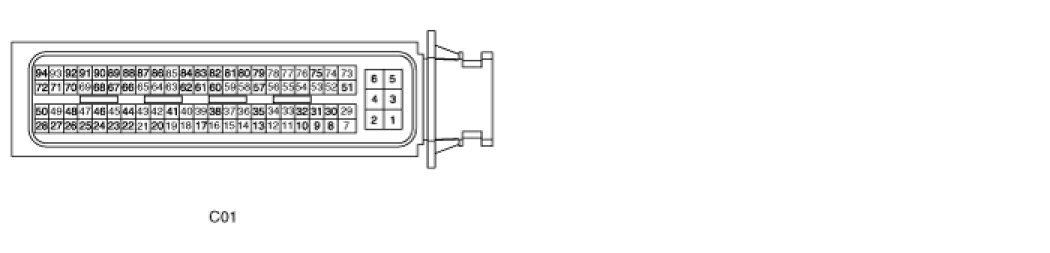

1. ECM HARNESS CONNECTOR (M/T)

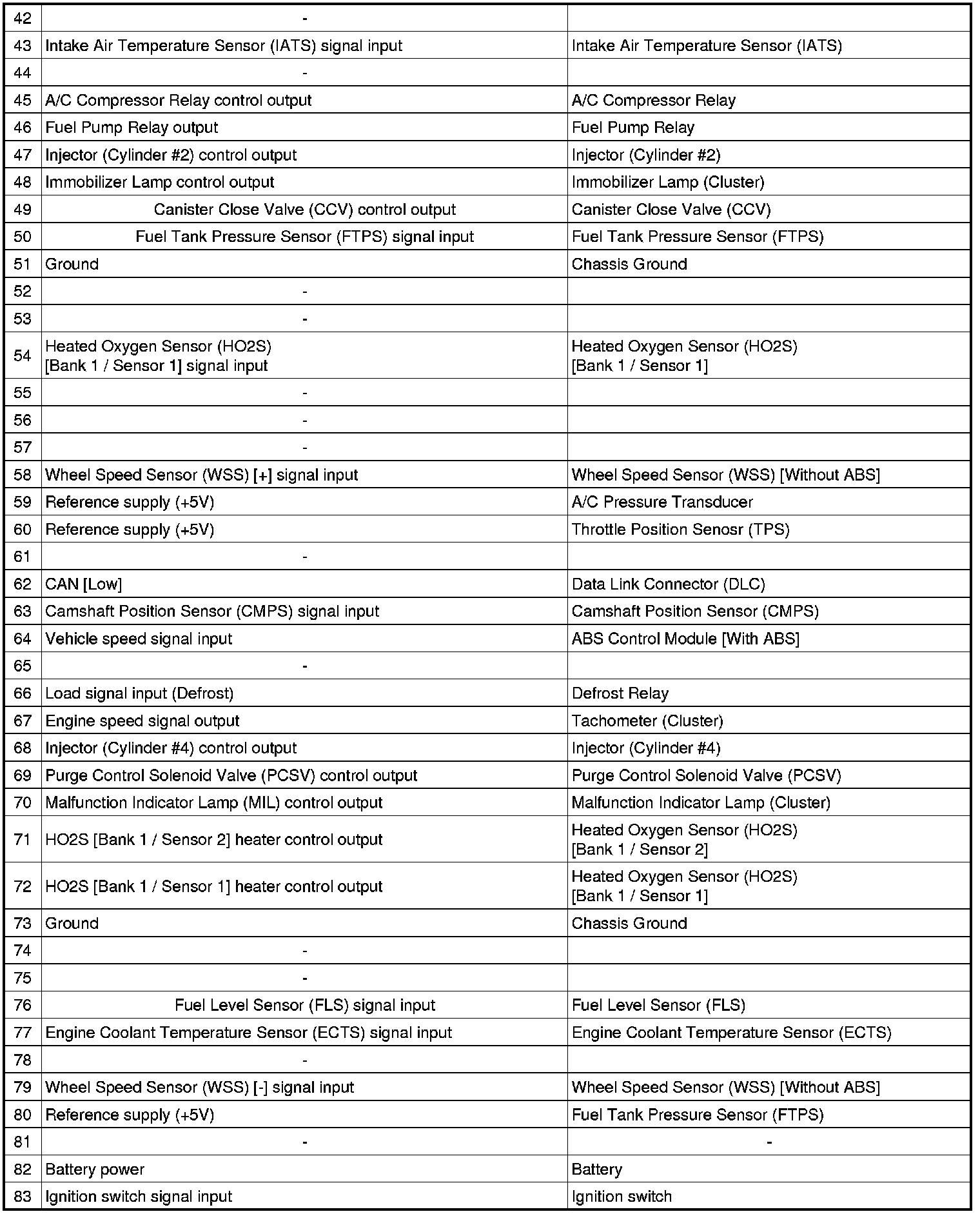

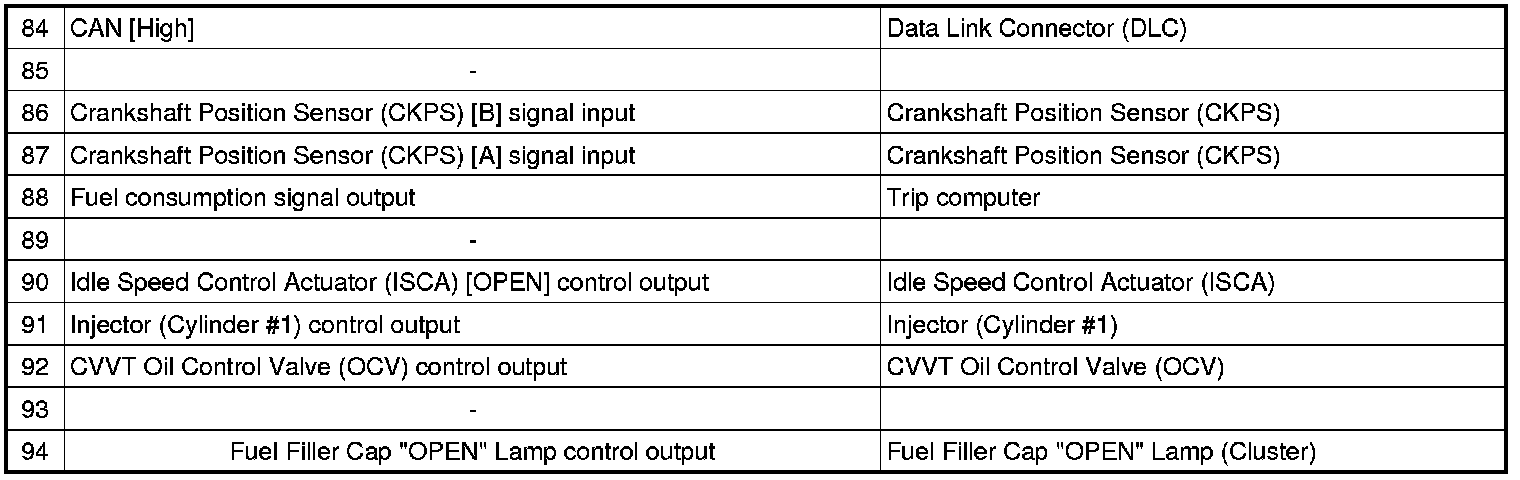

2. ECM TERMINAL FUNCTION (M/T)
CONNECTOR [C01]

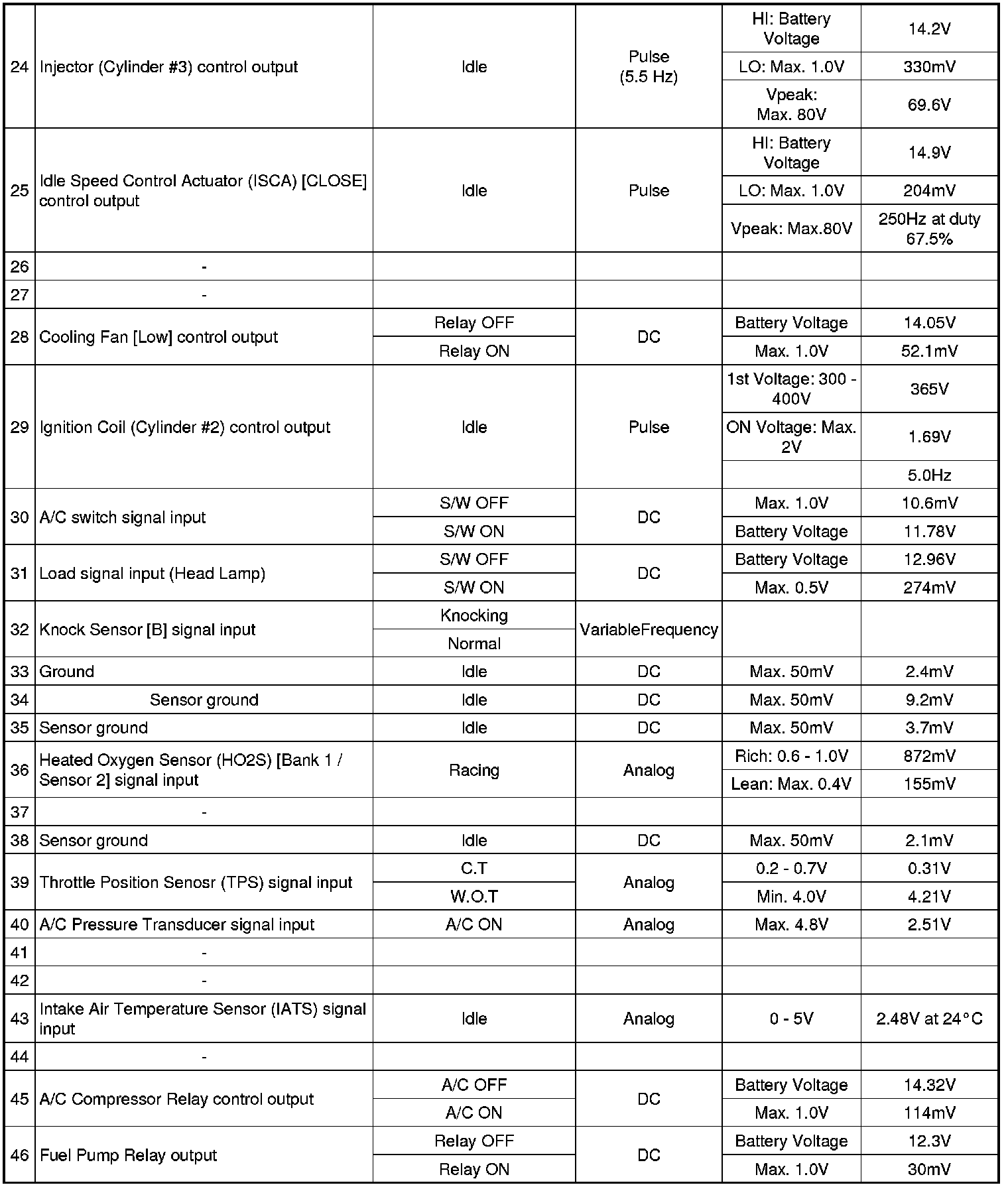

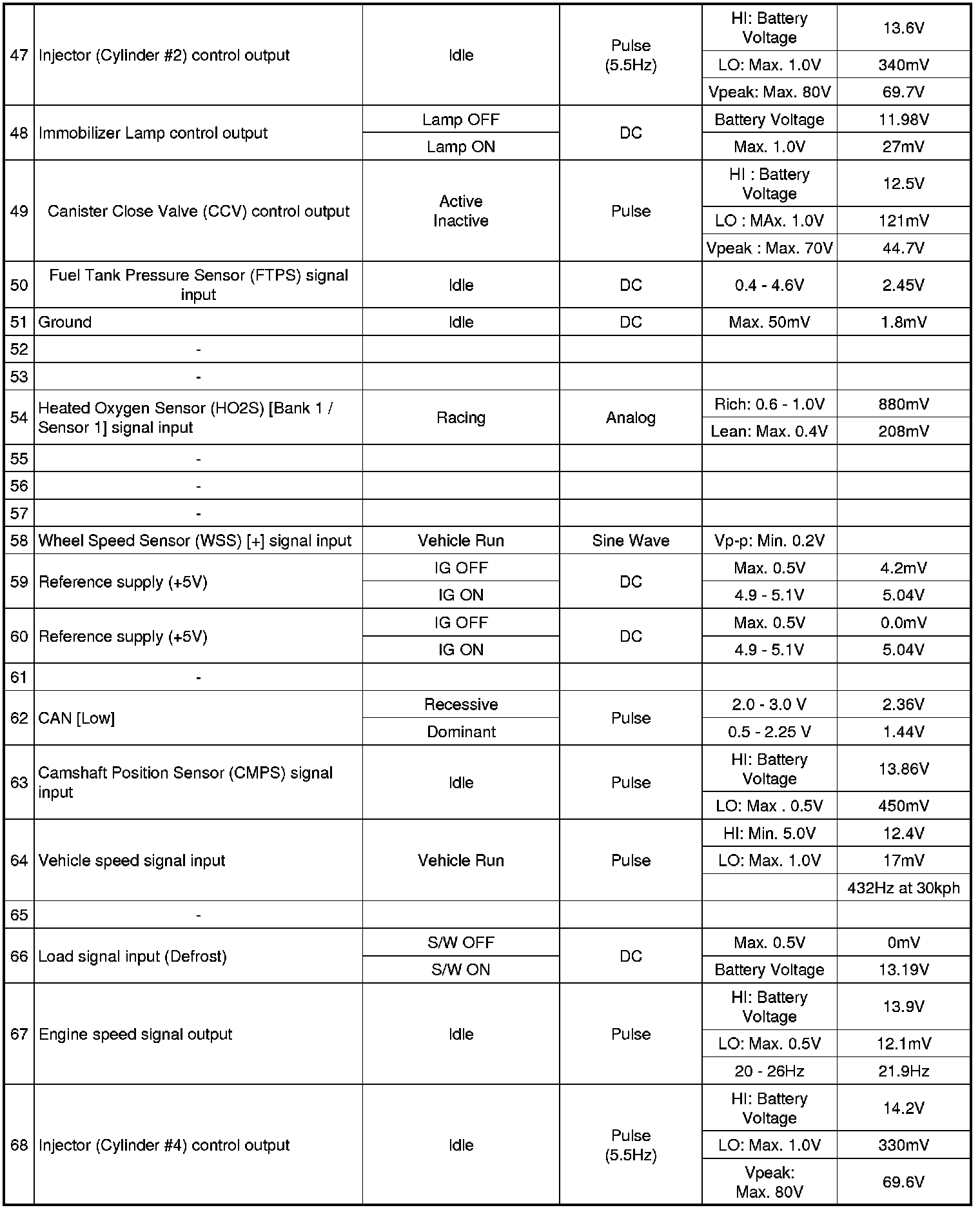

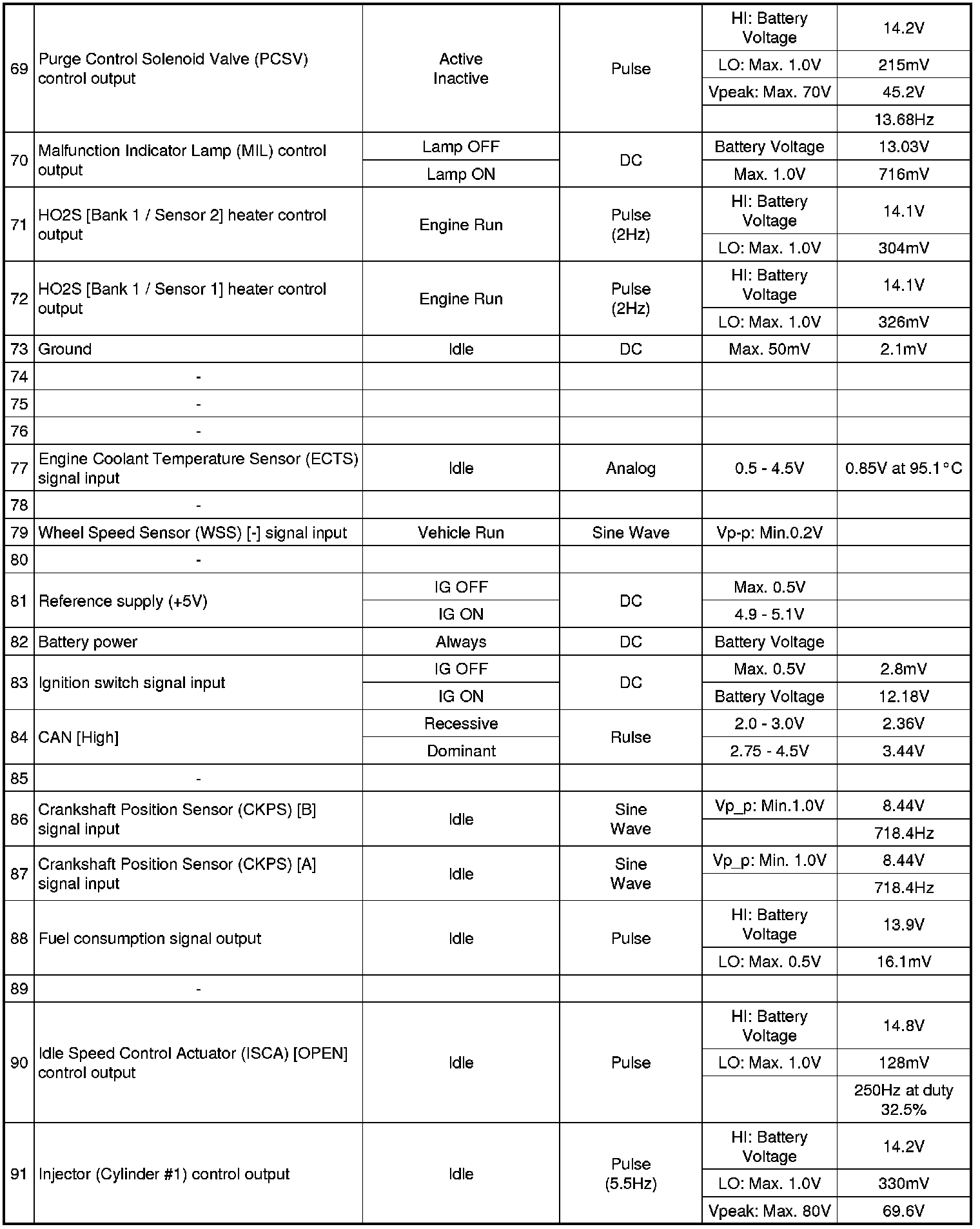

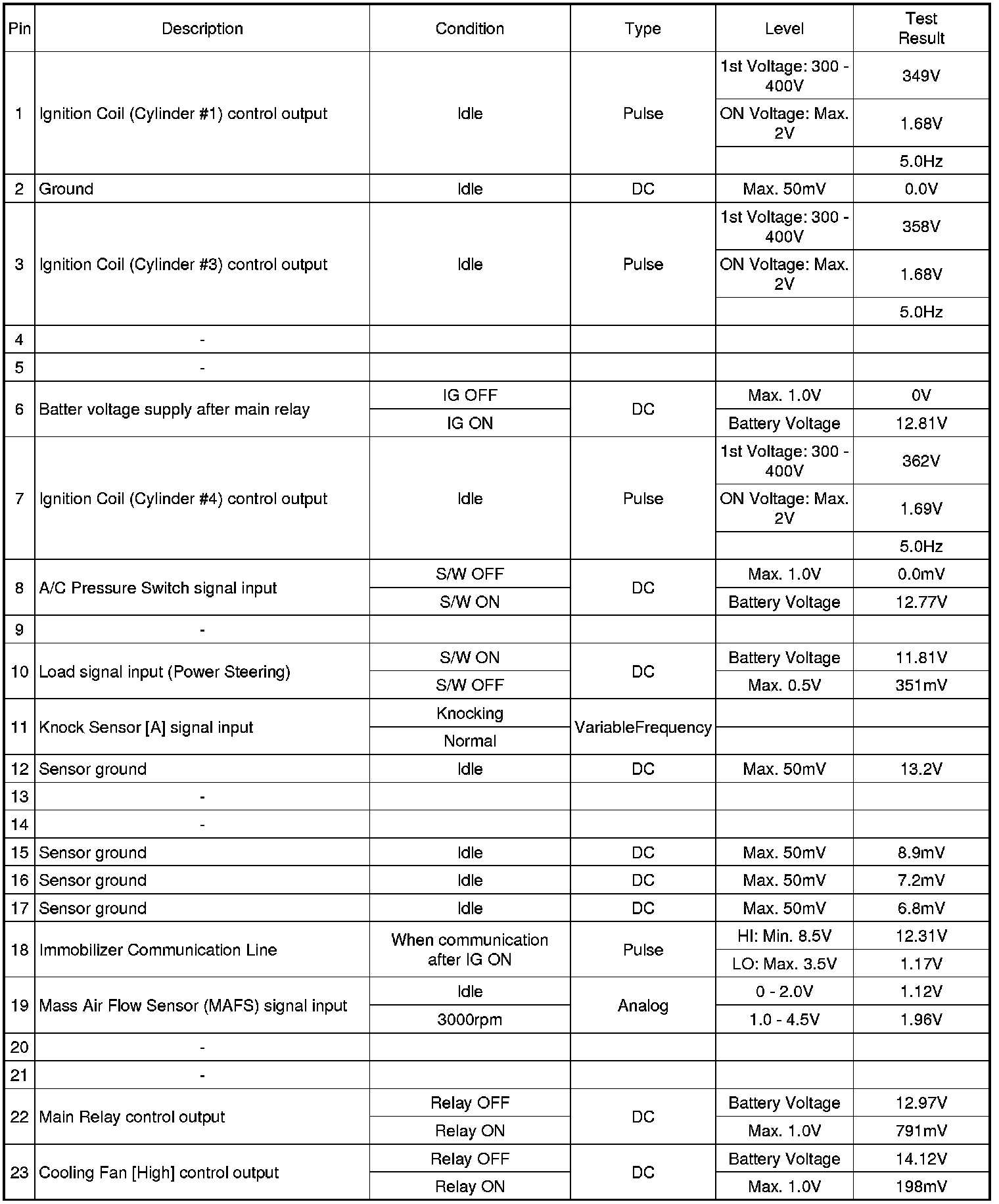

3. ECM HARNESS CONNECTOR (M/T)
CONNECTOR [C01]
