Headlamp: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

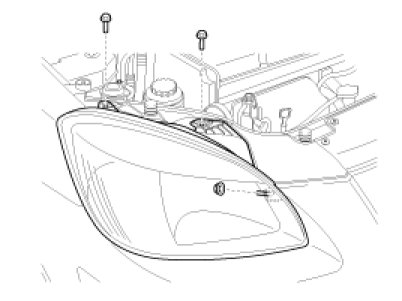

2. Loose the mounting bolts (2EA) and nut of head lamp.




3. Remove the head lamp assembly after disconnecting the lamp connectors.

NOTE:

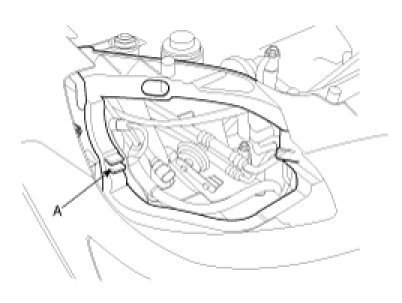

Take care that holding clip (A) is not to be damaged.




4. Installation is the reverse of removal.
