Muffler: Service and Repair

COMPONENT






REMOVAL

1. Remove the front muffler heat protector(A).

Tightening torque : 7.8 - 11.8N.m (0.8 - 1.2kgf.m, 5.8 - 8.7lb-ft)

2. Remove the front muffler(B).

Tightening torque : 29.4 - 39.2N.m (3.0 - 4.0kgf.m, 21.7 - 28.9lb-ft)

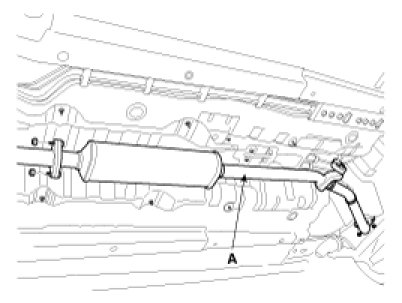

3. Remove the center muffler(A).

Tightening torque : 29.4 - 39.2N.m (3.0 - 4.0kgf.m, 21.7 - 28.9lb-ft)

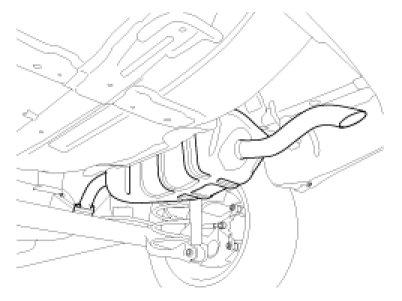

4. Remove the main muffler(A).

Tightening torque : 29.4 - 39.2N.m (3.0 - 4.0kgf.m, 21.7 - 28.9lb-ft)
