System Diagram

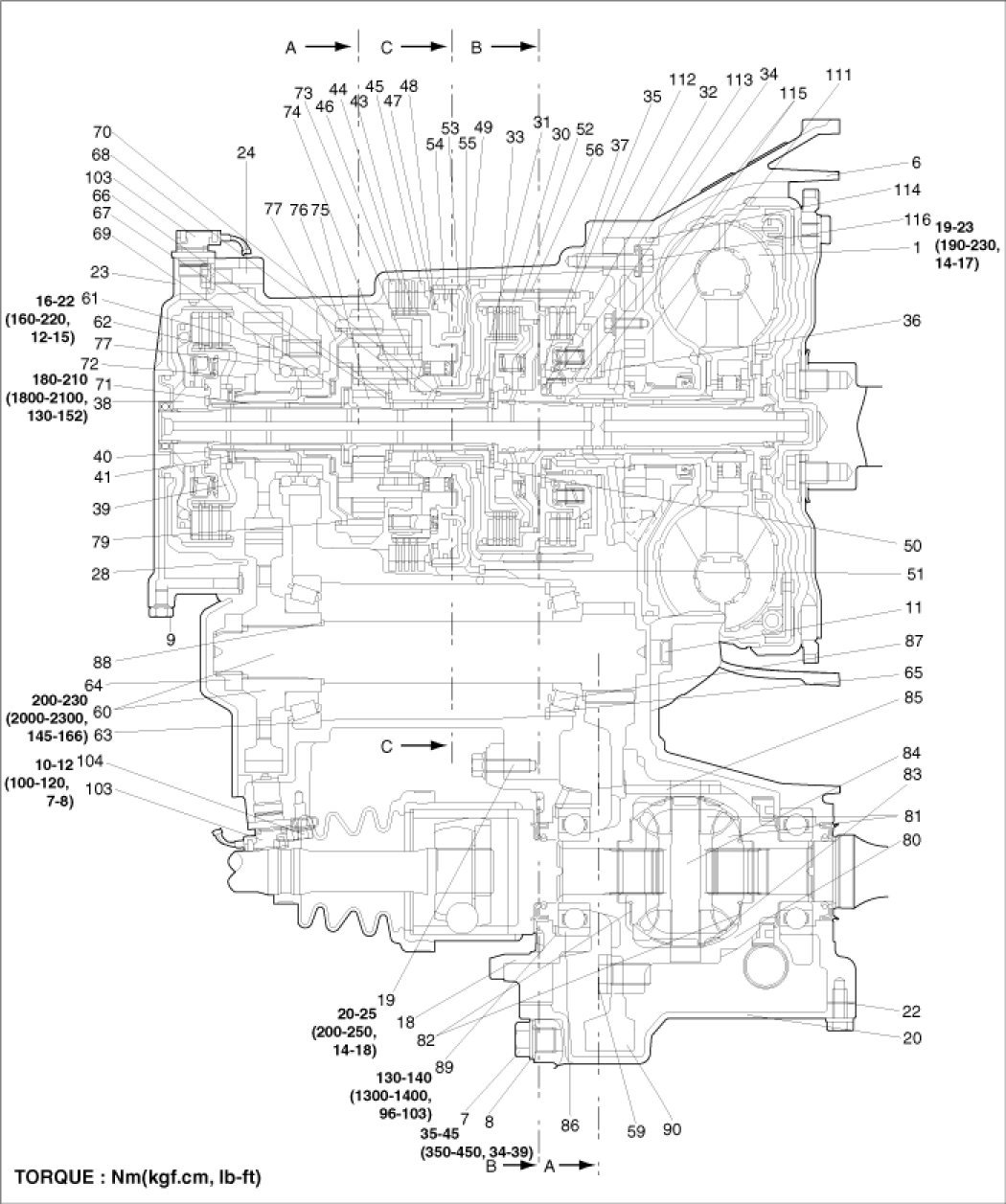

COMPONENT(1)

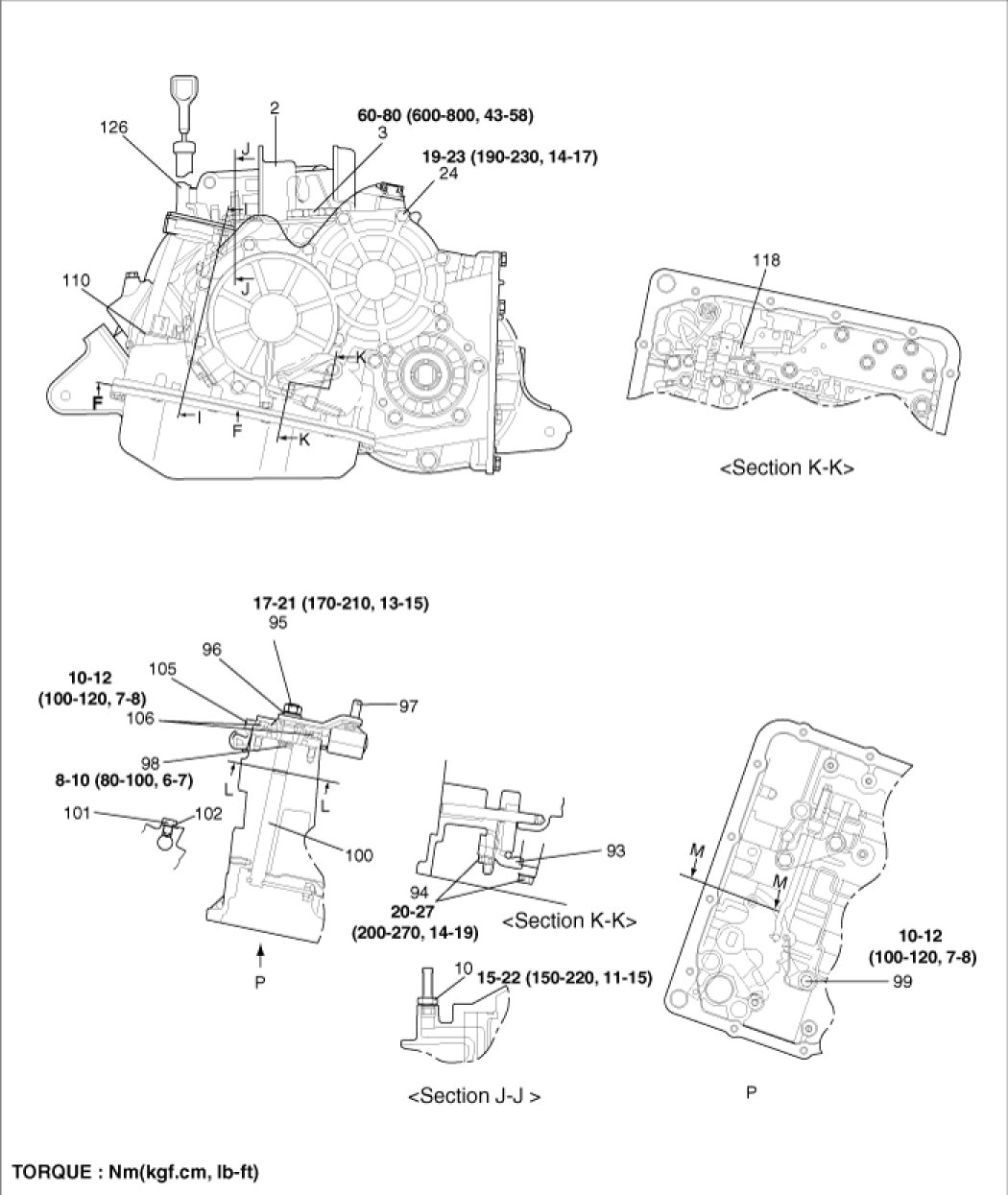

COMPONENT(2)

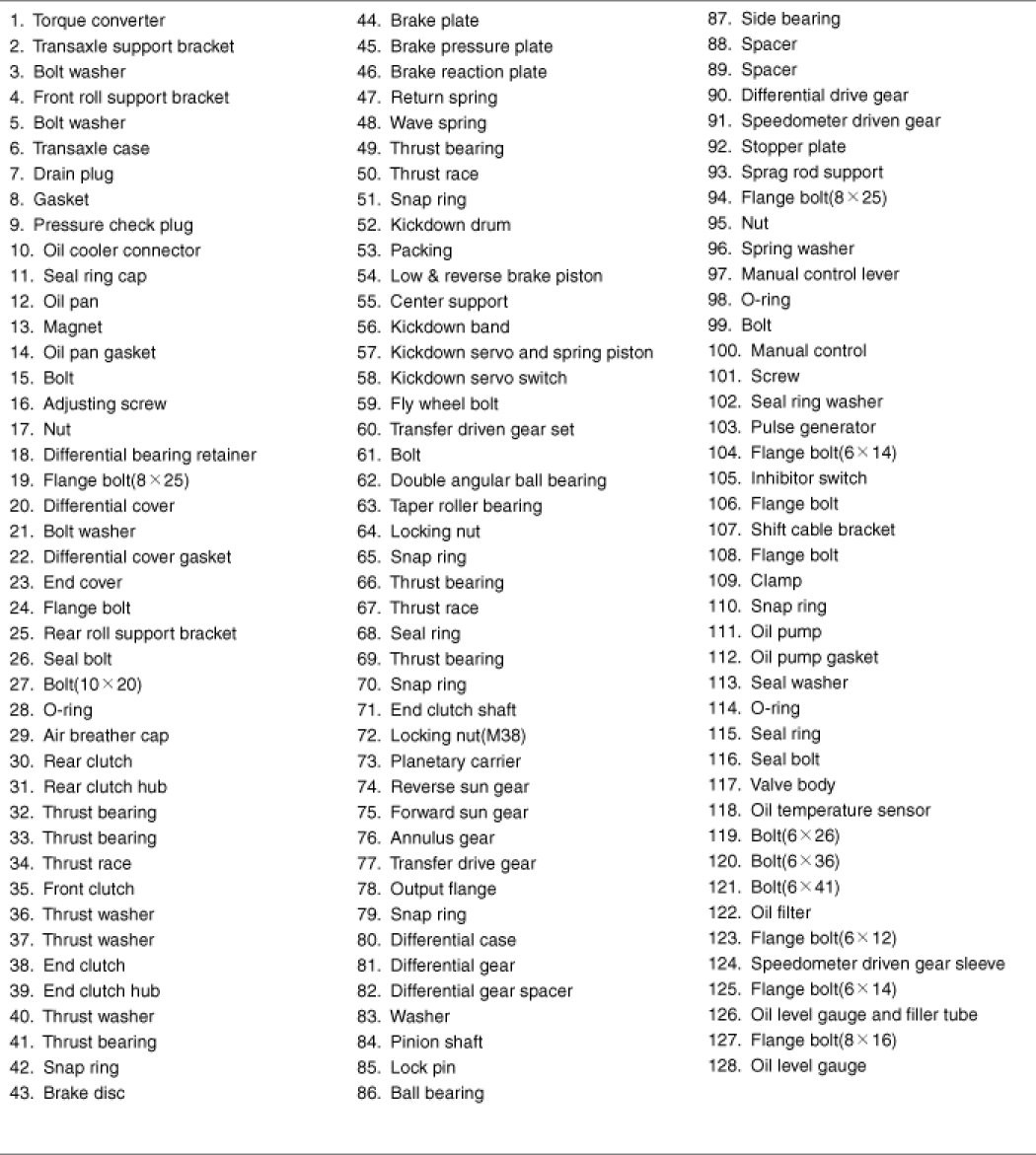

COMPONENT(3)

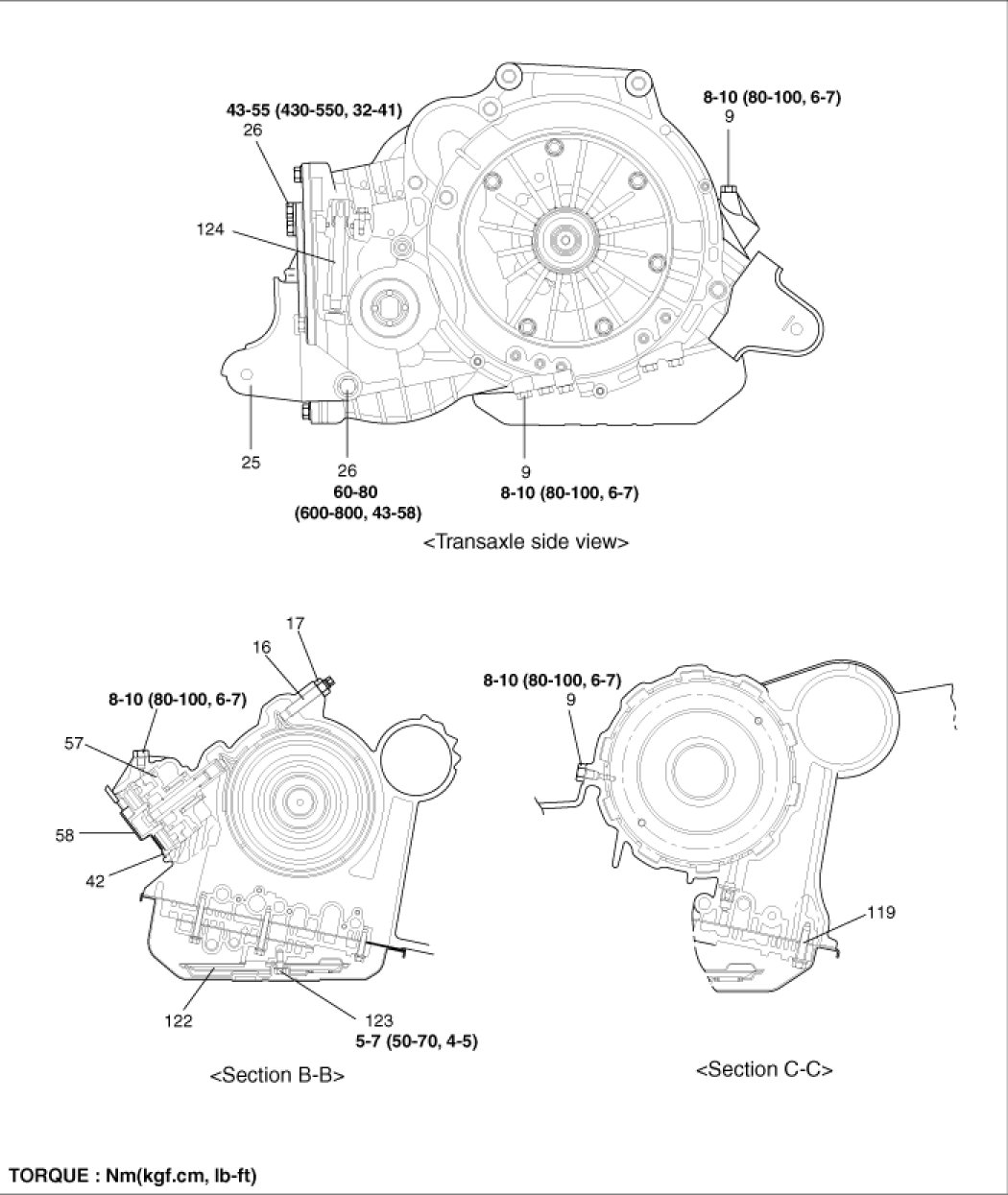

COMPONENT(4)





COMPONENT(5)





COMPONENT(6)
