Home >> Kia >> 2007 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Restraints and Safety Systems >> System Diagram

System Diagram

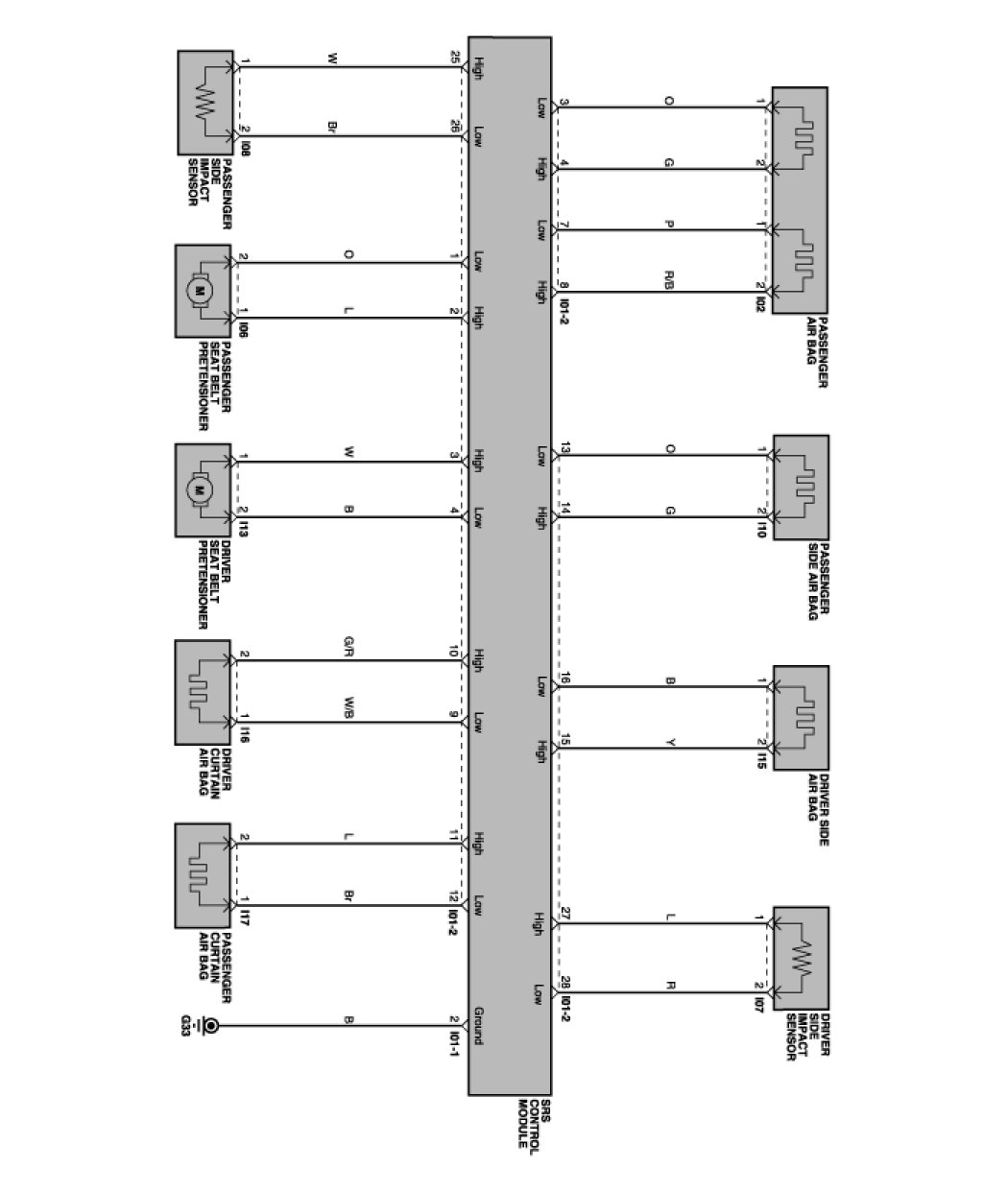

CIRCUIT DIAGRAM(1)

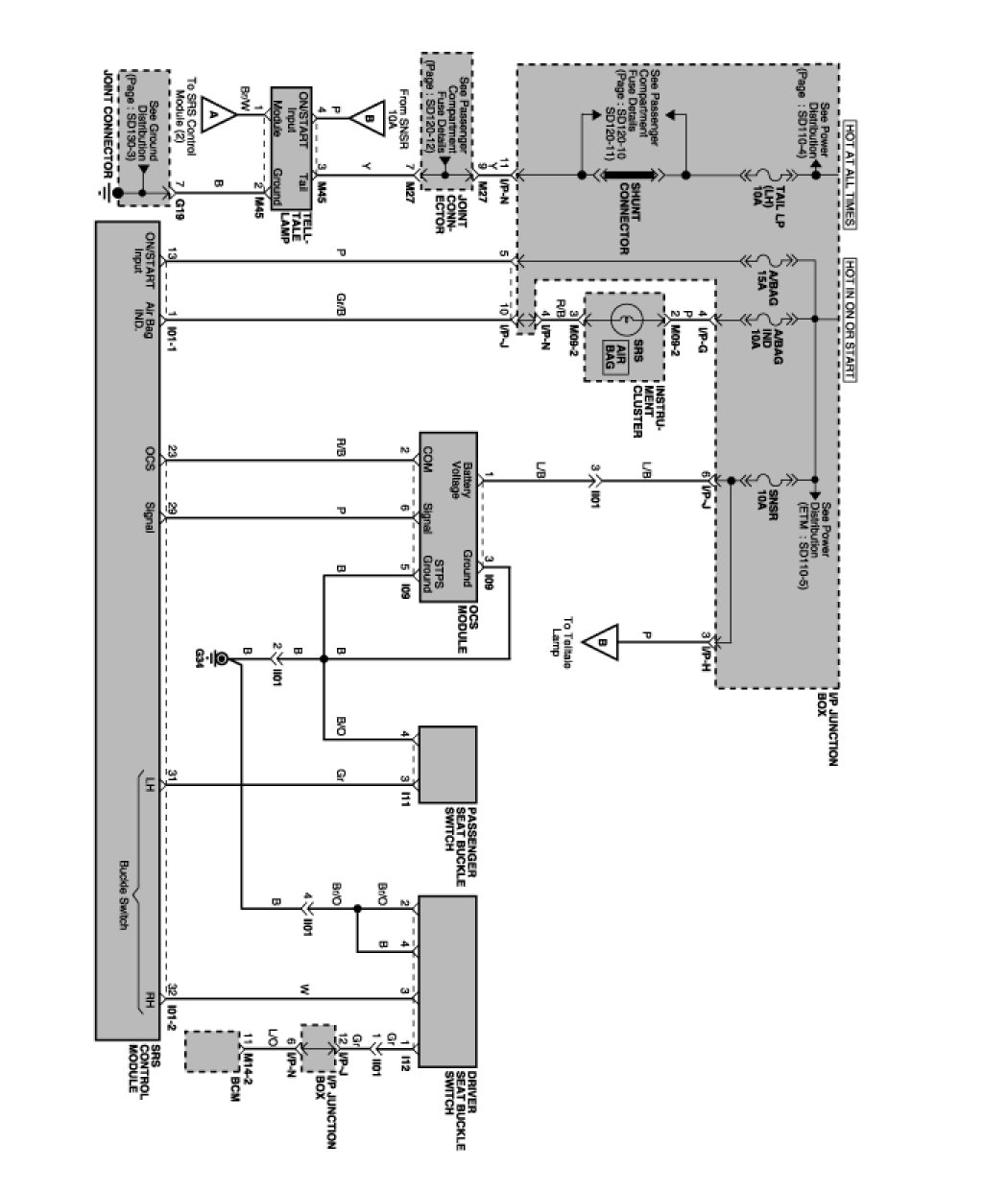

CIRCUIT DIAGRAM(2)

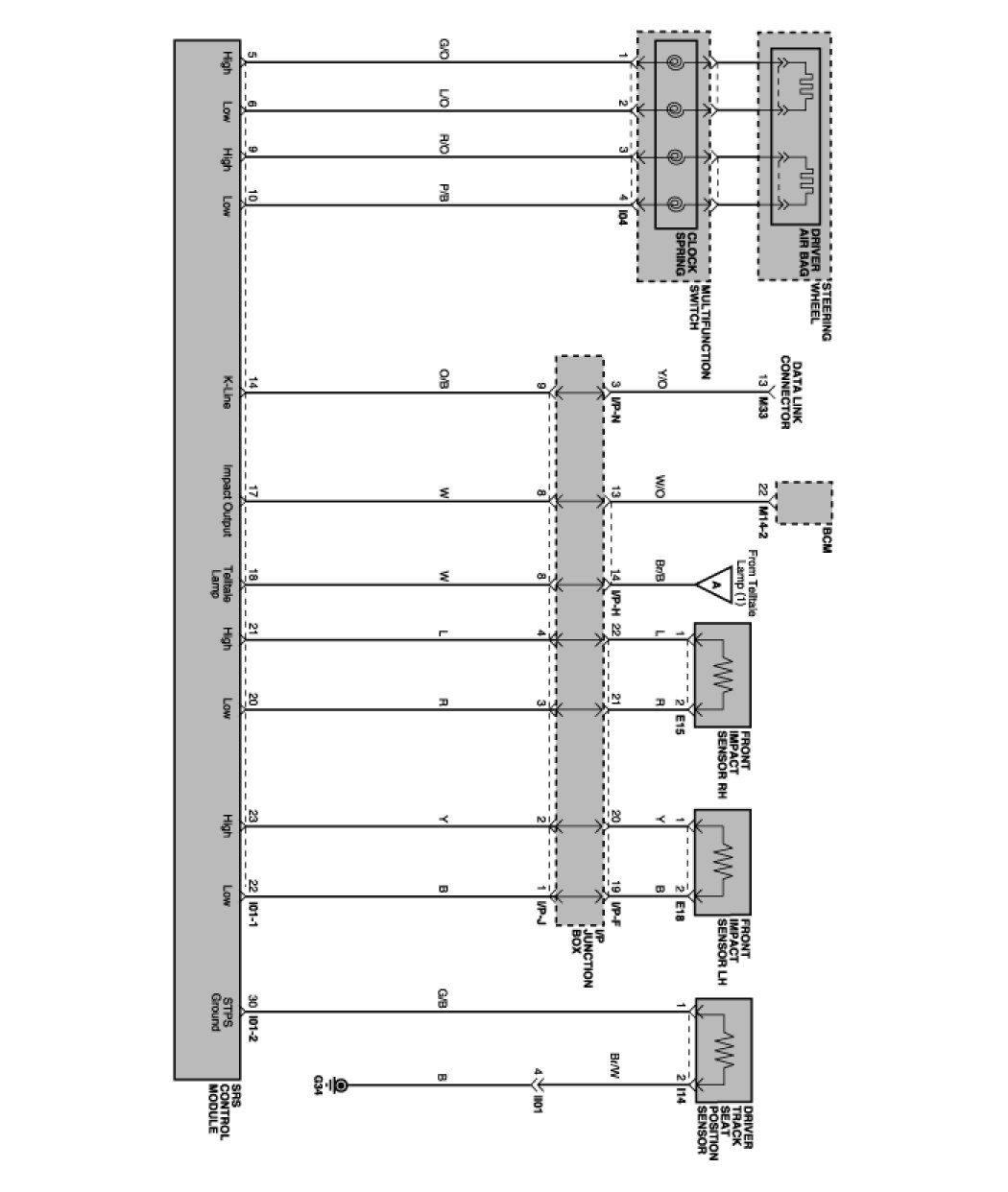

CIRCUIT DIAGRAM(3)
