Connector Views
>>
Radio/Stereo
Radio/Stereo
COMPONENT

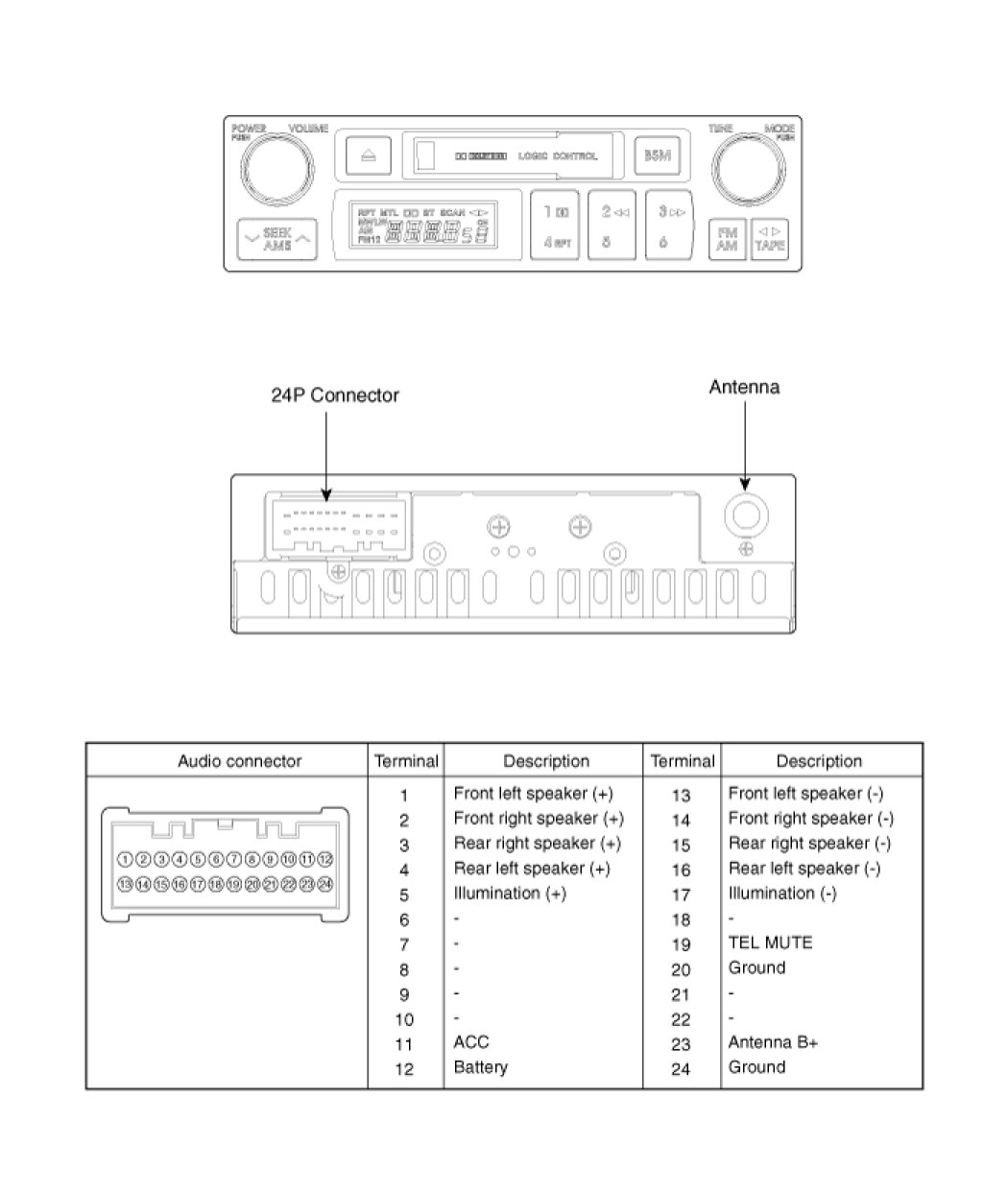

AM/FM/Cassette (M420)

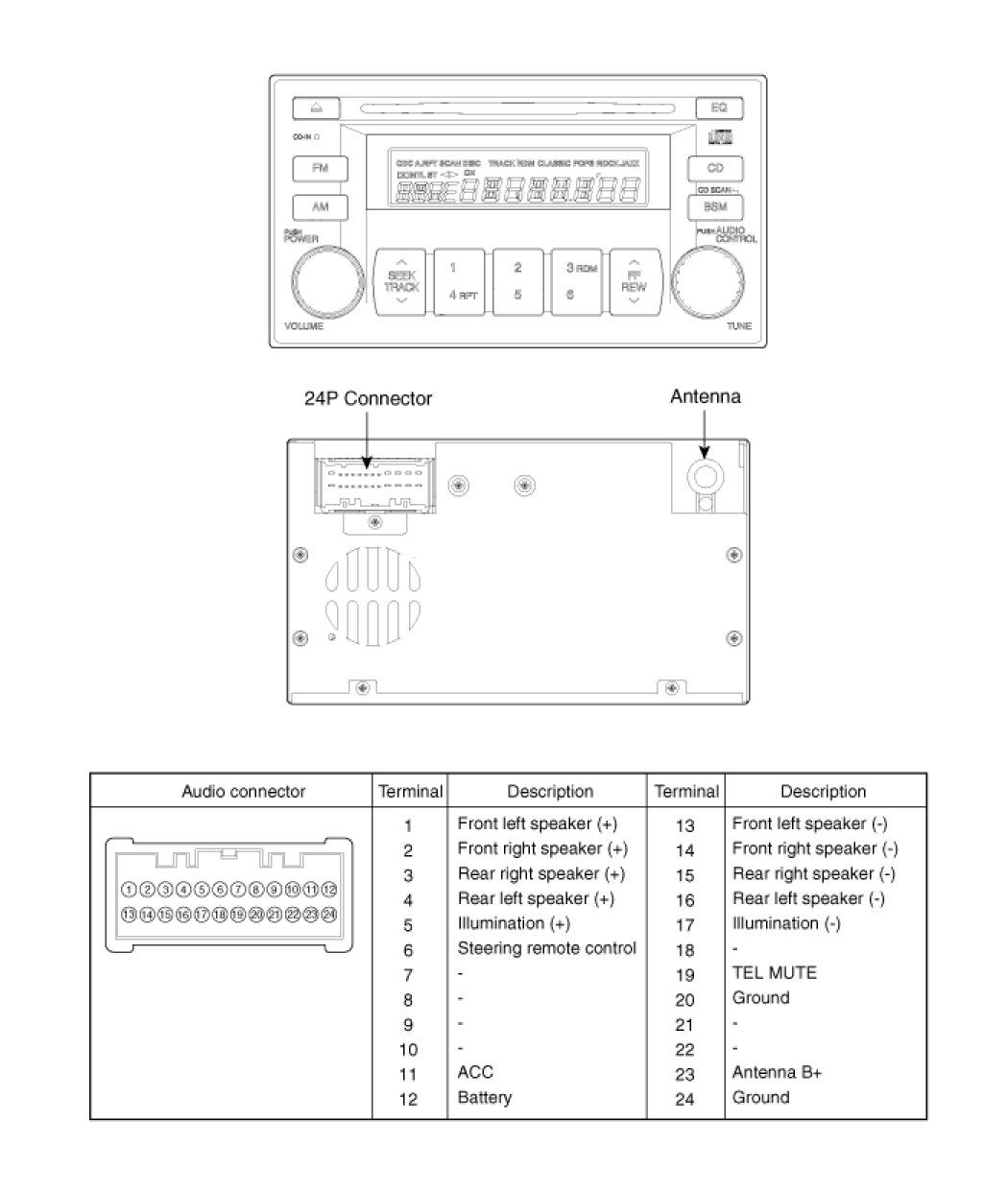

AM/FM/CD (M445)

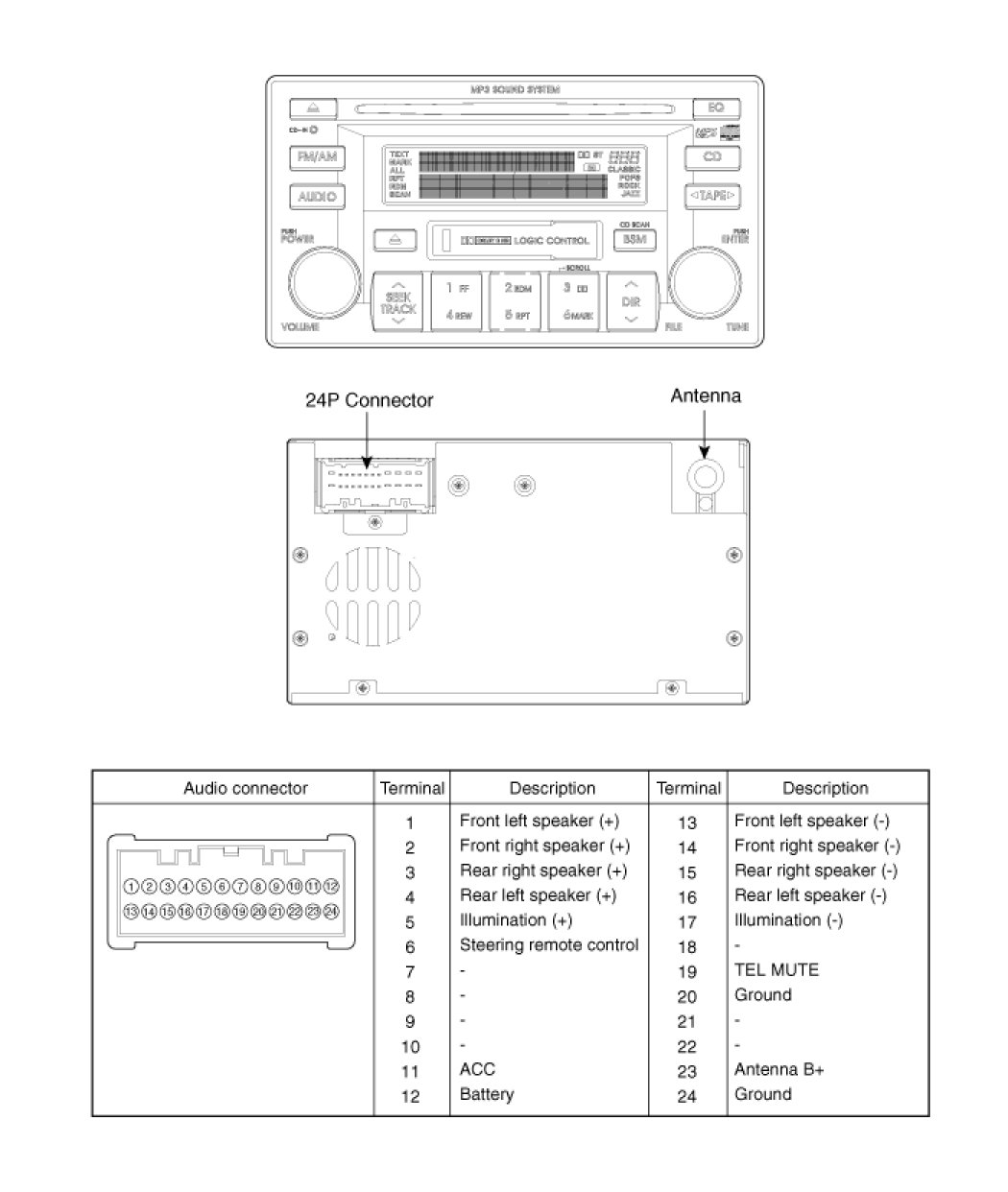

AM/FM/Cassette/MP3 (M455)
