Reassembly

REASSEMBLY

1. Apply genuine brake fluid to the rubber parts of the cylinder kit and grommets.
2. Carefully insert the springs and pistons in the proper direction.

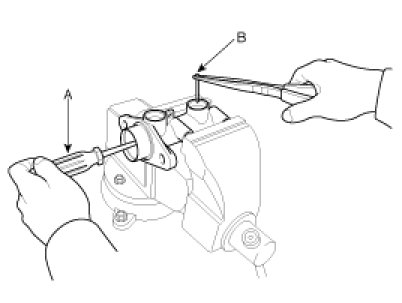

3. Press the piston with a screwdriver and install the cylinder pin.

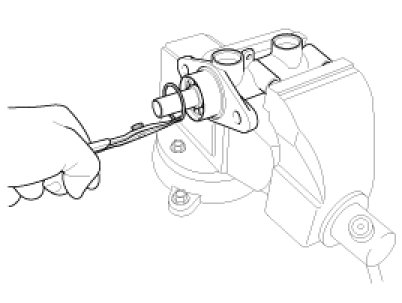

4. Press the piston with a screwdriver and install the retainer ring.




5. Install the proportioning valves (In case of CBS).
6. Mount two grommets.
7. Install the reservoir on the cylinder.
