Scan Tool Testing and Procedures

HI-SCAN (PRO) CHECK

1. Turn the ignition switch OFF.

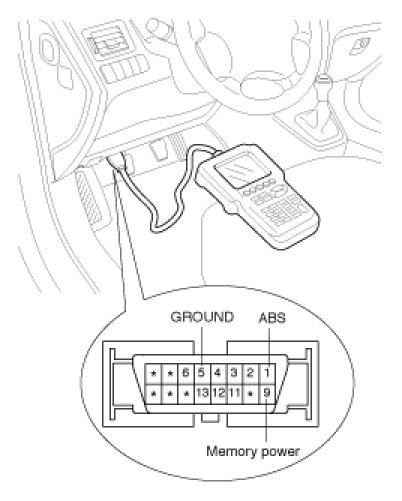

2. Connector the Hi-scan(pro) to the 16P data link connector located the driver's side kick panel.




3. Turn the ignition switch ON.
4. Check for diagnostic trouble using the Hi-scan(pro)
5. After completion trouble of the repair or correction of the problem, erase the stored fault codes the clear key on the Hi-scan(pro).
6. Disconnect the Hi-scan(pro) from the 16P data link connector.
